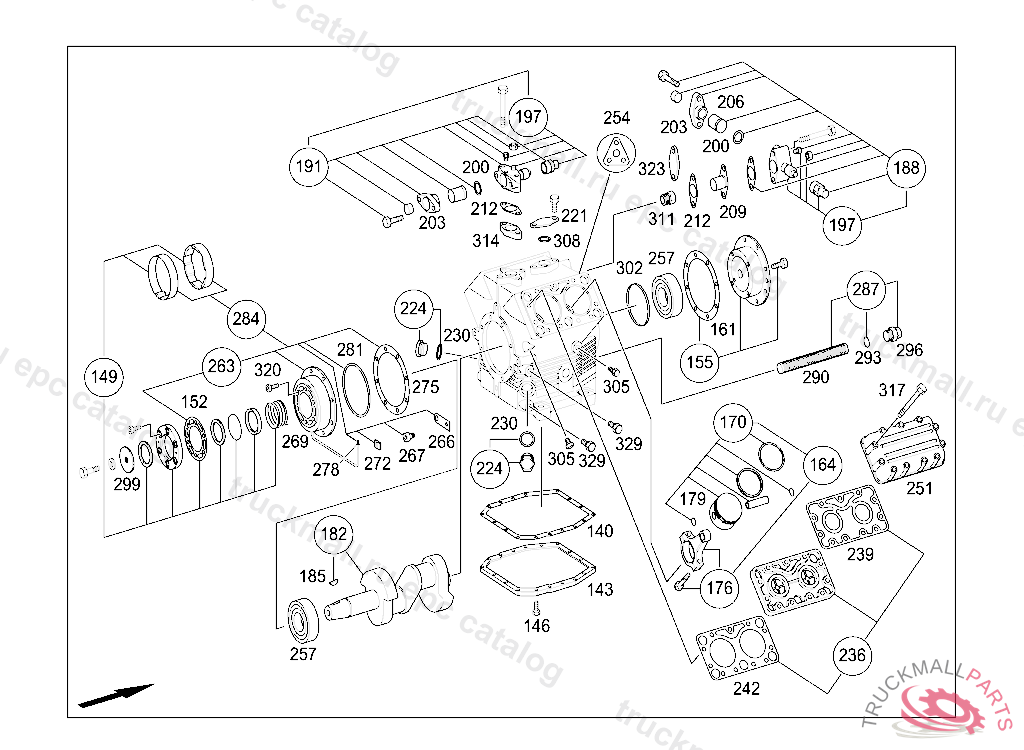

Поз.
Артикул
Описание
140
WEATHERSTRIP
143
PLATE
146
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
149
BEARING CAP REPAIR KIT
152
GASKET
155
OIL PUMP (PARTS KIT),OIL PUMP
161
GASKET
164
CONNECTING ROD REPAIR KIT FKX 40/655K
164
CONNECTING ROD55MM, TO A 629 830 94 60
164
CONNECTING ROD REPAIR KIT FKX 40/560K
170
PISTON DIA., 60 MM FKX 40/560K
170
PISTON DIA., 65 MM FKX 40/655K
170
PISTON ASSEMBLY KIT
176
CONNECTING ROD
179
LOCKFKX 40/655K
182
CRANKSHAFT
185
SPRING
188
VALVE PARTS KIT
191
VALVE PARTS KIT
197
VALVE
200
GASKET34X42 MM
203
FLANGE16MM
206
PIPE SOCKET
209
STRAINER ON SUCTION SIDE
212
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
221
FLANGE9MM, TO A 629 830 94 60
224
SIGHT GLASS22MM, TO A 629 830 94 60
224
SIGHT GLASS
230
SEAL RING
230
SEAL28.3X1.8MM
236
VALVE
239
GASKET
242
SEAL
251
COVER
254
GASKET KIT
257
CYLINDR. ROLLER BEARING
263
MOUNTING
266
HOSE BRACKET
267
SCREW
269
PLATE
272
CLAMP
275
GASKET FRONT
278
PLUG
281
SEAL RING101.19X3.53MM
284
SEAL RING
287
STRAINER
290
STRAINER
293
SEAL27X22X2MM
296
SCREW SRREW PLUG M22X1,5
299
WASHER CRANKSHAFT 50X12,5X8MM
302
TOLERANCE RING
305
SCREW SRREW PLUG 1/8"
308
SEAL RING
311
VALVE
314
INTERMEDIATE PIECE25MM
314
INTERMEDIATE PIECE46MM
314
INTERMEDIATE PIECE15MM
314
INTERMEDIATE PIECE
314
INTERMEDIATE PIECE WITH SCREW FITTING 34MM
317
HEXAGON HEAD BOLTM10X70
320
SCREW
323
FLANGE15MM
329
FASTENER SRREW PLUG 1/4"
999
BEARING DIA., 31X33,8MM
999
INTERMEDIATE PIECE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
999
GUIDE SIGNDEA SE 55
999
GUIDE SIGNR134A
999
OIL SCRAPER RINGFKX 40/560K
999
TAPER-FACED RINGFKX 40/560K
999
PISTON PIN15X10X50MM
999
PISTON RINGFKX 40/655K
999
PISTON RINGFKX 40/655K
999
SEAL42X36X1,5MM
