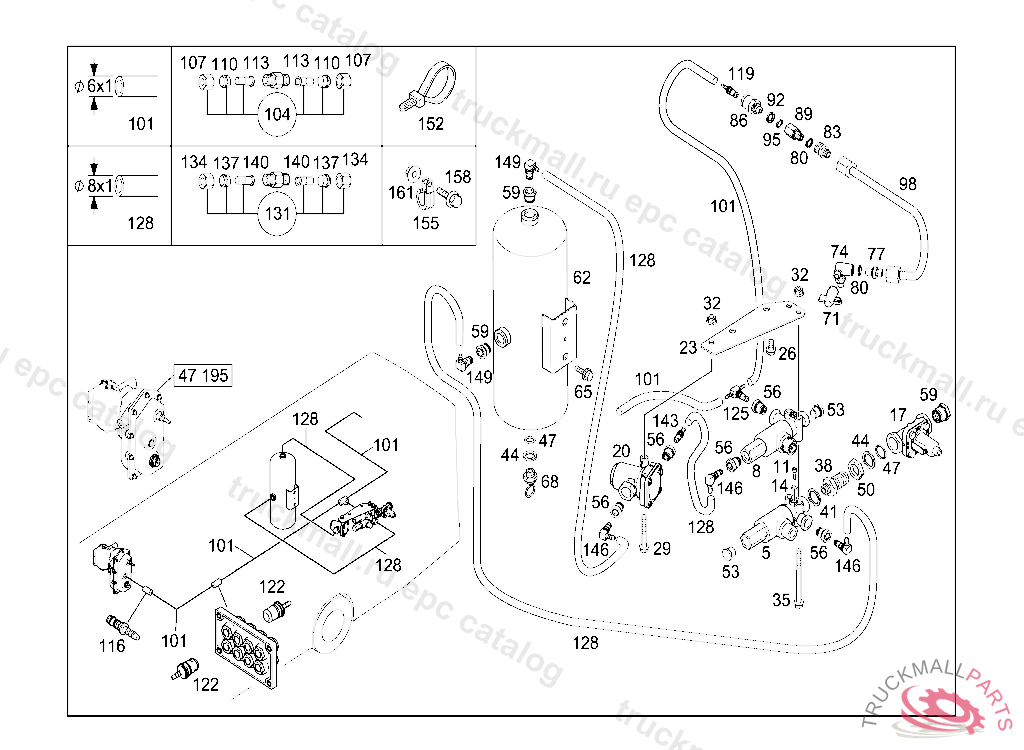

Поз.
Артикул
Описание
5
SOLENOID VALVE 3/2-WAY VALVE ADBLUE
8
VALVE (3/2-WAY SOLENOID VALVE)
11
SCREWM6X12 TX30
14
SEAL RINGBOSCH
17
VALVE OVERFLOW VALVE ADBLUE, 7.03,V 207570V 208680
20
VALVE PRESSURE LIMIT VALVE
23
BRACKET
26
SCREWM 10X20
29
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
29
SCREW , Replaced By: N910143008009
32
NUT HORN TO BRACKET M8
32
NUT ENGINE MOUNTING M8
35
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
35
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
38
FITTING TWO-WAY VALVE
41
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "22"
44
THRUST RING CHECK VALVE TO AIR RESERVOIR
47
O-RING CHECK VALVE TO AIR RESERVOIR
50
NUT FITTING TO BRACKET,230274
50
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
53
SCREW PLUG SOLENOID VALVE M16
56
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
59
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
59
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
62
RESERVOIR
65
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
68
VALVE DRAIN VALVE
71
TEST CONNECTION
74
L-FITTINGM12X1.5/M10X1.5
77
FITTING
80
SEAL RING 3/2-WAY VALVE
83
FITTINGM12X1.5/M12X1.5
86
FITTING LEVEL ADJUSTMENT VALVE,CONNECTION: "2" NG8/M12X1.5, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
89
CHECK VALVE
92
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
98
LINE
101
PLASTIC PIPE RISING PIPE 4X6 MM
104
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
107
UNION NUT
110
SEAL CONE
113
SLEEVE LEAK LINE
116
CONNECTION PIECE , Replaced By: A0049971489
116
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M10, 4MM, SDF
119
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
119
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
122
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 4MM, VOSS 232
125
COUPLING. T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM / 4 MM, VOSS 232
125
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM / 4MM, VOSS 232
128
PLASTIC PIPE AERATION, ORDER BY THE METER
131
FITTING (PARTS KIT),LINE RUPTURE
134
UNION NUT LINE CONNECTION
137
GLAND LINE CONNECTION
140
SLEEVE LINE CONNECTION
143
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 6MM, VOSS 232, Replaced By: A0049976989
143
COUPLING CONNECTOR. CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 6MM, VOSS 232
146
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232
146
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
149
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
152
CABLE STRAP7.8X465
155
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
155
CLAMP6/15, Replaced By: N000000007509
155
CLAMP LINE MOUNTING 15-18 MM,V 207570
155
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
158
HEXAGON HEAD BOLT COVERING TO CAB
158
SCREW BRACKET AND CLAMP M6X20
161
NUT BRACKET TO FIRE WALL
161
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
