Mercedes A0040941804 - Фильтр воздушный

TRAVEGO 15 SHD 2 - ACHSER 632.010

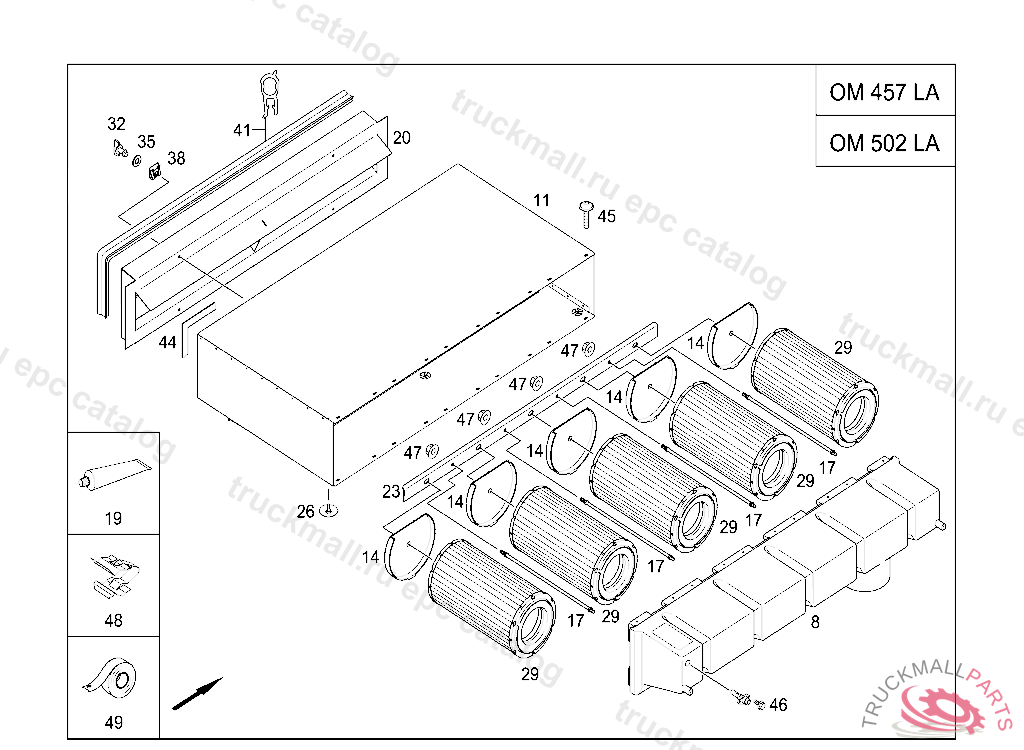

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 3

Поз.
Артикул
Описание
8
A6295201101
AIR INTAKE PIPE
8
A6295201501
AIR INTAKE PIPE
11
A6295200502
AIR INTAKE CASE
14
A6295280310
COVER
17
A6295200015
ROD
19
A0069896471
ADHESIVELOCTITE262
20
A6295200004
SCOOP
23
A6295240612
STIFFENING
26
A0000943865
PLUG (DUST DISCHARGE VALVE)
29
A0040941804
FILTER ELEMENT
29
A0040944604
FILTER ELEMENT
32
A0009846136
PIVOT
35
A0029949835
SNAP RING , Replaced By: A0039908740
35
A0039908740
WASHER6 MM
38
A0005250041
ANGLE RETAINING CLAMP, Replaced By: A0019884442
38
A0019884442
FASTENER ,A 144703 AUSTRALIA UP TO END OF MODELYEAR 93
41
A0007570174
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
A0089873425
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
45
A0019846329
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
46
N910105006002
HEXAGON HEAD BOLT
47
N913023008003
NUT HORN TO BRACKET M8
48
A0009956914
BRACKET
49
A0009894584
INSULATING TAPE40MMX500MM
