Mercedes A6298322915 - HEIZROHR D15 CA.11

TRAVEGO 15 SHD 2 - ACHSER 632.010

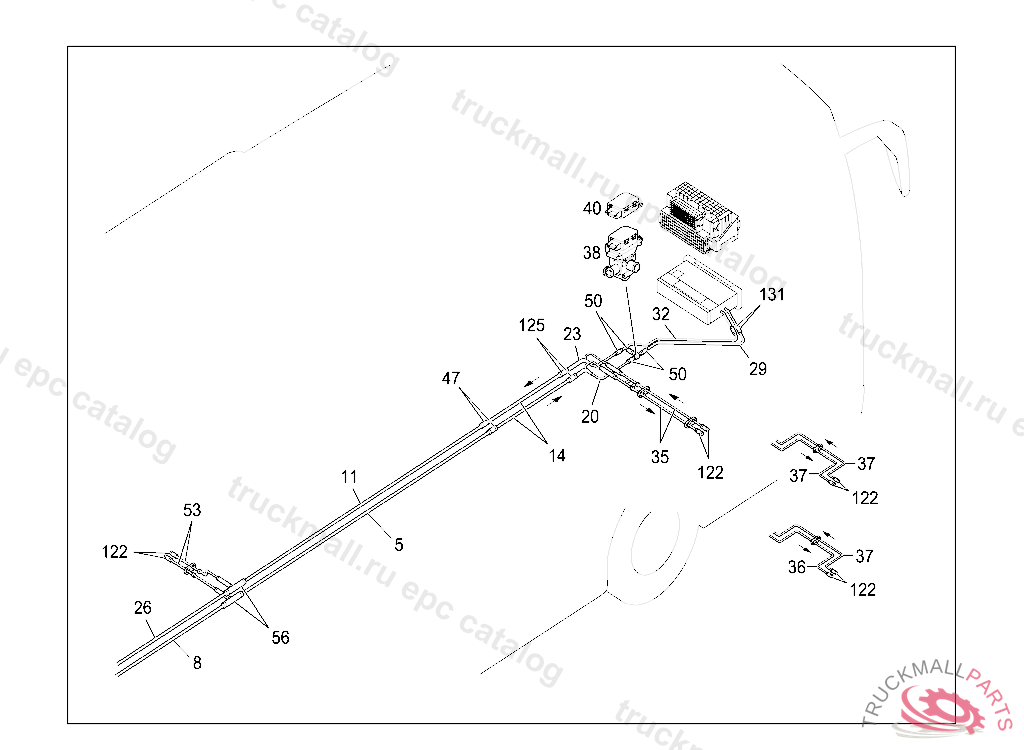

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 10

Поз.
Артикул
Описание
5
A6298324815
HEATING PIPE2630LG
8
A6298327115
HEATING PIPED38/1120MM
11
A6298328315
HEATING PIPED38/2690MM
14
A6278324915
PIPE LINED38/1220MM
14
A6328307615
HEATER PIPE38X1220MM
20
A6328303115
PIPE LINE FEED
23
A6328303215
PIPE LINE RETURN
26
A6298325415
HEATING PIPE1000LG
29
A6328322521
PIPE LINE4165MM
29
A6328326821
HEATER PIPE FEED 22X1210MM
32
A6328303315
PIPE LINE , Replaced By: A6328308415
32
A6328308415
HEATER PIPE
35
A6298322915
HEATING PIPE1100LG
37
A6328322617
PIPE LINE1150MM
38
A0048301684
VALVE THREE-WAY VALVE
38
A0038305784
VALVE THREE-WAY VALVE, Replaced By: A0048301684
40
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
40
A0068207842
SERVO-D.C. W.GEARBOX
47
N000000004993
HOSE38X50X130MM
47
N000000001107
HOSE38X50X130MM, Replaced By: N000000004993
50
N900271022000
HOSE
50
N000000004976
HOSE22X31X100MM
53
A6328325415
HEATING PIPED15/L1000MM
56
A6298320056
DISTRIBUTORD38/15/38-248MM
122
N000000004960
HOSE15X24X100
122
A0249974082
RADIATOR HOSE. HOSED14,5X23,5X100MM, Replaced By: N000000004960
125
N900271038019
HOSE LINE CONNECTION 38X50X100 MM
125
N000000004992
HOSE ,D 209702
131
A0008329523
MOLDED HOSE 90-DEGREE ARC D22
999
A0008302652
COVERINGTO A 000 832 20 72
999
A0135450326
PIN BUSHING HOUSING PLUG CONNECTION HEATING WATER VALVE MIRAKEL 83.10M05746
