Mercedes A6297540159 - BETAETIGUNGSSTANGE R

TRAVEGO 15 SHD 2 - ACHSER 632.010

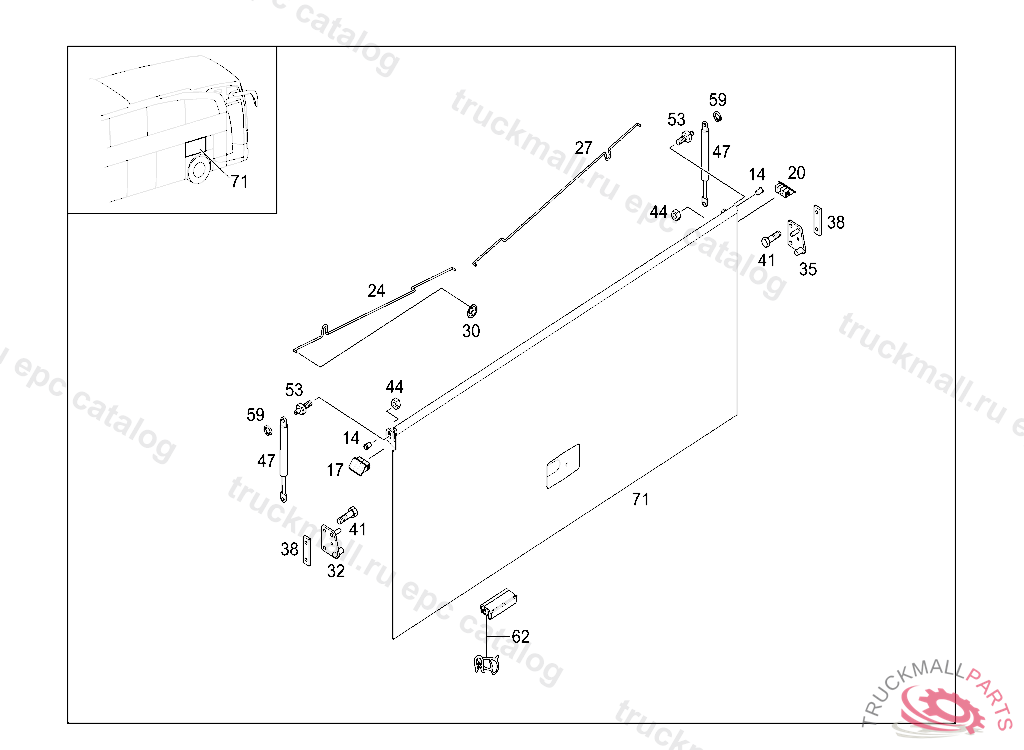

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 6

Поз.
Артикул
Описание
14
A0009926205
BUSHING
17
A0009878945
LOCKING CAP
20
A0009879045
LOCKING CAP
24
A6297540059
LINKAGEL413MM
27
A6297540159
LINKAGEL464MM
30
A0049945945
LOCK
32
A0007580003
STRIKER
35
A0007580103
STRIKER
38
A6297550111
PLATE
41
N910105008041
SCREW , Replaced By: N910143008000
44
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
47
A6297501536
SPRING200 N
53
A6297540120
MOUNTING
53
A6297540020
MOUNTING
59
N000471008000
LOCK RING
62
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
A6297509505
FLAP
