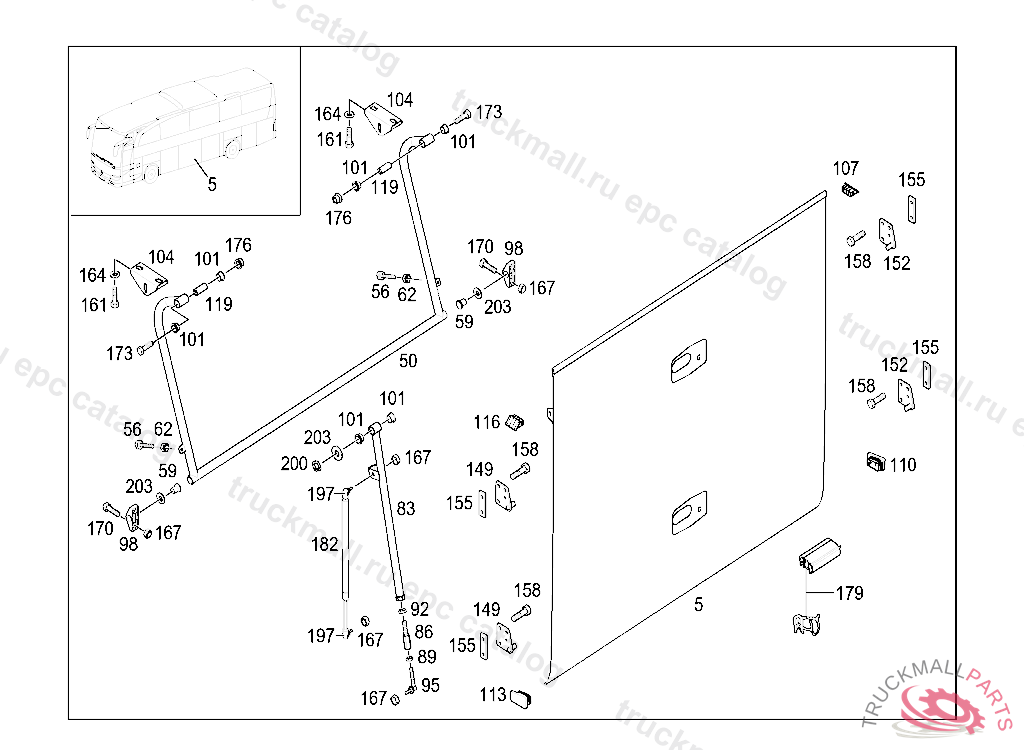

Поз.
Артикул
Описание
5
FLAP STROKE FLAP L1730MM
50
ARM FRAMEWORK
56
RUBBER BUFFERM8X30
59
PIN
62
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
83
SUPPORTING ARM
83
ARM , Replaced By: A6297508556
86
SCREW
89
NUT
92
HEXAGON NUTM 12 X 1.5 LH
95
ARTICULATION PIECE
98
BRACKET
101
SLEEVE
104
BRACKET
107
LOCKING CAP
110
LOCKING CAP
113
LOCKING CAP
116
LOCKING CAP
119
SLEEVE
149
STRIKER
152
STRIKER
155
PLATE
158
SCREW , Replaced By: N910143008000
161
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
WASHER
167
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
170
SCREW , Replaced By: N910143008002
173
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
176
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
179
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
179
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
182
SPRING LESS BALL PIVOT 1050 N
197
JOINT BALL HEAD
200
LOCK RING , 385.068,069 ON VEHICLES WITH DB CAB ONLY 385.019 FOR USE WITH SHORT MERCEDES-BENZ CAB
203
WASHER
