Mercedes A0005018082 - KUEHLW.SCHLAUCH

IBC FAHRGESTELL 2-ACHSER 634.410

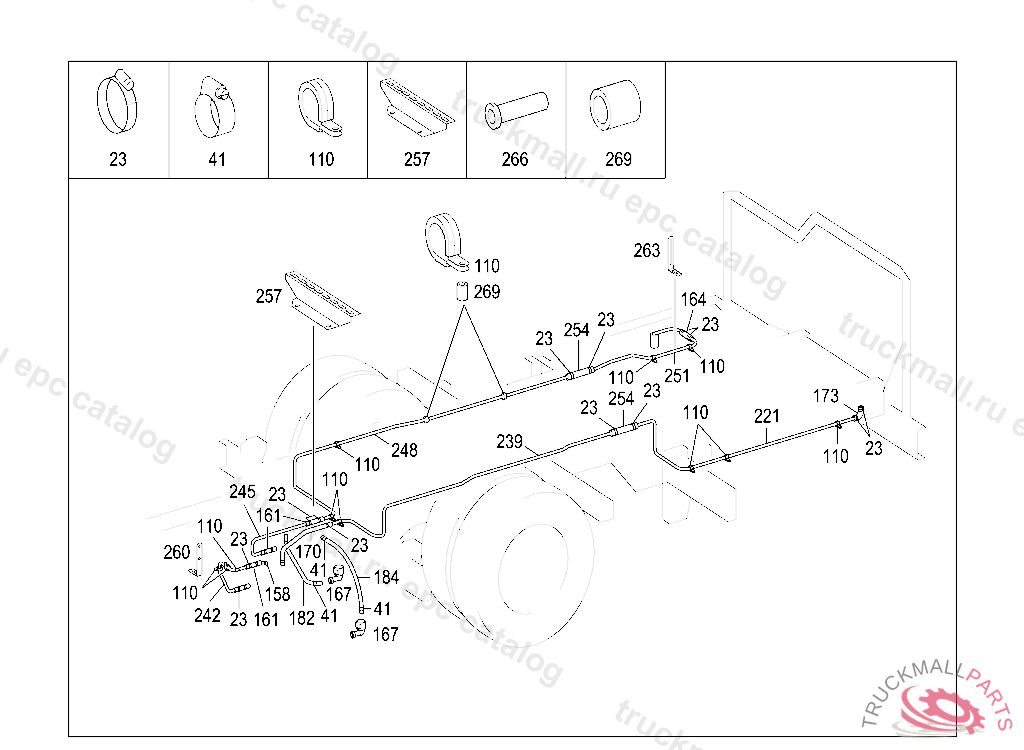

47 FUEL SYSTEM - 195 UREA CONTAINER IL. 10

Поз.
Артикул
Описание
23
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
23
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
23
N000000003530
CLAMP
23
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
A0009958710
CLAMP HOSE TO FITTING 11 - 20 MM
41
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
110
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
110
N916016015202
CLAMP LINE MOUNTING
158
A0059972889
CONNECTOR12-90GRAD
161
N000000004959
HOSE15X24X80MM, TO BE ADAPTED DURING ASSEMBLY
164
N000000004960
HOSE15X24X100
167
A0049977589
PLUG CONNECTOR HEATING WATER CONNECTION 90 GRAD, TO 000 140 02 78
170
N000000004961
HOSE15X24X150MM
170
N000000004964
HOSE15X24X480, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2009
173
A0009872537
MOLDED HOSE 90-DEGREE ARC D15MM
182
N000000004929
HOSE10X19X370
184
N000000004933
HOSE
221
A6348322315
239
A6348323715
242
A6348300363
245
A6348300463
248
A6348323815
251
A6348323915
254
A0005018082
257
A6344750317
260
A6293270140
BRACKET
263
A6295280240
BRACKET
266
A0001530353
SPACER SLEEVE. SPACER TUBE VALVE TO CRANKCASE
269
A0009912440
SPACER BUSH
269
A0003270353
SPACER SLEEVE
