Mercedes A0014904814 - LU REDUKTIONSKATALYS

CBC - FAHRGESTELL 2-ACHSER 634.420

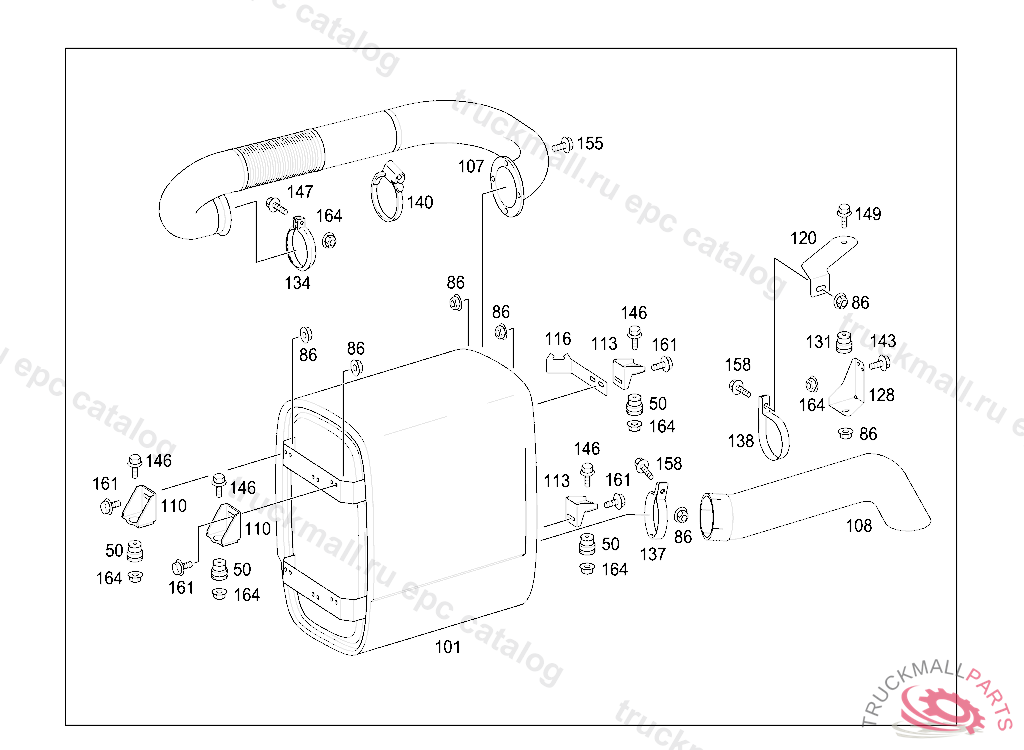

49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 1

Поз.
Артикул
Описание
50
A0009980246
INSULATION
50
A0009980846
DASHPOT
86
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
101
A0014904814
CATALYST
101
A0004907714
CATALYST
107
A6344900810
107
A6344901210
108
A6344920404
110
A6344900440
113
A6344900540
116
A6344921741
120
A6344923241
120
A6344921841
128
A6344922841
128
A6344921941
131
A0032371012
BUFFER
134
A6219970090
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
137
A6554920140
CLAMP , Replaced By: N071555124501
138
A6294920040
CLAMP PRE-MUFFLER TO MAIN MUFFLER
140
A0059970690
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
143
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
146
N910105008039
SCREW , Replaced By: N910143008002
147
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
149
N910105010040
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
155
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
158
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
161
N910105010012
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
164
N913023008003
NUT HORN TO BRACKET M8
