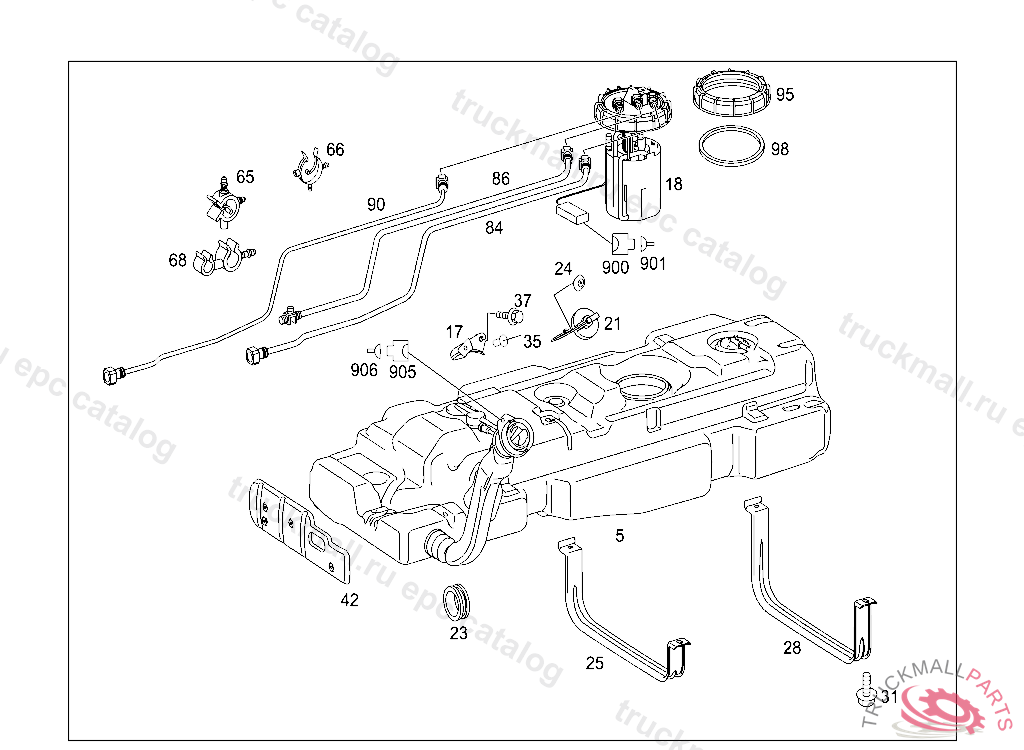

Поз.
Артикул
Описание
5
FUEL TANK
5
FUEL TANK
5
FUEL TANK
5
FUEL TANK
17
BRACKET FILLER NECK
18
FUEL DELIVERY MODULE
18
DELIVERY UNIT
18
DELIVERY UNIT ,801215720110121
18
FUEL DELIVERY MODULE
18
DELIVERY UNIT
18
FUEL DELIVERY MODULE , Replaced By: A6394701794
18
FUEL DELIVERY MODULE , Replaced By: A6394701694
18
FUEL DELIVERY MODULE
18
DELIVERY UNIT
18
FUEL DELIVERY MODULE
21
FILLER CAP
21
FUEL FILLER CAP , Replaced By: A0004704605
21
FILLER CAP , 36132320070621
21
FILLER CAP ,802286920120329
23
GROMMET ,D 314239
24
EXPANSION RIVET. RIVET
25
TENSIONING STRAP SHORT
28
TENSIONING STRAP LONG
31
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
31
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
35
RIVET
37
HEXAGON HEAD BOLT MOUNTING PARTS M5X25
42
PROTECTIVE PLATE
65
CLAMP. EXTENDABLE SPACER BREATHER LINE
66
HOSE BRACKET FEED LINE AND RETURN LINE 23-30 MM
68
LINE HOLDER
84
LINE DIESEL FEED LINE, 19478620051104
84
LINE FEED LINE
84
FUEL FEED LINE DIESEL FEED LINE, 09898720041008, Replaced By: A6394707664, +001A6394764701
86
LINE RETURN LINE
86
LINE DIESEL RETURN LINE
90
LINE ADDITIONAL HEATER
95
UNION NUT DELIVERY UNIT
98
SEAL RING DELIVERY UNIT
900
CLUTCH. PLUG SOCKET CHARGING AIR,202740
900
PIN BUSHING HOUSING. PLUG 4-POLE
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
901
GASKET
901
GASKET ALTERNATOR 5.2 MM,G2
901
CONTACT SPRING. PLUG SOCKET1,0-2,5
905
INSULATING SLEEVETO 000 546 43 40
906
CONTACT SPRING1.5-2.5 MM2
906
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
