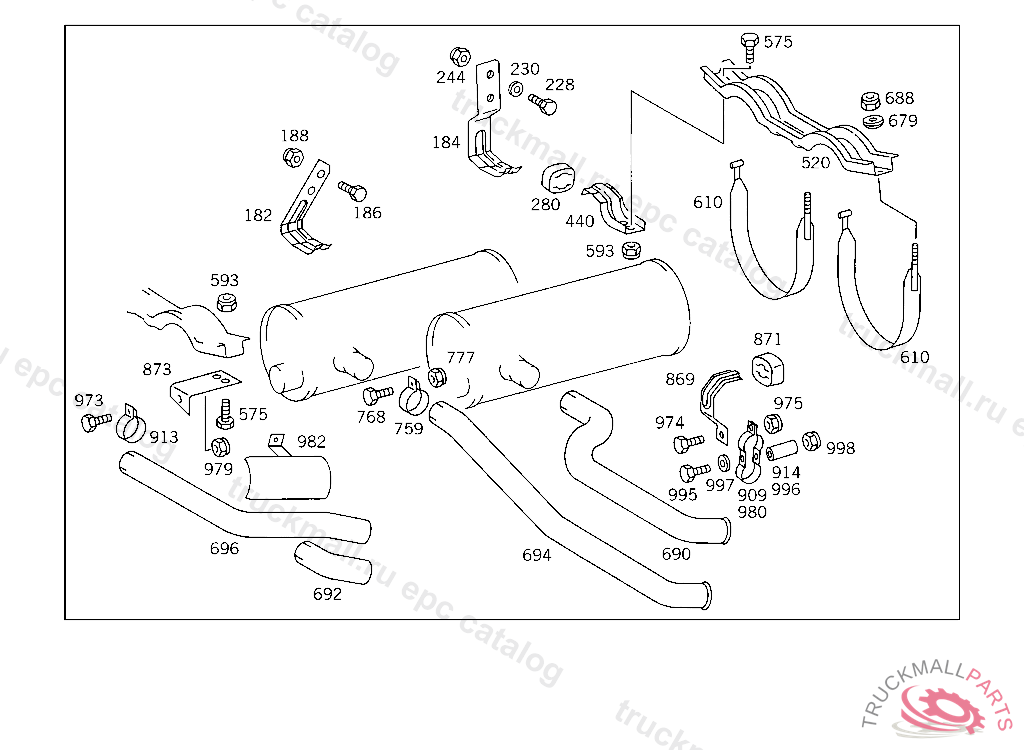

Поз.
Артикул
Описание
182
BRACKET EXHAUST MUFFLER,LEFT FRONT
182
BRACKET EXHAUST MUFFLER,RIGHT FRONT
184
BRACKET EXHAUST MUFFLER,LEFT REAR
184
BRACKET EXHAUST MUFFLER,RIGHT REAR
186
HEX. HEAD SCREW. SCREW STRUT TO SIDE MEMBER
188
NUT , Replaced By: N910113010000
188
NUT STRAP TO BRACKET
228
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
230
WASHER SPARE WHEEL CARRIER
244
NUT , Replaced By: N910113014001
244
NUT BRACKET TO SIDE MEMBER
244
NUT BRACKET TO SIDE MEMBER
280
DAMPING PAD PARTICLE FILTER
440
BRACKET EXHAUST MUFFLER
440
BRACKET EXHAUST MUFFLER
520
SUPPORT EXHAUST MUFFLER
575
SCREW , Replaced By: N304017008021
575
SCREW PIPE CLAMP
575
SCREW , Replaced By: N304017008034
575
SCREW BRACKET TO CROSS CONNECTION STRUT
593
NUT , Replaced By: N913004008001
593
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
610
STRAP PARTICLE FILTER
679
SPHERICAL WASHER STRAP TO BRACKET
679
SPHERICAL WASHER STRAP TO BRACKET
688
NUT , Replaced By: N910113010000
688
NUT STRAP TO BRACKET
688
NUT STRAP TO BRACKET
690
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
692
REAR EXHAUST PIPE AT MUFFLER,LEFT
694
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
696
REAR EXHAUST PIPE AT MUFFLER,RIGHT
759
CLAMP EXHAUST PIPE TO BRACKET
759
CLAMP , Replaced By: N071555090502
759
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
759
CLAMP , Replaced By: N071555100501
759
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
759
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
759
CLAMP , Replaced By: N071555120502
768
SCREW , Replaced By: N304017010002
768
SCREW BRACKET TO SIDE MEMBER
768
SCREW , Replaced By: N304017008027
768
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
777
NUT , Replaced By: N910113010000
777
NUT STRAP TO BRACKET
777
NUT , Replaced By: N913004008001
777
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
869
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
871
DAMPING PAD PARTICLE FILTER
873
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
873
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
909
CLAMP TAIL PIPE TO BRACKET
909
CLAMP EXHAUST PIPE TO BRACKET
913
CLAMP , Replaced By: N071555090502
913
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
914
SPACER TUBE EXHAUST PIPE TO BRACKET
973
SCREW , Replaced By: N304017010002
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW REAR EXHAUST PIPE TO BRACKET M 10X80
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW REAR EXHAUST PIPE TO MUFFLER
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW REAR EXHAUST PIPE TO MUFFLER
974
SCREW , Replaced By: N304017008027
974
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
975
NUT , Replaced By: N913004008001
975
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
979
NUT , Replaced By: N910113010000
979
NUT STRAP TO BRACKET
979
NUT STRAP TO BRACKET
980
CLAMP TAIL PIPE TO BRACKET
982
PROTECTIVE PLATE (HEAT SHIELD)
995
SCREW , Replaced By: N304014010004
995
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
996
SPACER TUBE EXHAUST PIPE TO BRACKET
997
WASHER , Replaced By: N000125010532
997
WASHER RADIATOR TO RUBBER MOUNTING
998
NUT , Replaced By: N910113010000
998
NUT STRAP TO BRACKET
998
NUT STRAP TO BRACKET
999
BRACKET LEFT
999
BRACKET HEAT SHIELD
999
BRACKET REAR EXHAUST MUFFLER
999
CROSS MEMBERNO.3, TO BE ADAPTED DURING ASSEMBLY
999
CROSS MEMBERNO.4, 415 5 014669 416 5 000516 417 4 972024
999
BRACKET
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3814923841
999
REAR EXHAUST PIPE REAR RIGHT,K 094547
999
REAR EXHAUST PIPE
999
BRACKET
999
REAR EXHAUST PIPE REAR,5 557346
999
BRACKET , Replaced By: A3814921041
999
BRACKET , Replaced By: A6554922941
999
BRACKET REAR EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE
999
BRACKET , Replaced By: A6554922841
999
BRACKET LEFT,5 594963
999
BRACKET LEFT
999
BRACKET , Replaced By: A6484910041
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET
