Поз.
Артикул
Описание

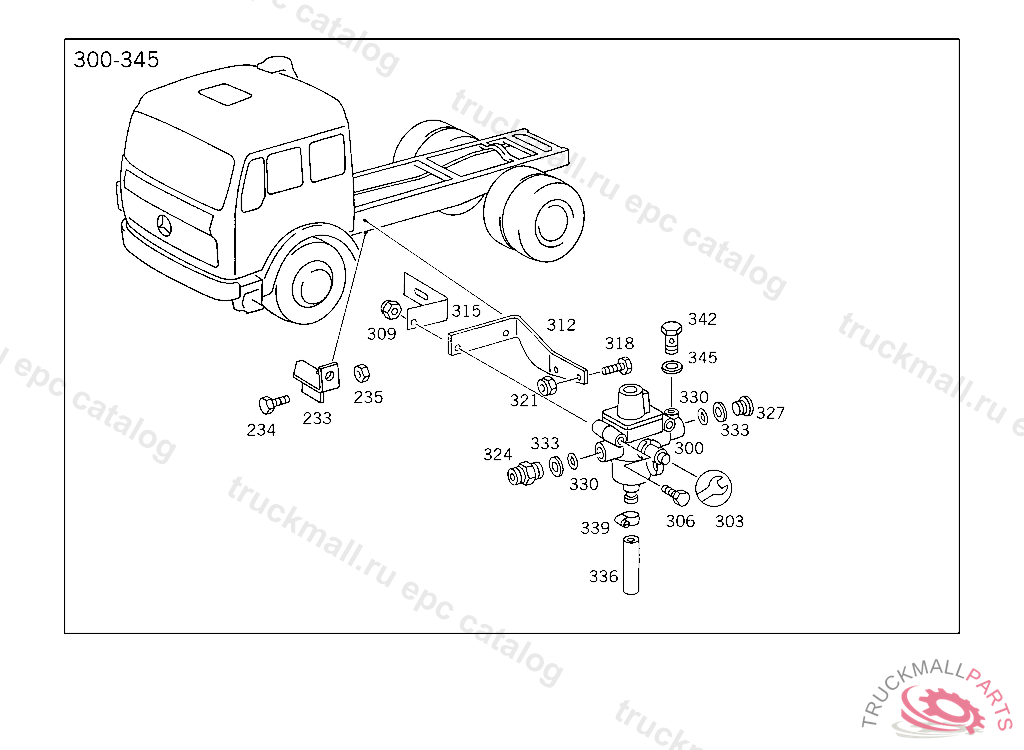

233
BRACKET COMPRESSED AIR LINES THRU BATTERY/ APPARATUS SUPPORT
234
SCREW BRACKET TO SIDE MEMBER
235
NUT BRACKET TO SIDE MEMBER
235
NUT , Replaced By: N910113014001
300
PRESSURE REGULATORKNORR
300
PRESSURE REGULATORWABCO
300
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
303
REPAIR KIT PRESSURE REGULATOR WABCO
303
REPAIR KIT SEAL RING BOSCH,209
303
REPAIR KIT DIAPHRAGM PART BOSCH,209
306
SCREW REAR AXLE REGULATING SOLENOID VALVE
309
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
309
NUT , Replaced By: N913004008001
312
BRACKET PRESSURE REGULATOR
312
BRACKET PRESSURE REGULATOR
312
BRACKET , Replaced By: A6454311240
315
BRACKET FUEL LINE TO BELL HOUSING
318
SCREW BRACKET TO SIDE MEMBER
318
SCREW , Replaced By: N304017010002
321
NUT STRAP TO BRACKET
321
NUT , Replaced By: N910113010000
324
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
327
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
327
SCREW PLUG , Replaced By: N000908012009
330
O-RING CHECK VALVE TO AIR RESERVOIR
333
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
336
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
339
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
339
CLAMP , Replaced By: N000000000667
342
HOLLOW SCREW HEATING CONNECTION
345
SEAL RING LINE CONNECTION
345
SEAL RING LINE CONNECTION
999
FITTINGWABCO
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
ELBOW FITTING , Replaced By: A0004294638
999
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT PRESSURE REGULATOR KNORR
999
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
999
ANGLETO 000 431 46 15
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONNECTOR REPAIR SIZE
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW. UNION SCREW LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING ,5 433281
999
T-FITTING CHECK VALVE TO RELAY VALVE
999
ELBOW FITTING , Replaced By: A0019908171
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET AIR DEHYDRATOR
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
WASHER STRAP TO SUPPORT
999
SEAL RING LINE CONNECTION
