Поз.
Артикул
Описание

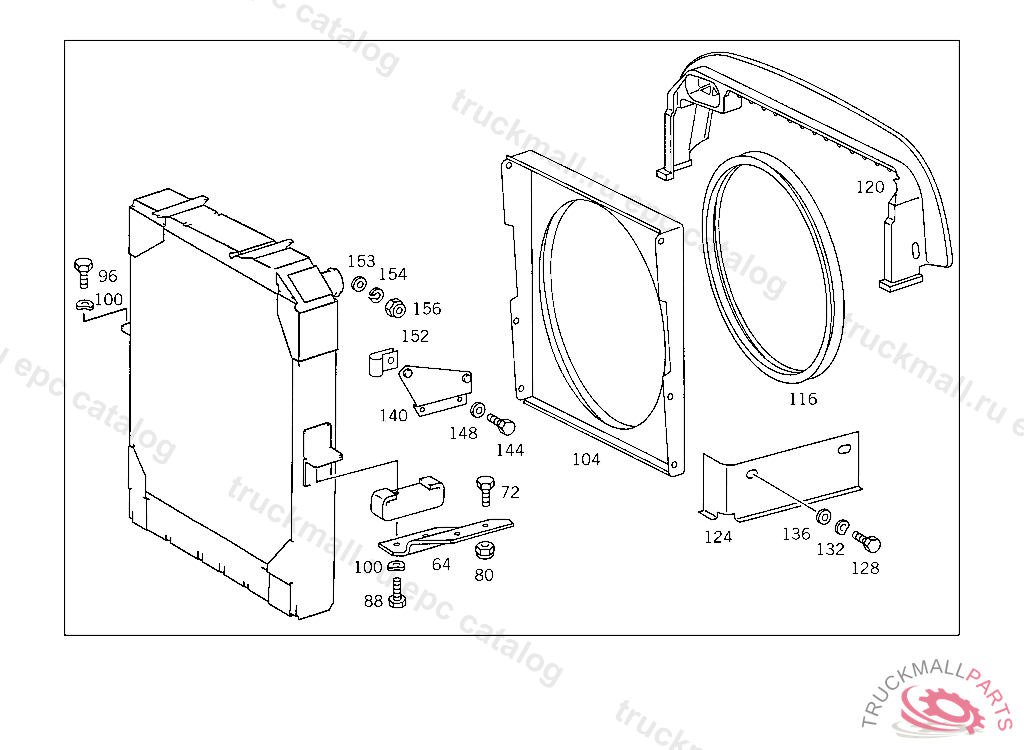

64
SUPPORT RADIATOR,LEFT,K 096749
72
SCREW CONSOLE TO SIDE MEMBER
80
NUT SUPPORT TO SIDE MEMBER
88
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
88
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
88
SCREW , Replaced By: N304017010028
96
SCREW END PIECE TO EXHAUST PIPE M 10X25
100
SPRING WASHER STEERING COLUMN BRACKET TO CAB
100
SPRING WASHER STEERING COLUMN BRACKET TO CAB
104
FAN SHROUD RADIATOR
116
BOOT FAN SHROUD TO FAN RING
120
BOOT RADIATOR
124
BRACKET BOOT
128
SCREW LICENSE PLATE TO BRACKET
128
SCREW , Replaced By: N304017006020
132
SPRING WASHER LICENSE PLATE TO BRACKET
136
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
136
WASHER , Replaced By: N000125006421
140
BRACKET OI DIPSTICK GUIDE TUBE
144
SCREW PUMP TO BRACKET
144
SCREW , Replaced By: N304017006016
148
SPRING WASHER LICENSE PLATE TO BRACKET
152
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
153
WASHER
153
WASHER , Replaced By: N007349008007
154
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
156
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
156
NUT , Replaced By: N913004008001
999
RADIATOR , Replaced By: A0015013701
999
LINE HEATING AND BREATHING
999
CLAMP , Replaced By: A3609951201
999
SCREW PLUG WATER DRAIN
