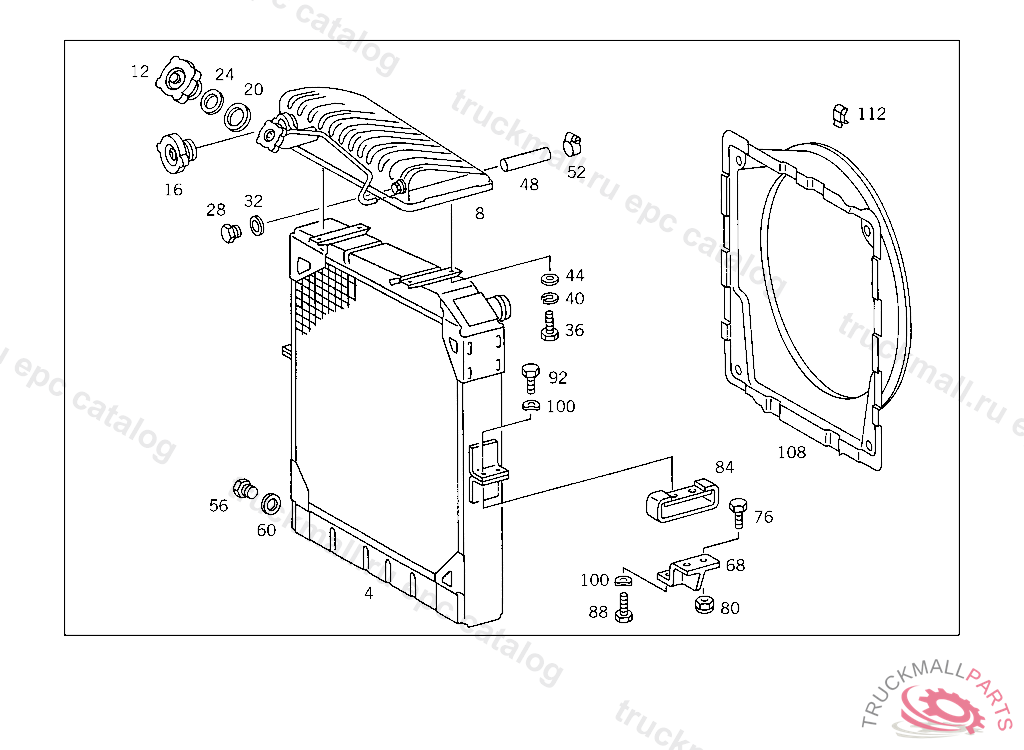

Поз.
Артикул
Описание
4
RADIATOR
4
RADIATOR"BEHR"
8
TANK EXPANSION TANK
12
RADIATOR CAP FILLER NECK
12
RADIATOR CAP FILLER NECK
16
RADIATOR CAP CENTRAL
16
RADIATOR CAP CENTRAL
20
GASKET O.D., 52 MM
24
GASKET O.D., 37 MM
28
SCREW PLUG , Replaced By: N007604014101
32
SEAL RING FUEL LINE TO FEED PUMP
36
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
36
SCREW , Replaced By: N304017008016
40
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
WASHER EXHAUST MUFFLER TO STRAP
44
WASHER , Replaced By: N000125008443
48
HOSE OVERFLOW, EXPANSION TANK
52
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
52
CLAMP , Replaced By: N916017011001
56
SCREW PLUG , Replaced By: N007604014101
60
SEAL RING FUEL LINE TO FEED PUMP
80
NUT SUPPORT TO SIDE MEMBER
84
RUBBER MOUNTING RADIATOR
88
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
88
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
88
SCREW , Replaced By: N304017010028
92
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
100
SPRING WASHER STEERING COLUMN BRACKET TO CAB
100
SPRING WASHER STEERING COLUMN BRACKET TO CAB
112
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
SCREW PLUG WATER DRAIN
999
CLAMP , Replaced By: A3609951201
999
RADIATOR , Replaced By: A0015013701
