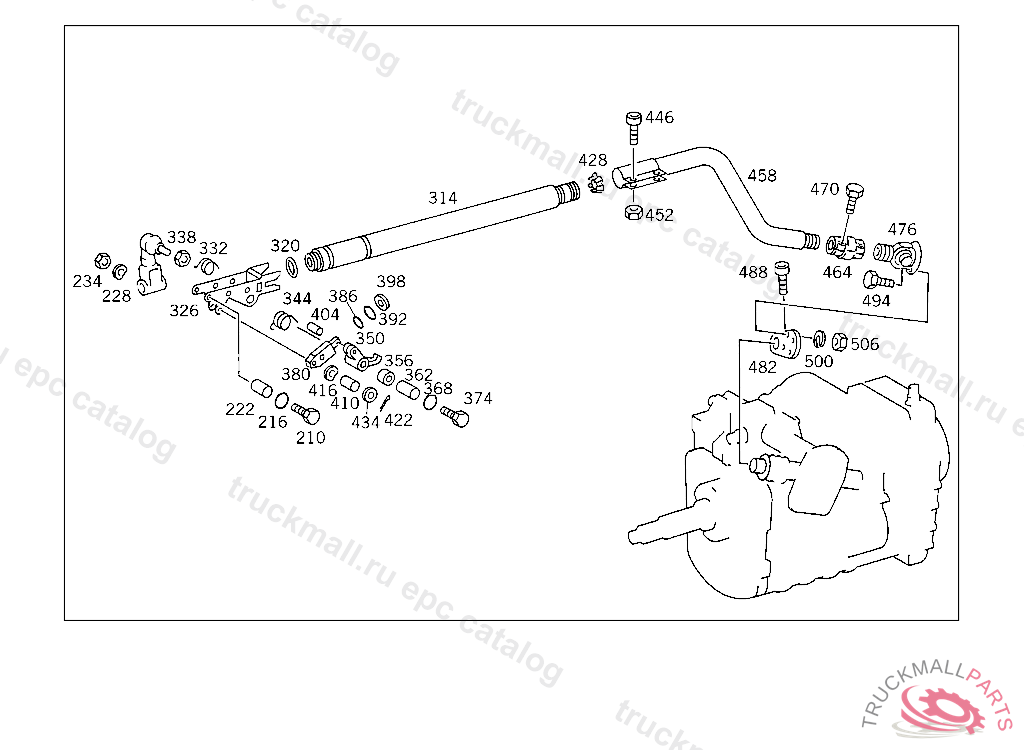

Поз.
Артикул
Описание
210
SCREW , Replaced By: N000933010192
210
SCREW SHIFTING ROD TO SHIFT LEVER
216
SEAL RING LEVER BEARING
222
PIN SHIFTING ROD TO JOINT
228
SPRING WASHER LEVER TO BRACKET
234
NUT , Replaced By: N910113010000
234
NUT STRAP TO BRACKET
314
SHIFTING TUBE (TELESCOPIC TUBE)
320
SEAL RING HYDRAULIC RELEASE
326
ROD END HYDRAULIC RELEASE
332
SPRING ROD END
338
NUT , Replaced By: N910113010000
338
NUT STRAP TO BRACKET
344
SPRING ROD END
350
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
350
PAWL SHIFTING ROD,5 443048
356
BUSHING PAWL TO ROD END,5 443047
362
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
368
ROUND CORD RING. SEAL RING ROD END
374
SCREW , Replaced By: N000933010192
374
SCREW SHIFTING ROD TO SHIFT LEVER
380
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
380
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
386
SEAL RING PISTON RINGS WABCO
392
SEAL RING SCREW FITTING WABCO
398
SEAL RING OUTSIDE WABCO
404
PIN , Replaced By: N001444008235
404
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
410
PIN SHIFTING CYLINDER TO YOKE
416
SPRING WASHER SHIFTING CYLINDER TO YOKE
422
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
422
COTTER PIN LEVER TO ROD
428
WASHER BETWEEN THE SHIFTING RODS
434
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
446
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
452
NUT , Replaced By: N910113010000
452
NUT STRAP TO BRACKET
458
SHIFTING ROD REAR
464
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
470
SCREW , Replaced By: N304017010047
470
SCREW CONNECTOR TO REAR SHIFTING ROD
476
JOINT SHIFTING ROD TO TRANSMISSION
476
JOINT SHIFTING ROD TO TRANSMISSION
476
JOINT SHIFTING ROD TO TRANSMISSION
482
FLANGE TRANSMISSION
488
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT,5 433388
494
SCREW SHIFTING TUBE TO TRANSMISSION
500
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
506
NUT
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT
999
JOINT SHIFTING TRANSFER,K 131522
999
JOINT
999
T-FITTING SUPPLY LINE FOR TRANSMISSION
999
FITTING DELIVERY LINE TO PUMP
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
REPAIR KIT JOINT
999
BRACKET SHIFTING TRANSFER,LEFT
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
999
BUSHING PAWL TO ROD END,5 443048
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
NUT
999
BALL
999
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
