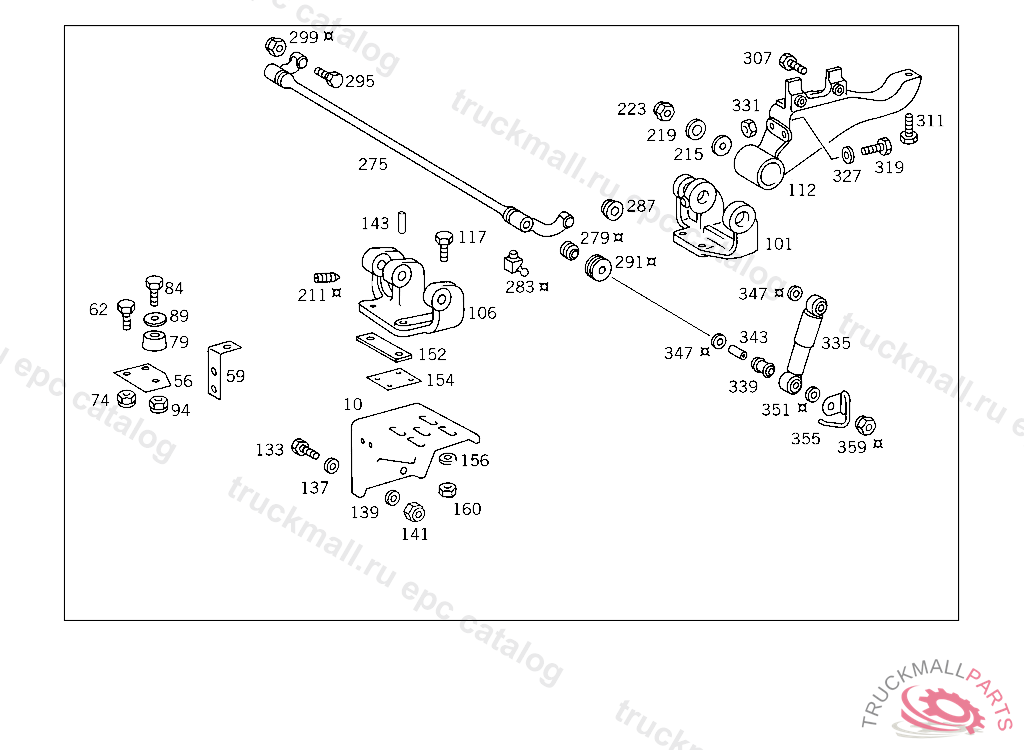

Поз.
Артикул
Описание
10
CONSOLE CAB SUSPENSION,FRONT
56
BRACKET BUFFER
59
BRACKET RIGHT RUBBER BUFFER
59
BRACKET RIGHT RUBBER BUFFER
62
SCREW , Replaced By: N308676012026
62
SCREW EXHAUST PIPE TO BRACKET
62
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
62
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
62
SCREW CONSOLE TO SIDE MEMBER
62
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
74
NUT SUPPORT TO SIDE MEMBER
79
MOUNTING (RUBBER BUFFER)
84
SCREW , Replaced By: N304017008034
84
SCREW , Replaced By: N910142008009
84
SCREW BRACKET TO CROSS CONNECTION STRUT
84
SCREW CLAMP TO BRACKET,5 597426
89
WASHER , Replaced By: N009021008213
89
WASHER BRACKET TO LEFT SIDE MEMBER
94
NUT , Replaced By: N913004008001
94
NUT BRACKET TO BRACKET
94
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
101
MOUNTING RIGHT SIDE MEMBER
101
MOUNTING RIGHT SIDE MEMBER
101
MOUNTING RIGHT SIDE MEMBER
101
MOUNTING RIGHT SIDE MEMBER
101
MOUNTING , Replaced By: A6558910420
101
MOUNTING CAB,LEFT
101
MOUNTING , Replaced By: A6558910320
101
MOUNTING CAB,LEFT
101
MOUNTING LEFT SIDE MEMBER
106
MOUNTING CAB, RIGHT
106
MOUNTING CAB, RIGHT
106
MOUNTING CAB, RIGHT
106
MOUNTING CAB, RIGHT
106
MOUNTING CAB, RIGHT
106
MOUNTING LEFT SIDE MEMBER
106
MOUNTING CAB,LEFT
112
MOUNTING CAB, RIGHT
112
MOUNTING CAB, RIGHT
112
MOUNTING CAB, RIGHT
112
MOUNTING CAB,LEFT
117
SCREW CAB TO FRONT CONSOLE,5 412153
117
SCREW MOUNTING TO CONSOLE M 14X130
117
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
117
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
117
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
117
SCREW MOUNTING TO CONSOLE
117
SCREW MOUNTING TO CONSOLE M 14X55
117
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
117
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
117
SCREW , Replaced By: N308676014020
117
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
117
SCREW MOUNTING TO CONSOLE M 14X35
117
SCREW VERTICAL TAIL PIPE BEHIND CAB
117
SCREW , Replaced By: N308676014008
117
SCREW MOUNTING TO CONSOLE
117
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
117
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
117
SCREW , Replaced By: N308676014003
133
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
133
SCREW MOUNTING TO CONSOLE M 16X25
133
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
133
SCREW BRACKET TO SUPPORT
133
SCREW , Replaced By: N308676016020
133
SCREW CONSOLE TO FRAME
133
SCREW BRACKET TO SUPPORT
133
SCREW TORSION BAR TO BEARING BRACKET M 16X115,5 903514
133
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X38
133
SCREW BRACKET TO SIDE MEMBER
133
SCREW , Replaced By: N308676016013
133
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
133
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
133
SCREW CONSOLE AND STRUT TO FRAME
133
SCREW CONSOLE AND STRUT TO FRAME
133
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X38
133
SCREW BRACKET TO SUPPORT
133
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
137
WASHER CONSOLE AND STRUT TO FRAME
139
WASHER , Replaced By: N000125017016
139
WASHER BRACKET TO FRAME
141
NUT , Replaced By: N910113016001
141
NUT CONSOLE TO SUPPORT
143
DOWEL PIN MOUNTING TO CONSOLE
152
SHIM MOUNTING TO CONSOLE
152
SHIM MOUNTING TO CONSOLE
154
BASE MOUNTING TO CONSOLE
156
WASHER SPARE WHEEL CARRIER
160
NUT , Replaced By: N910113014000
160
NUT BRACKET TO SIDE MEMBER
160
NUT , Replaced By: N910113014001
160
NUT STEERING SUPPORT TO FRAME
160
NUT BRACKET TO SIDE MEMBER
211
HEADLESS SETSCREW FOR SPRING
211
HEADLESS SETSCREW FOR SPRING
211
HEADLESS SETSCREW FOR SPRING
215
WASHER BEARING BRACKET
215
WASHER BEARING BRACKET
215
WASHER BEARING BRACKET
219
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
219
WASHER TORSION BAR TO BEARING BRACKET
219
WASHER TORSION BAR TO BEARING BRACKET
219
WASHER TORSION BAR TO BEARING BRACKET
223
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
223
NUT COMBINATION CYLINDER TO BEARING BRACKET
223
NUT COMBINATION CYLINDER TO BEARING BRACKET
223
NUT COMBINATION CYLINDER TO BEARING BRACKET
275
STABILIZER , Replaced By: A6528900104
275
STABILIZER CAB SUSPENSION,FRONT
279
JOINT BEARING , Replaced By: A0019814631
279
JOINT BEARING
279
JOINT BEARING
283
GREASE NIPPLE FOR SPRING
287
SCREW PLUG STABILIZER
291
WASHER STABILIZER TO BEARING
295
SCREW STABILIZER TO BEARING
295
SCREW STABILIZER TO BEARING
299
NUT , Replaced By: N910113014001
299
NUT BRACKET TO SIDE MEMBER
299
NUT BRACKET TO SIDE MEMBER
307
SCREW , Replaced By: N308676012031
307
SCREW , Replaced By: N308676012011
307
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
307
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
311
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
311
SCREW SUPPORT TO SIDE MEMBER M14X40
311
SCREW , Replaced By: N910105014010
311
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
311
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
311
SCREW SUPPORT TO SIDE MEMBER M14X40
319
SCREW BRACKET TO CAB CONSOLE,K 035197
319
SCREW , Replaced By: N000961014064
319
SCREW BRACKET TO SIDE MEMBER
319
SCREW , Replaced By: N910105014010
319
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
319
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB M 14X50
319
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
327
WASHER BRACKET TO SIDE MEMBER,5 703114
327
WASHER , Replaced By: N000125015019
327
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
327
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
327
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
331
NUT , Replaced By: N910113014001
331
NUT BRACKET TO SIDE MEMBER
331
NUT BRACKET TO SIDE MEMBER
331
NUT BRACKET TO SIDE MEMBER
335
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
339
RUBBER MOUNTING
339
RUBBER MOUNTING
343
BUSHING
347
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
351
WASHER
351
WASHER
355
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
359
NUT SUPPORT TO SIDE MEMBER
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
CLAMPING SLEEVE CAB LOCKING MECHANISM
999
SCREW RETARDER HOUSING TO TRANSMISSION CASE M 18X1.5X120
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET LATERAL GUIDE OF CAB
999
MOUNTING LEFT VIBRATION ABSORBER
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
STOP LATERAL GUIDE OF CAB
999
WASHER CONSOLE TO FRAME
999
HEXAGON HEAD BOLT. SCREW BEARING MOUNTING M 12 X 1,5 X 80
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
SCREW CLAMP TO CONSOLE
999
SCREW STRUT TO CONSOLE
999
SCREW , Replaced By: N910105010023
999
NUT BRACKET TO CROSS MEMBER
