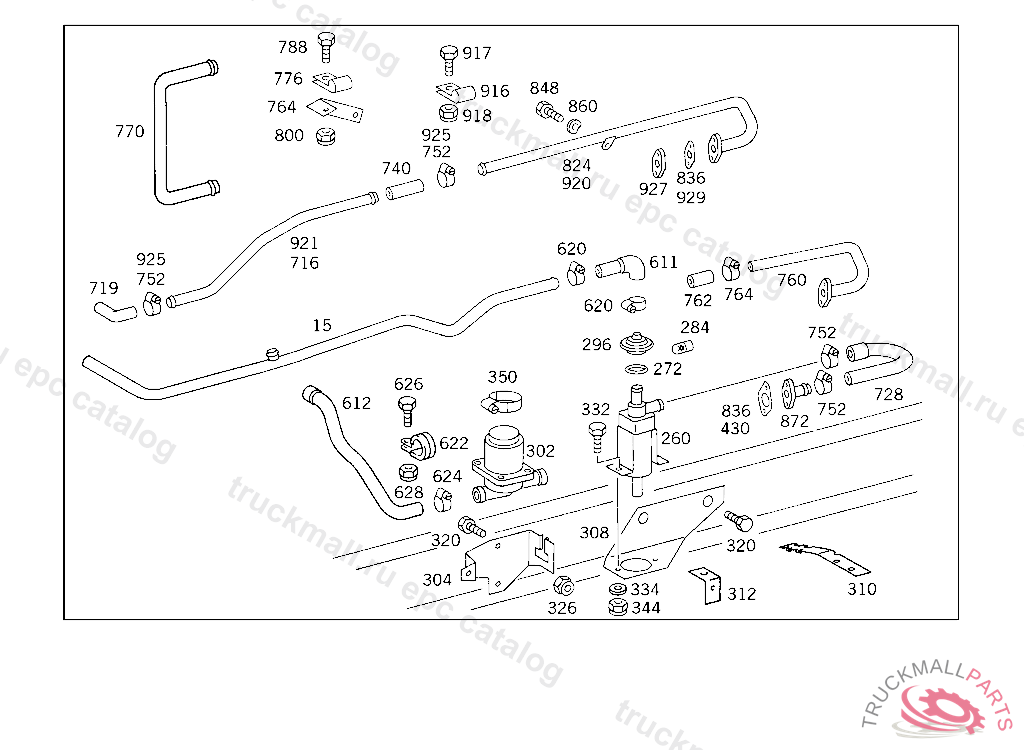

Поз.
Артикул
Описание
15
LINE FROM SOLENOID VALVE TO PUMP
260
VALVE (SOLENOID VALVE),5 232740
260
SOLENOID VALVE. VALVE (SOLENOID VALVE),5 762455
260
SOLENOID VALVE. VALVE (SOLENOID VALVE),5 762455
260
VALVE (SOLENOID VALVE),5 232740
260
VALVE (SOLENOID VALVE),5 232740
260
VALVE (SOLENOID VALVE),5 232740
260
VALVE (SOLENOID VALVE)
260
VALVE (SOLENOID VALVE)
260
VALVE (SOLENOID VALVE),5 232740
272
SEAL RING
272
SEAL RING
284
FILTER
284
FILTER
296
VALVE INSERT
296
VALVE INSERT
302
VALVE (SOLENOID VALVE),5 762454
302
SOLENOID VALVE. VALVE (SOLENOID VALVE),5 762455
302
SOLENOID VALVE. VALVE (SOLENOID VALVE),5 762455
304
BRACKET SOLENOID VALVE
304
BRACKET SOLENOID VALVE
308
BRACKET SOLENOID VALVE,5 768661
308
BRACKET SOLENOID VALVE,5 561856
308
BRACKET SOLENOID VALVE,5 561856
308
BRACKET SOLENOID VALVE,5 768661
308
BRACKET SOLENOID VALVE,5 768661
310
BRACKET SOLENOID VALVE
310
BRACKET SOLENOID VALVE
310
BRACKET SOLENOID VALVE
312
ANGLE LINE MOUNTING
312
ANGLE LINE MOUNTING
320
SCREW BRACKET TO FRAME SIDE MEMBER
320
SCREW , Replaced By: N308676014020
320
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
320
SCREW BRACKET TO FRAME SIDE MEMBER
320
SCREW END PIECE TO EXHAUST PIPE M 10X25
320
SCREW SHOCK ABSORBER BRACKET TO SIDE MEMBER
320
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
326
NUT END PIECE TO EXHAUST PIPE
326
NUT SUPPORT TO SIDE MEMBER
326
NUT , Replaced By: N910113010000
326
NUT STRAP TO BRACKET
326
NUT END PIECE TO EXHAUST PIPE
326
NUT END PIECE TO EXHAUST PIPE
332
SCREW REGULATOR TO BRACKET
332
SCREW BRACKET MOUNTING
332
SCREW BRACKET MOUNTING
334
WASHER VALVE TO BRACKET,5 602406
344
NUT , Replaced By: N913002004001
344
NUT ATTACHMENT, MARKER LIGHT
344
NUT ATTACHMENT, MARKER LIGHT
344
NUT ATTACHMENT, MARKER LIGHT
350
CLAMP , Replaced By: N000000000670
350
CLAMP
350
CLAMP
350
CLAMP
430
GASKET HEATING PIPE TO ENGINE
611
HOSE FROM HEATING LINE TO SOLENOID VALVE
611
HOSE FROM VALVE TO FEED LINE,K 004003
611
HOSE FROM VALVE TO FEED LINE,K 004003
611
HOSE FROM VALVE TO FEED LINE
611
HOSE FROM HEATING LINE TO SOLENOID VALVE,5 561856
611
HOSE FROM HEATING LINE TO SOLENOID VALVE,5 561856
611
HOSE FROM HEATING LINE TO SOLENOID VALVE,5 561856
611
HOSE FROM HEATING LINE TO SOLENOID VALVE
611
HOSE FROM HEATING LINE TO SOLENOID VALVE
611
HOSE FROM HEATING LINE TO SOLENOID VALVE,5 5348045 768661
611
HOSE FROM VALVE TO FEED LINE,K 004003
611
HOSE FROM VALVE TO FEED LINE
611
HOSE , Replaced By: A3098321023
612
HOSE FROM VALVE TO FEED LINE,K 004002
612
HOSE FROM VALVE TO FEED LINE,K 004002
620
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
620
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
620
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
620
CLAMP , Replaced By: N000000000667
622
CLAMP HOSE TO FLANGE AND TO VALVE
622
CLAMP HOSE TO FLANGE AND TO VALVE
624
CLAMP
624
CLAMP , Replaced By: N000000000670
626
SCREW COVER PLATE TO COVER PLATE M 6 X 12
626
SCREW COVER PLATE TO COVER PLATE M 6 X 12
626
SCREW , Replaced By: N304017006018
628
NUT PUMP TO BRACKET
628
NUT PUMP TO BRACKET
628
NUT , Replaced By: N913004006001
716
PIPE FROM HEATING PIPE TO SOLENOID VALVE
716
PIPE FROM HEATING PIPE TO SOLENOID VALVE
719
HOSE FROM FLANGE TO VALVE
719
HOSE FROM FLANGE TO VALVE
719
HOSE , Replaced By: A3098320623
728
HOSE FROM FLANGE TO VALVE
728
HOSE FROM HEATING PIPE TO SOLENOID VALVE
728
HOSE FROM FLANGE TO VALVE,5 715775
728
HOSE FROM FLANGE TO VALVE,5 715775
728
HOSE FROM HEATING PIPE TO SOLENOID VALVE
740
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
752
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
752
CLAMP , Replaced By: N000000000667
760
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
760
LINE , Replaced By: A0005516456
760
LINE (HEATING WATER LINE),ENGINE,5 534804
760
LINE , NOT USED
760
LINE , NOT USED
760
LINE , NOT USED
760
LINE (HEATING WATER LINE),ENGINE,5 534804
760
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
760
LINE , NOT USED
762
HOSE FROM CHECK VALVE TO PIPE LINE
762
HOSE , Replaced By: A6205060635
764
BRACKET HEATING WATER LINE TO SIDE MEMBER
764
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
764
CLAMP , Replaced By: N000000000667
770
BREATHER PIPE ,5 602407
770
BREATHER PIPE ,5 602406
776
CLAMP FEED LINE TO THERMOSTAT
788
SCREW COVER PLATE TO BRACKET
800
NUT PUMP TO BRACKET
800
NUT , Replaced By: N913004006001
824
LINE FEED, FROM ENGINE TO THERMOSTAT
824
LINE FEED, FROM ENGINE TO THERMOSTAT
824
LINE FEED, FROM ENGINE TO THERMOSTAT
836
GASKET HEATING PIPE TO ENGINE
836
GASKET HEATING PIPE TO ENGINE
836
GASKET HEATING PIPE TO ENGINE
848
SCREW PIPE CLAMP
848
SCREW PIPE CLAMP
848
SCREW PIPE CLAMP
848
SCREW , Replaced By: N304017008021
860
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
860
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
860
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
860
SPRING WASHER , Replaced By: N000137008212
872
FLANGE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,5 301949
872
FLANGE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,5 301949
872
FLANGE FEED LINE TO ENGINE, 5 525562
872
FLANGE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,5 301949
872
FLANGE FEED LINE TO ENGINE
872
FLANGE FEED LINE TO ENGINE, 5 525562
872
FLANGE FEED LINE TO ENGINE, 5 525562
916
CLAMP FEED LINE TO THERMOSTAT
916
CLAMP FEED LINE TO THERMOSTAT
917
SCREW COVER PLATE TO BRACKET
917
SCREW COVER PLATE TO BRACKET
918
NUT PUMP TO BRACKET
918
NUT PUMP TO BRACKET
918
NUT , Replaced By: N913004006001
920
LINE (HEATING WATER LINE),ENGINE,5 534804
920
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
921
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
921
LINE , Replaced By: A0005516456
925
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
925
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
925
CLAMP , Replaced By: N000000000667
927
FLANGE (BLIND FLANGE)
929
GASKET HEATING PIPE TO ENGINE
999
NUT EXHAUST PIPE TO SIDE MEMBER
999
SCREW , Replaced By: N910105010009
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
BRACKET , Replaced By: A6454310740
999
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
999
BRACKET DE-AERATION LINE TO CAB
999
LINE HEATING AND BREATHING
999
LINE HEATING PIPE
999
LINE HEATING PIPE
999
LINE (HEATING LINE),FROM ENGINE TO HEATER
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
BRACKET ENGINE CABLE HARNESS BRANCH-OFF,5 094166
999
BRACKET AT BRACKET
999
LINE
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING AND BREATHING
999
LINE HEATING FEED,K 004002
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE TO OIL COOLER
999
BRACKET HEATING PIPE
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING WATER,5 534803
999
LINE HEATING AND BREATHING
999
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,K 003769
999
LINE HEATING AND BREATHING,K 096749
999
LINE HEATING LINES
999
LINE HEATING WATER
999
LINE HEATING LINES,K 003669
999
LINE DE-AERATION PIPE TO ENGINE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET FEED LINE TO THERMOSTAT
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 003669
999
BRACKET HEATING PIPE
999
BRACKET ENGINE/ENGINE-SPEED-LIMITATION CABLEHARNESS PLUG-CONNECTION
