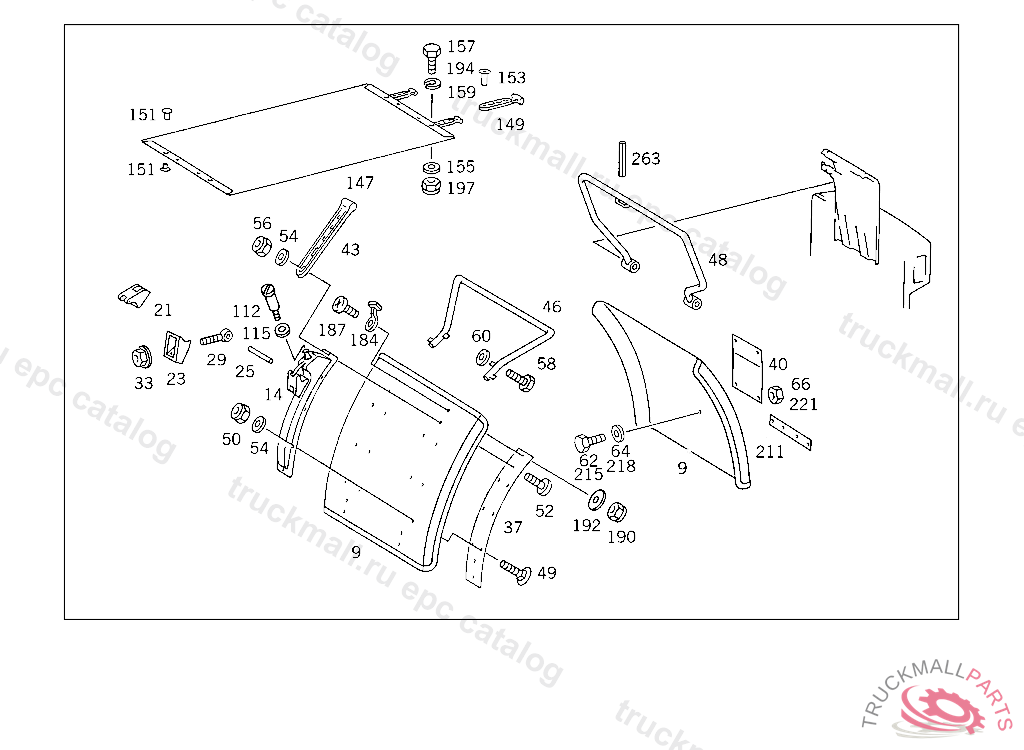

Поз.
Артикул
Описание
9
FENDER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3855220301
9
FENDER ,5 005872
9
FENDER ,5 005872
9
FENDER
14
BRACKET FRONT FENDER
14
BRACKET FENDER TO BRACKET
14
BRACKET REAR FENDER
14
BRACKET REAR FENDER
14
BRACKET FENDER TO BRACKET
14
BRACKET FENDER TO BRACKET
14
BRACKET , Replaced By: A6205204341
21
CLAMPING PIECE
23
CLAMPING PIECE
23
CLAMPING PIECE
25
RIVET9X48 MM
25
RIVET
29
EYEBOLT
29
EYEBOLT ,5 101103
29
SCREW
33
NUT
37
REINFORCEMENT FENDER FIXTURE 505 MM
37
REINFORCEMENT
37
REINFORCEMENT FENDER
37
REINFORCEMENT FENDER
37
REINFORCEMENT FENDER FIXTURE 536 MM
37
REINFORCEMENT FRONT FENDER
37
REINFORCEMENT FENDER
37
REINFORCEMENT FENDER
37
REINFORCEMENT FENDER
37
REINFORCEMENT FENDER
40
REINFORCEMENT REAR FENDER
40
REINFORCEMENT REAR FENDER
43
BRACKET COVERING TO FRONT FENDER
46
STAY FENDER
48
STAY AT BEARING BRACKET
48
STAY AT BEARING BRACKET
48
STAY AT BEARING BRACKET
49
SCREW BRACKET TO REAR FENDER
50
NUT , Replaced By: N910113006001
50
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
52
SCREW , Replaced By: N000000001146
52
SCREW CLAMP MOUNTING M 6X16
54
WASHER , Replaced By: N009021006208
54
WASHER COMPRESSED AIR LINE TO BRACKET
56
NUT , Replaced By: N910113006001
56
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
56
NUT BALL PIVOT TO LEVER
58
SCREW COVER PLATE TO BRACKET
58
SCREW COVER PLATE TO BRACKET
60
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
60
WASHER COMPRESSED AIR LINE TO BRACKET
60
WASHER COMPRESSED AIR LINE TO BRACKET
62
SCREW CAB FLOOR COVERING M 6X25
62
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
64
WASHER , Replaced By: N009021006208
64
WASHER COMPRESSED AIR LINE TO BRACKET
66
NUT , Replaced By: N910113006001
66
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
66
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
112
SCREW COVERING M 6X10
115
CONICAL SPRING WASHER COVERING
147
ANTINOISE CAPSULE FENDER,4 601792
147
ANTINOISE CAPSULE FENDER, 393.311 FROM IDENT NO.: 4 450303,393.321 FROM IDENT NO.: 4 453074,395.312,322 FROM IDENT NO.: 4 4260064 601791
147
ANTINOISE CAPSULE FENDER
147
ANTINOISE CAPSULE FENDER, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
147
COVERING FENDER
147
ANTINOISE CAPSULE REAR WHEELS
147
ANTINOISE CAPSULE FENDER
147
ANTINOISE CAPSULE FENDER
147
ANTINOISE CAPSULE FENDER
147
ANTINOISE CAPSULE FENDER
147
ANTINOISE CAPSULE FENDER,4 713379
147
ANTINOISE CAPSULE FENDER,4 601792
147
ANTINOISE CAPSULE FENDER
149
BRACKET COVERING
151
RIVET BINDING RAIL TO COVERING
153
RIVET BRACKET TO BINDING RAIL
153
RIVET BRACKET TO BINDING RAIL
153
RIVET BRACKET TO BINDING RAIL
155
WASHER , Replaced By: N009021006208
155
WASHER COMPRESSED AIR LINE TO BRACKET
157
SCREW , Replaced By: N308676012038
157
SCREW BRACKET TO TRANSMISSION
159
LOCK WASHER FITTING TO BRACKET
184
PIN COVERING AND PIN TO FENDER HALF SHELL
187
SCREW , Replaced By: A0029903712
187
SCREW , Replaced By: N000000001149
187
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
190
NUT , Replaced By: N910113006001
190
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
190
NUT , Replaced By: N913004006001
190
NUT PUMP TO BRACKET
192
WASHER , Replaced By: N009021006208
192
WASHER COMPRESSED AIR LINE TO BRACKET
194
SCREW VALVE TO BRACKET, Replaced By: N304014008002
194
SCREW VALVE TO BRACKET
194
SCREW RADIATOR M 10X45
197
NUT , Replaced By: N913004008001
197
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
197
NUT , Replaced By: N910113010000
197
NUT STRAP TO BRACKET
211
BRACKET REFLECTOR, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
211
BRACKET REFLECTOR, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
215
SCREW BRACKET TO REAR FENDER
215
SCREW BRACKET TO REAR FENDER
218
WASHER , Replaced By: N009021006208
218
WASHER COMPRESSED AIR LINE TO BRACKET
218
WASHER COMPRESSED AIR LINE TO BRACKET
221
NUT , Replaced By: N913004006001
221
NUT PUMP TO BRACKET
221
NUT PUMP TO BRACKET
263
CLAMPING SLEEVE STAY TO FENDER BRACKET 8X45 MM
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
BRACKET TAIL LAMP
999
BEARING BRACKET , Replaced By: A3465225092
999
BRACKET TAIL LAMP TO BRACKET
999
BRACKET
999
BRACKET
999
SUPPORT , Replaced By: A3875840051
999
BRACKET REFLECTOR
999
BRACKET TAIL LAMP,5 453766
999
BRACKET TAIL LAMP,5 453766
999
EXPANSION PLUG BRACKET
999
REFLECTOR
999
SCREW , Replaced By: N914112016015
999
SCREW , Replaced By: N914112016340
