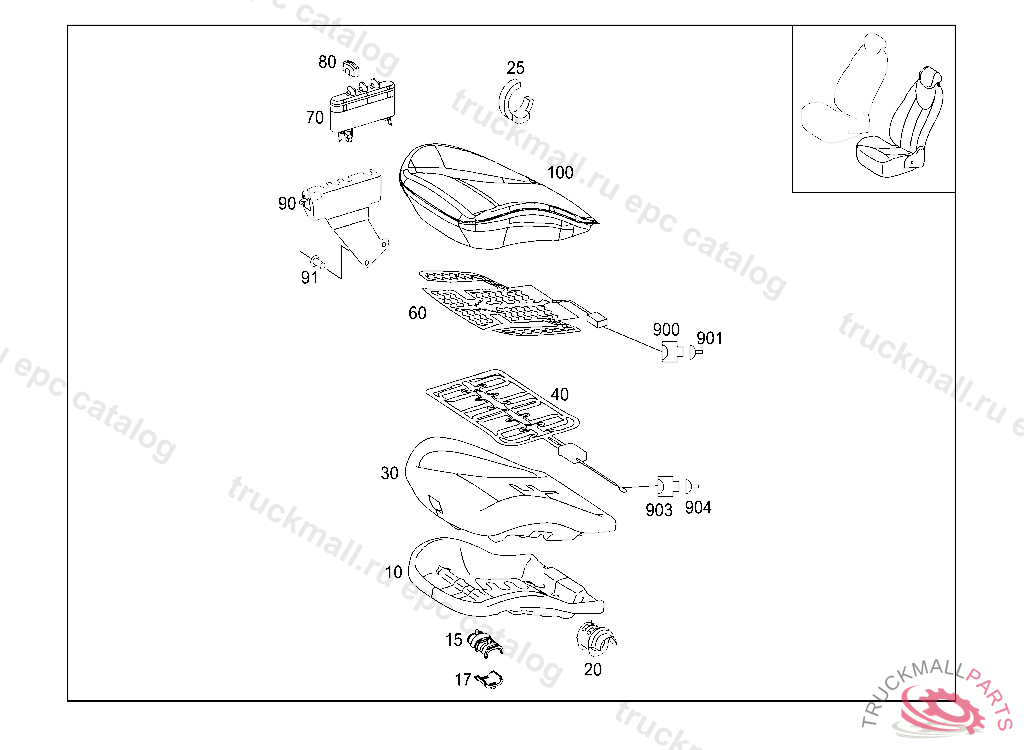

Поз.
Артикул
Описание
10
CUSHION FRAME
15
BEARING CLAMP LEFT AND RIGHT FRONT UPPER SECTION
17
BEARING CLAMP LOWER MEMBER, FRONT LEFT AND RIGHT
20
BEARING CLAMP REAR RIGHT
20
BEARING CLAMP REAR LEFT
25
CLIP CUSHION FRAME TO SEAT FRAME
30
REST
30
REST
30
REST
40
SENSOR MAT AUTOMATIC CHILD SEAT RECOGNITION, NOTE SERVICE INFORMATION IN WISWIS-NET#AR91.60-P-0720AK#
40
SENSOR MAT CHILD SEAT RECOGNITION, NOTE SERVICE INFORMATION IN WISWIS-NET#AR91.60-P-0720AK#, Replaced By: A1698700010
40
SWITCH AUTOMATIC CHILD SEAT RECOGNITION, NOTE SERVICE INFORMATION IN WISWIS-NET#AR91.60-P-0720AK#, Replaced By: A1698703410
40
SWITCH CHILD SEAT RECOGNITION, NOTE SERVICE INFORMATION IN WISWIS-NET#AR91.60-P-0720AK#
40
SENSOR MAT AUTOMATIC CHILD SEAT RECOGNITION, NOTE SERVICE INFORMATION IN WISWIS-NET#AR91.60-P-0720AK#
60
SEAT HEATING , J 27449820070627
60
SEAT HEATING , J 27449920070627
60
SEAT HEATING , J 27449820070627, Replaced By: A1698200698
60
SEAT HEATING , Replaced By: A1698200798
60
SEAT HEATING , Replaced By: A1698201098
60
HEATING PAD , J 27449920070627, Replaced By: A1699062300
60
HEATING PAD , Replaced By: A1699062400
60
SEAT HEATING
60
HEATING PAD
70
CONTROL VALVE MULTICONTOUR SEAT, LEFT
80
KNOB VALVE
90
CLAMP SEAT ADJUSTMENT VALVE, ALSO ORDER AMOUNT AS NEEDED: N910002004111
91
RIVET
100
COVER
100
COVER
100
COVER FRONT SEAT CUSHION
100
COVER
100
COVER
100
COVER
100
COVER
100
COVER , 9E04 751A QFT169A2135 BLACK
900
PLUG HOUSING SWITCH TO CLUTCH PEDAL 2-PIN JPT2.8
901
FLAT PIN BUSHING
903
PIN BUSHING HOUSING
904
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
