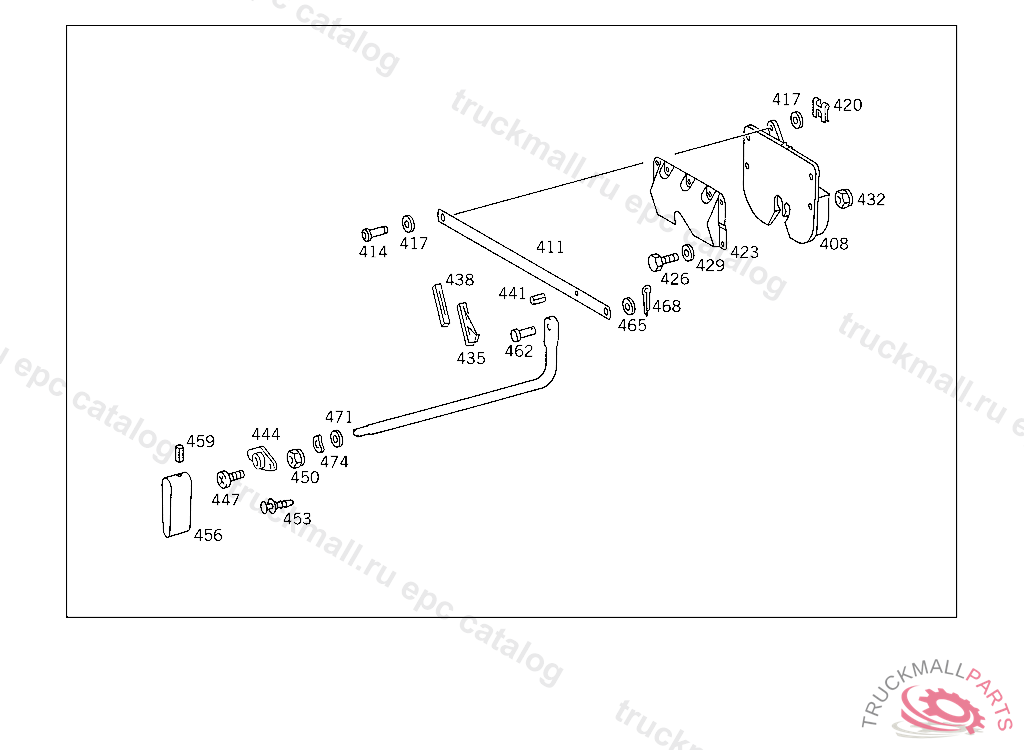

Поз.
Артикул
Описание
408
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
408
FASTENER , Replaced By: A0008902389
408
FASTENER , Replaced By: A0008902389
411
ROD CENTRAL LOCK
411
ROD CENTRAL LOCK
414
PIN PULL TO FASTENER
417
WASHER BRACKET TO CROSS MEMBER
420
LOCK PULL TO FASTENER
420
LOCK , Replaced By: N912002008003
423
CONSOLE CENTRAL LOCK
426
SCREW CENTRAL LOCK TO CAB M 10X16
426
SCREW END PIECE TO EXHAUST PIPE M 10X25
429
WASHER RADIATOR TO RUBBER MOUNTING
429
WASHER , Replaced By: N000125010532
432
NUT , Replaced By: N910113010000
432
NUT STRAP TO BRACKET
435
BRACKET ROD THRU CAB
438
SEAL ROD THRU CAB
441
CLAMPING SLEEVE ROD TO BRACKET
444
BUSHING LEVER TO CAB
447
SCREW BUSHING AND LEVER TO CAB
450
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
450
NUT , Replaced By: N913004008001
453
RIVET BUSHING AND LEVER TO CAB
456
HANDLE CAB LOCKING MECHANISM
459
CLAMPING SLEEVE LEVER MOUNTING
459
CLAMPING SLEEVE , Replaced By: N001481005039
462
PIN LEVER TO ROD
465
WASHER BRACKET TO CROSS MEMBER
468
COTTER PIN LEVER TO ROD
468
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
471
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
471
WASHER , Replaced By: N000125015019
474
SPRING WASHER LEVER MOUNTING
