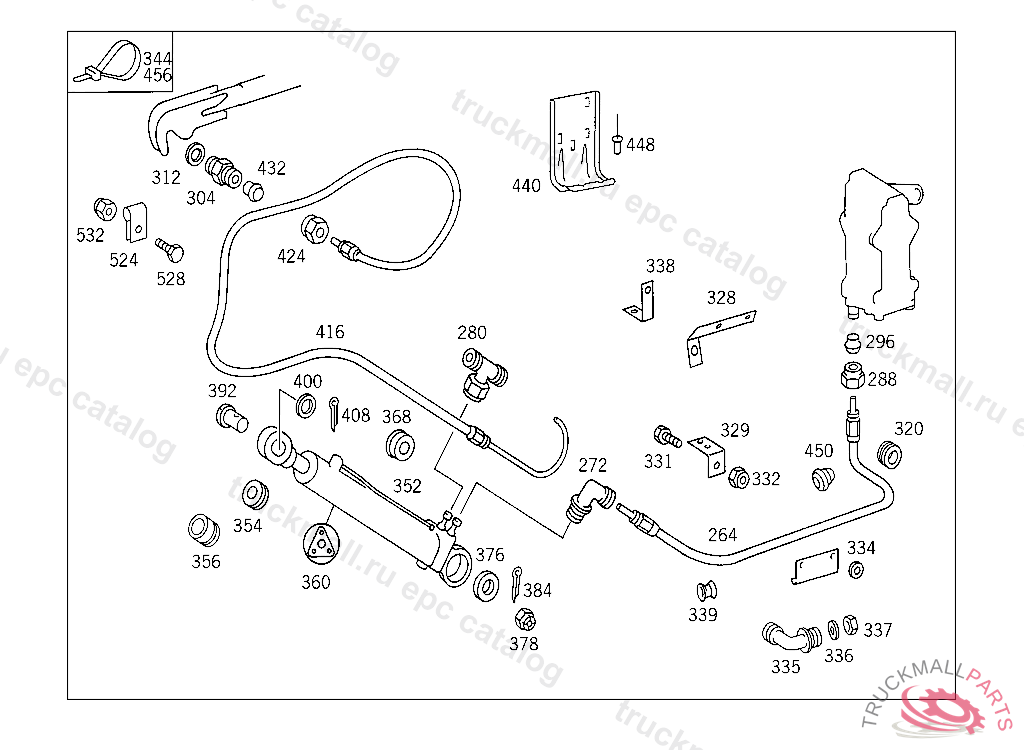

Поз.
Артикул
Описание
264
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
264
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER, NOT USED
264
HOSE FROM CYLINDER TO PUMP
264
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
264
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
264
HOSE , Replaced By: A6255531382
264
HOSE , Replaced By: A6555530582
272
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
272
FITTING FROM PUMP TO CYLINDER
280
T-FITTING. FITTING AT INJECTION PUMP
288
UNION NUT
296
SEAL CONE
296
GLAND , Replaced By: A0019901667
304
FITTING 3/2-WAY VALVE,CONNECTION: "30"
312
SEAL RING LINE CONNECTION
320
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
328
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
328
BRACKET AT CAB SIDE MEMBER
329
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
331
SCREW BRACKET TO SIDE MEMBER
331
SCREW , Replaced By: N304017010002
332
NUT , Replaced By: N910113010000
332
NUT STRAP TO BRACKET
334
WASHER , Replaced By: N000125008443
334
WASHER EXHAUST MUFFLER TO STRAP
335
FITTING OIL LINE CONNECTION
336
WASHER
337
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
338
BRACKET SENSOR CABLE TO FRONT AXLE
339
GROMMET HIGH PRESSURE HOSE THRU FRAME
339
GROMMET FOR PASSAGE OF LINE
339
GROMMET HIGH PRESSURE HOSE THRU FRAME
344
LOOM TIE LINE MOUNTING 280 MM
344
LOOM TIE LINE MOUNTING
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER,K 115007
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER
352
CYLINDER POWER CYLINDER, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
352
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
352
CYLINDER , Replaced By: A0015534205, +001A0005537901
352
CYLINDER , Replaced By: A0015534805
352
CYLINDER , Replaced By: A0015534605
352
CYLINDER , Replaced By: A0015534205
354
GUIDEWEBER,TO 001 553 45 05
354
GUIDEWEBER,TO 000 553 75 05, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
354
GUIDEWEBER,TO 000 553 87 05
356
FITTING
360
GASKET KIT HYDRAULIC CYLINDER WEBER
360
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
360
GASKET KIT HYDRAULIC CYLINDER WEBER,TO 001 553 68 05
360
GASKET KIT HYDRAULIC CYLINDER HUNGER
360
GASKET KIT HYDRAULIC CYLINDER WEBER,TO 000 553 87 05
360
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
360
GASKET KIT HYDRAULIC CYLINDER POWER PACK
360
GASKET KIT , Replaced By: A0015535005
360
GUIDE , Replaced By: A0015535105
368
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
376
WASHER HYDRAULIC CYLINDER TO CAB
376
WASHER HYDRAULIC CYLINDER TO CAB
376
WASHER HYDRAULIC CYLINDER TO CAB
378
NUT LEVER
378
NUT , Replaced By: N000979016008
384
COTTER PIN6,3X36 MM
384
COTTER PIN STRAP TO SUPPORT
392
PIN HYDRAULIC CYLINDER TO SWIVEL ARM
400
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
408
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
416
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
416
HOSE FROM HYDRAULIC LINE TO CYLINDER
416
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
416
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
416
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
424
UNION NUT
432
SEAL CONE
432
GLAND , Replaced By: A0019901667
440
BRACKET HIGH PRESSURE HOSE TO CAB
448
RIVET , NOT USED
450
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
456
LOOM TIE LINE MOUNTING 280 MM
456
LOOM TIE LINE MOUNTING
524
CLAMP LINE MOUNTING
528
SCREW CAB FLOOR COVERING M 6X25
532
NUT PUMP TO BRACKET
532
NUT , Replaced By: N913004006001
999
PUMP (HAND PUMP)
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
BRACKET HIGH PRESSURE HOSE
999
BRACKET HAND PUMP
999
BRACKET HAND PUMP
999
PIN HYDRAULIC CYLINDER TO ROCKER ARM
999
BRACKET HAND PUMP
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008040
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
