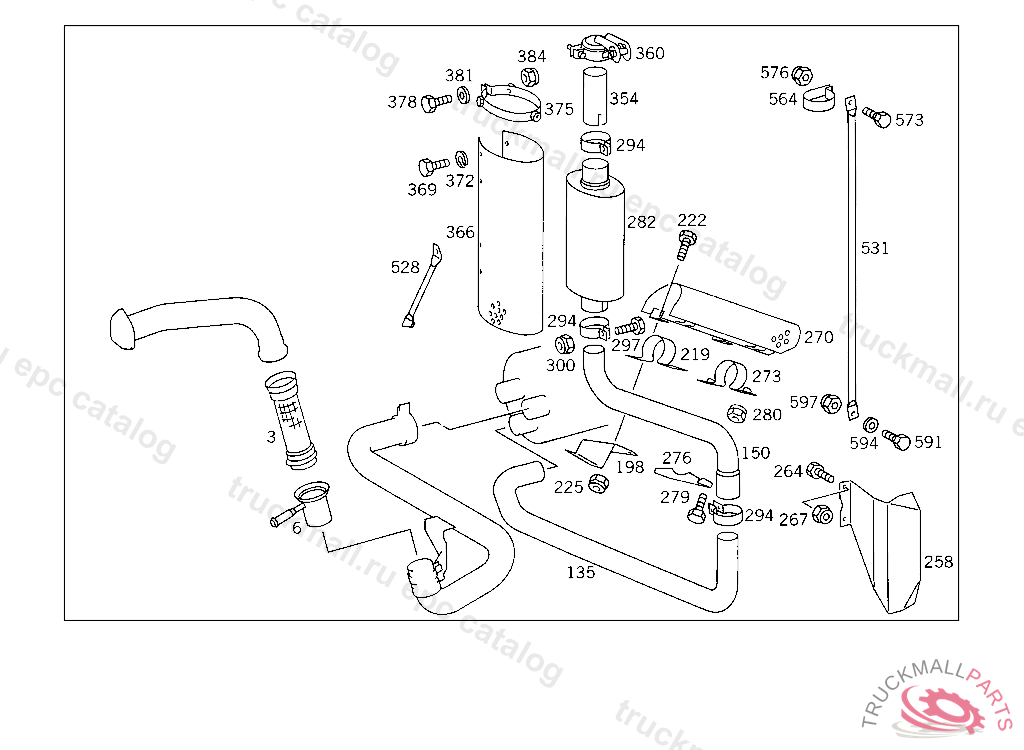

Поз.
Артикул
Описание
3
FLEXIBLE METAL TUBE FRONT
3
FLEXIBLE METAL TUBE FRONT
3
FLEXIBLE METAL TUBE CONNECTOR
3
FLEXIBLE METAL TUBE CONNECTOR
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
135
INTERMEDIATE PIECE EXHAUST PIPE TO MUFFLER,5 953233K 035196
135
REAR EXHAUST PIPE
135
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
135
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
150
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
150
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
150
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
198
BRACKET EXHAUST PIPE TO FENDER
198
BRACKET EXHAUST PIPE TO FENDER
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP EXHAUST PIPE TO BRACKET
219
CLAMP HEAT SHIELD TO TAILPIPE
219
CLAMP , Replaced By: A4374920440
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW PIPE CLAMP
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW PIPE CLAMP
222
SCREW , Replaced By: N304017008021
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW BRACKET TO CROSS CONNECTION STRUT
222
SCREW , Replaced By: N304017008034
222
SCREW CLAMP TO BRACKET,5 597426
222
SCREW , Replaced By: N910142008009
225
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
225
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
225
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
225
NUT , Replaced By: N913004008001
225
NUT BRACKET TO BRACKET
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE FUEL TANK
258
PROTECTIVE PLATE (HEAT SHIELD) 510 MM
258
PROTECTIVE PLATE (HEAT SHIELD)
264
SCREW BRACKET TO SIDE MEMBER
264
SCREW BRACKET TO SIDE MEMBER
264
SCREW BRACKET TO SIDE MEMBER
264
SCREW , Replaced By: N304017010002
264
SCREW EXHAUST PIPE TO SIDE MEMBER
264
SCREW EXHAUST PIPE TO SIDE MEMBER
267
NUT STRAP TO BRACKET
267
NUT STRAP TO BRACKET
267
NUT STRAP TO BRACKET
267
NUT , Replaced By: N910113010000
267
NUT EXHAUST PIPE TO SIDE MEMBER
267
NUT EXHAUST PIPE TO SIDE MEMBER
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
270
PROTECTIVE PLATE (HEAT SHIELD)
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP HEAT SHIELD TO TAILPIPE
273
CLAMP , Replaced By: A4374920440
273
CLAMP , Replaced By: A3434920340
276
BASE PLATE HEAT SHIELD TO TAILPIPE
276
BASE PLATE HEAT SHIELD TO TAILPIPE
279
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
279
SCREW , Replaced By: N910143008002
279
SCREW , Replaced By: N910142008001
279
SCREW BRACKET TO SIDE MEMBER
279
SCREW , Replaced By: N304017010002
279
SCREW BRACKET TO CROSS CONNECTION STRUT
279
SCREW , Replaced By: N304017008034
279
SCREW CLAMP TO BRACKET,5 597426
279
SCREW , Replaced By: N910142008009
280
NUT STRAP TO BRACKET
280
NUT , Replaced By: N910113010000
282
EXHAUST MUFFLER (POSTERIOR MUFFLER)
294
CLAMP EXHAUST PIPE
294
CLAMP EXHAUST PIPE
294
CLAMP EXHAUST PIPE
294
CLAMP EXHAUST PIPE
294
CLAMP EXHAUST PIPE
294
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
294
CLAMP , Replaced By: N071555090502
297
SCREW EXHAUST PIPE TO SIDE MEMBER
297
SCREW , Replaced By: N304017010002
297
SCREW BRACKET TO SIDE MEMBER
297
SCREW BRACKET TO SIDE MEMBER
297
SCREW BRACKET TO SIDE MEMBER
297
SCREW BRACKET TO SIDE MEMBER
300
NUT EXHAUST PIPE TO SIDE MEMBER
300
NUT , Replaced By: N910113010000
300
NUT STRAP TO BRACKET
300
NUT STRAP TO BRACKET
300
NUT STRAP TO BRACKET
300
NUT STRAP TO BRACKET
354
END PIECE , Replaced By: A6524929214
354
END PIECE (TAIL PIPE)
354
END PIECE , Replaced By: A6524929214
354
END PIECE (TAIL PIPE)
360
FLAP (RAIN DEFLECTOR)
360
FLAP (RAIN DEFLECTOR)
366
PROTECTIVE PLATE , Replaced By: A6504920030
366
PROTECTIVE PLATE (HEAT SHIELD)
366
PROTECTIVE PLATE (HEAT SHIELD)
369
SCREW PROTECTIVE PLATE TO CLAMP
369
WASHER PROTECTIVE PLATE TO CLAMP
369
SCREW , Replaced By: N304017008008
369
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
369
SCREW CLAMP TO BRACKET AND TO PIPE
369
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
369
SCREW CLAMP TO BRACKET AND TO PIPE
369
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
369
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
369
SCREW CLAMP TO BRACKET AND TO PIPE
369
SCREW CLAMP TO BRACKET AND TO PIPE
372
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
372
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
372
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
375
CLAMP HEAT SHIELD TO TAILPIPE
375
CLAMP HEAT SHIELD TO TAILPIPE
378
SCREW EXHAUST PIPE TO SIDE MEMBER
378
SCREW , Replaced By: N304017010002
378
SCREW BRACKET TO SIDE MEMBER
378
SCREW BRACKET TO SIDE MEMBER
378
SCREW EXHAUST PIPE TO BRACKET
378
SCREW BRACKET TO SIDE MEMBER
381
WASHER , Replaced By: N000125010532
381
WASHER RADIATOR TO RUBBER MOUNTING
381
WASHER RADIATOR TO RUBBER MOUNTING
384
NUT EXHAUST PIPE TO SIDE MEMBER
384
NUT , Replaced By: N910113010000
384
NUT STRAP TO BRACKET
384
NUT STRAP TO BRACKET
528
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
528
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
528
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
531
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
531
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
564
CLAMP EXHAUST PIPE TO BRACKET
564
CLAMP EXHAUST PIPE TO BRACKET
564
CLAMP , Replaced By: A6454921140
564
CLAMP , Replaced By: N071555090501
564
CLAMP , Replaced By: N071555090502
573
SCREW EXHAUST PIPE TO SIDE MEMBER
573
SCREW EXHAUST PIPE TO SIDE MEMBER
573
SCREW , Replaced By: N304017010002
573
SCREW BRACKET TO SIDE MEMBER
573
SCREW BRACKET TO SIDE MEMBER
573
SCREW BRACKET TO SIDE MEMBER
573
SCREW , Replaced By: N304017008034
573
SCREW BRACKET TO CROSS CONNECTION STRUT
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW BRACKET TO CROSS CONNECTION STRUT
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
576
NUT EXHAUST PIPE TO SIDE MEMBER
576
NUT EXHAUST PIPE TO SIDE MEMBER
576
NUT , Replaced By: N910113010000
576
NUT STRAP TO BRACKET
576
NUT STRAP TO BRACKET
576
NUT STRAP TO BRACKET
576
NUT STRAP TO BRACKET
576
NUT STRAP TO BRACKET
576
NUT STRAP TO BRACKET
576
NUT , Replaced By: N913004008001
576
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
576
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
576
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
576
NUT STRAP TO BRACKET
576
NUT STRAP TO BRACKET
591
SCREW BRACKET TO SIDE MEMBER
591
SCREW BRACKET TO SIDE MEMBER,5 597425
591
SCREW BRACKET TO SIDE MEMBER,5 597425
591
SCREW , Replaced By: N304017010002
591
SCREW BRACKET TO SIDE MEMBER
591
SCREW REAR EXHAUST PIPE TO MUFFLER
591
SCREW BRACKET TO SIDE MEMBER
591
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
594
WASHER BRACKET TO SIDE MEMBER
594
WASHER BRACKET TO SIDE MEMBER
594
WASHER BRACKET TO SIDE MEMBER
594
WASHER , Replaced By: N000125010532
594
WASHER RADIATOR TO RUBBER MOUNTING
597
NUT , Replaced By: N910113014001
597
NUT BRACKET TO SIDE MEMBER
597
NUT PARTICLE FILTER M14
597
NUT PARTICLE FILTER M14
