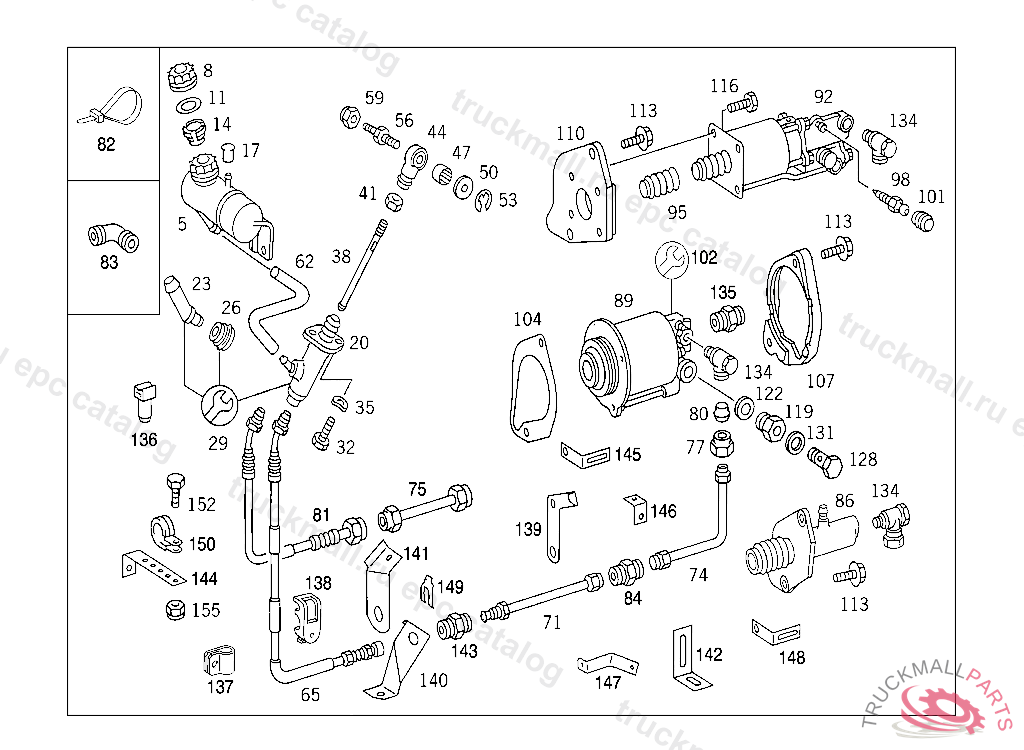

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
MASTER CYLINDER CLUTCH
20
MASTER CYLINDER CLUTCH
23
INTERMEDIATE PIECE
26
PLUG
29
REPAIR KIT CLUTCH MASTER CYLINDER
29
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER
32
SCREW COVER PLATE TO BRACKET
35
SPRING WASHER LICENSE PLATE TO BRACKET
38
ROD CLUTCH MASTER CYLINDER
41
NUT
41
NUT , Replaced By: N304035008001
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
50
WASHER BRACKET TO FENDER BRACKET
53
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
56
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
62
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
65
LINE , Replaced By: A6552904013
65
LINE CLUTCH LINE
65
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1630 MM,K 130132
71
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
71
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
74
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
75
LINE FROM MASTER CYLINDER TO HOSE 95 MM,K 130133
77
UNION NUT LINE CONNECTION
80
GLAND LINE CONNECTION
81
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 4450 MM,K 130133
81
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 3550 MM,K 130133
82
LOOM TIE LINE MOUNTING
84
FITTING (PARTS KIT),LINE RUPTURE
89
CLUTCH BOOSTERWABCO,K 037847 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
89
CLUTCH BOOSTERKNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
89
CLUTCH BOOSTER ,K 037846, Replaced By: A0002951418
102
REPAIR KIT CLUTCH BOOSTER WABCO
102
REPAIR KIT CLUTCH BOOSTER KNORR
104
COVER PLATETO 000 295 02 18 , 000 295 09 18
107
BRACKETWABCO,K 037846
107
BRACKET ,5 4119215 411922K 037846, Replaced By: A3562950240, +001N000908016001, +002N914126010052
113
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
113
SCREW FLANGE TO BELL HOUSING M 10X25,5 962906
119
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
122
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
128
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
131
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
131
SEAL RING. SEALING RING , Replaced By: N007603016401
134
FITTING , Replaced By: A0029909768
134
FITTING CLUTCH BOOSTER,CONNECTION: "4"
136
BRACKET LINE TO FRONT PANEL
137
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING, NOT USED
141
BRACKET BRACKET TO FAN SHROUD BRACKET
142
BRACKET FUEL LINES TO TRANSMISSION
143
FITTING HYDRAULIC LINE TO BRACKET,K 130132
145
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
147
BRACKET HYDRAULIC LINE TO BELL HOUSING,5 547965K 130132
148
BRACKET FUEL LINE TO BELL HOUSING
150
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
150
CLAMP ,K 147121, Replaced By: N000000000319
152
SCREW PUMP TO BRACKET
152
SCREW COVER PLATE TO BRACKET
155
NUT PUMP TO BRACKET
155
NUT , Replaced By: N913004006001
999
BRACKET BRACKET TO FAN SHROUD BRACKET,K 130132
999
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING,K 130132
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW BRACKET TO SIDE MEMBER
999
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
SCREW LICENSE PLATE TO BRACKET
999
NUT STRAP TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
CLAMP LINE MOUNTING
