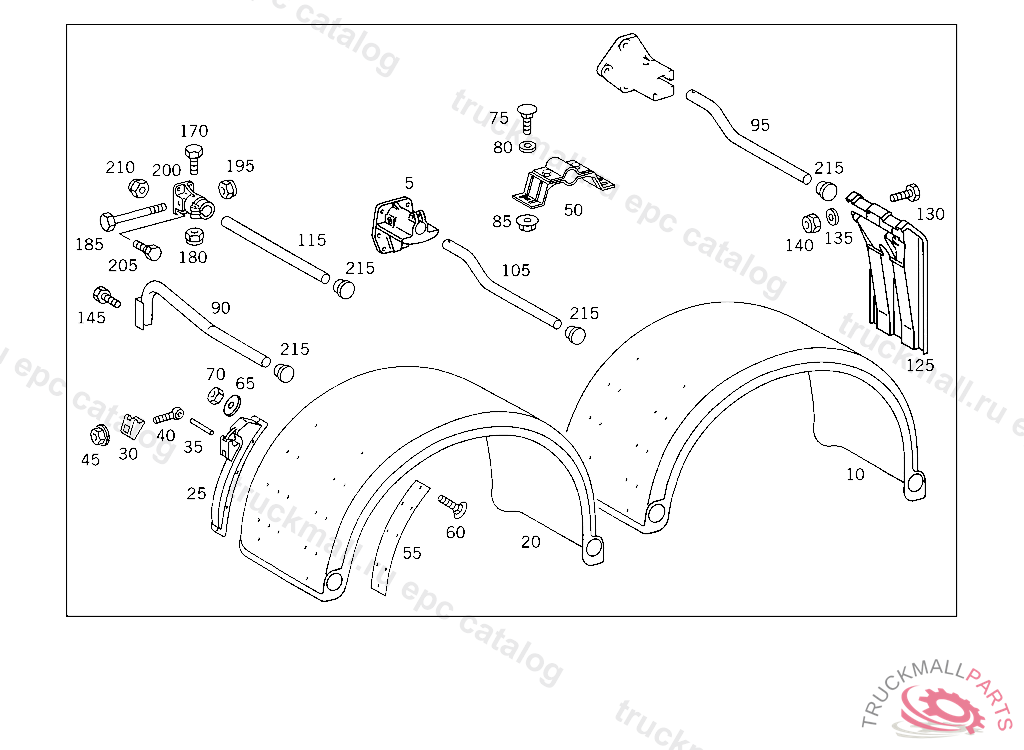

Поз.
Артикул
Описание
5
HELPER SPRING BRACKET REAR AXLE HELPER SPRING
10
FENDER REAR WHEEL 660X660,5 952572
10
FENDER REAR AXLE,5 952573
20
FENDER STEERED AXLE,5 952572
20
FENDER , TO BE ADAPTED DURING ASSEMBLY
25
BRACKET FENDER
30
CLAMPING PIECE
35
RIVET
40
SCREW
45
NUT
50
BRACKET ,K 104588
55
REINFORCEMENT FENDER
60
SCREW BRACKET TO REAR FENDER
65
WASHER COMPRESSED AIR LINE TO BRACKET
65
WASHER , Replaced By: N009021006208
70
NUT BALL PIVOT TO LEVER
75
SCREW BRACKET TO FENDER,K 104588
75
SCREW , Replaced By: A1119900029
80
WASHER FENDER BRACKET TO FENDER, Replaced By: A0049902582
80
WASHER BRACKET TO FENDER,K 104588
85
NUT STRAP TO BRACKET
90
BRACKET LEFT FENDER
90
BRACKET RIGHT FENDER
95
BRACKET FENDER TO BEARING BRACKET, REAR
95
BRACKET , Replaced By: A6525222240
95
BRACKET TAIL LAMP
95
BRACKET LEFT AND RIGHT FRONT
105
BRACKET FENDER TO BEARING BRACKET, FRONT, TO BE ADAPTED DURING ASSEMBLY
115
BRACKET LEFT AND RIGHT,5 453765
125
BRACKET TAIL LAMP,K 057593
125
BRACKET FENDER/TAIL-LAMP FIXTURE
130
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
130
SCREW , Replaced By: N304014008001
135
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
140
NUT , Replaced By: N913004008001
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
145
SCREW CONSOLE TO SIDE MEMBER
170
SCREW RADIATOR M 10X45
180
NUT STRAP TO BRACKET
180
NUT , Replaced By: N910113010000
185
SCREW VALVE TO BRACKET, Replaced By: N304014008002
185
SCREW VALVE TO BRACKET
195
NUT , Replaced By: N913004008001
195
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
BEARING BRACKET , 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
205
SCREW REAR EXHAUST PIPE TO MUFFLER
205
SCREW EXHAUST PIPE TO BRACKET
205
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
205
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
210
NUT , Replaced By: N910113010000
210
NUT STRAP TO BRACKET
215
EXPANSION PLUG BRACKET
999
PART NAME MISSING RIGHT REAR FENDER,THREE-PART, ONLY APPLICABLE TO BM 656.122,123,172
999
PART NAME MISSING LEFT REAR FENDER,THREE-PART, ONLY APPLICABLE TO BM 656.122,123,172
999
BRACKET
999
BRACKET
999
BRACKET
999
BRACKET
