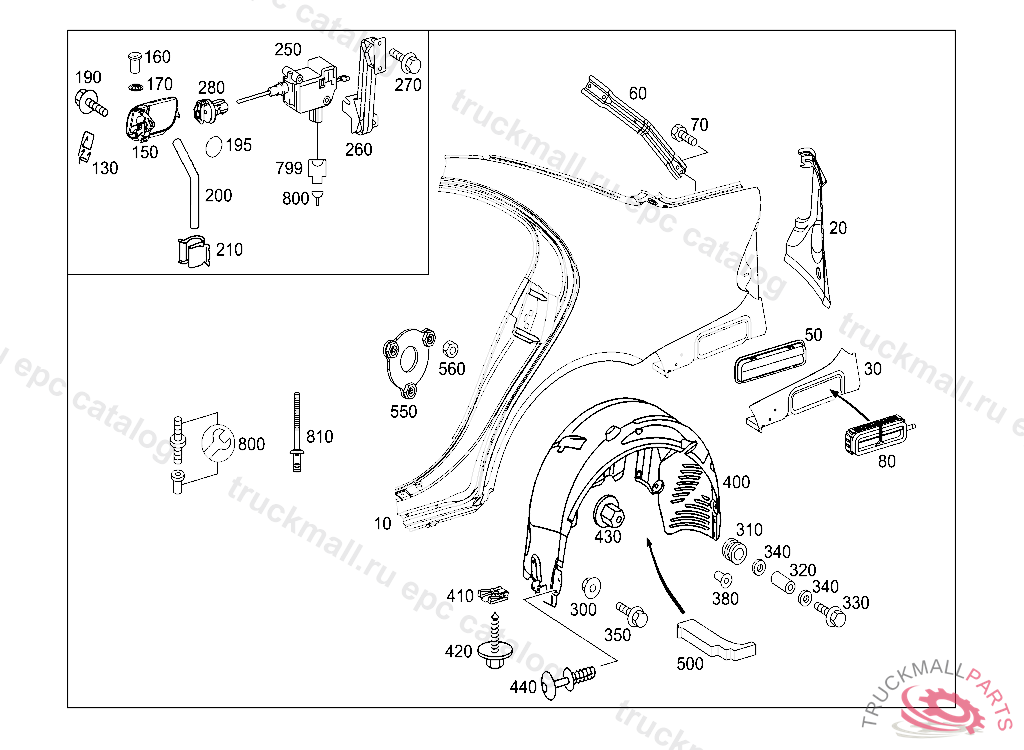

Поз.
Артикул
Описание
10
REAR FENDER LEFT
10
REAR FENDER RIGHT
10
REAR FENDER RIGHT
20
STIFFENING OUTER RIGHT REAR LAMP MOUNTING
20
STIFFENING INNER RIGHT REAR LAMP MOUNTING
20
STIFFENING OUTER LEFT REAR LAMP MOUNTING
20
STIFFENING INNER LEFT REAR LAMP MOUNTING
30
BOTTOM REAR LEFT
30
BOTTOM REAR RIGHT
50
FLAP BREATHER TO REAR FENDER IN BUMPER AREA
60
STRUT RIGHT
60
STRUT LEFT
60
STRUT LEFT, Replaced By: A2116390343
70
SCREW COVER PLATE TO COVER PLATE M 6 X 12
80
ANTENNA LEFT REAR AIR OUTLET FLAP
80
ANTENNA RIGHT REAR VENT FLAP
130
SPRING FILLER NECK FLAP
150
FLAP TANK FLAP
150
FLAP TANK FLAP
160
PIN TANK FLAP
170
ORNAMENTAL MOLDING CLIP TANK FLAP
190
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
195
SEAL SOUNDPROOFING
200
HOSE TANK FILLER NECK DRAIN PIPE
210
CLIP BREATHER PIPE
210
CLIP
250
ENGINE TANK FLAP OPENING
260
BRACKET TANK FLAP LOCKING MECHANISM
270
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
280
GUIDE LINKAGE, A 44719220031030 A 44719220031031 X 16865120040707, Replaced By: A2108000079, +001A2038206614
280
GUIDE FILLER NECK RECESS, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
300
NUT , Replaced By: N913023006001
310
GROMMET ACTUATOR TO BRACKET
320
SPACER ACTUATOR TO BRACKET, Replaced By: A0009923760
320
SPACER TUBE OIL LINE TO BRACKET,K 093236
330
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
330
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
340
WASHER ACTUATOR TO BRACKET
350
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
380
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
400
COVER REAR RIGHT
400
COVER REAR LEFT
410
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
420
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
430
PLASTIC NUT. NUT
440
RIVET COVERING TO SIDE MEMBER
500
INSULATION RIGHT REAR WHEELHOUSE
500
INSULATION LEFT REAR WHEELHOUSE
550
FLANGE FILLING VALVE
560
WELD NUTM5
799
PLUG HOUSING LAMELLAR ROOF 2-PIN JPT
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
800
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
800
CONTACT SPRING0.5-1.0 MM2
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
