Mercedes A0019903703 - Болт

SLK 350 172.457

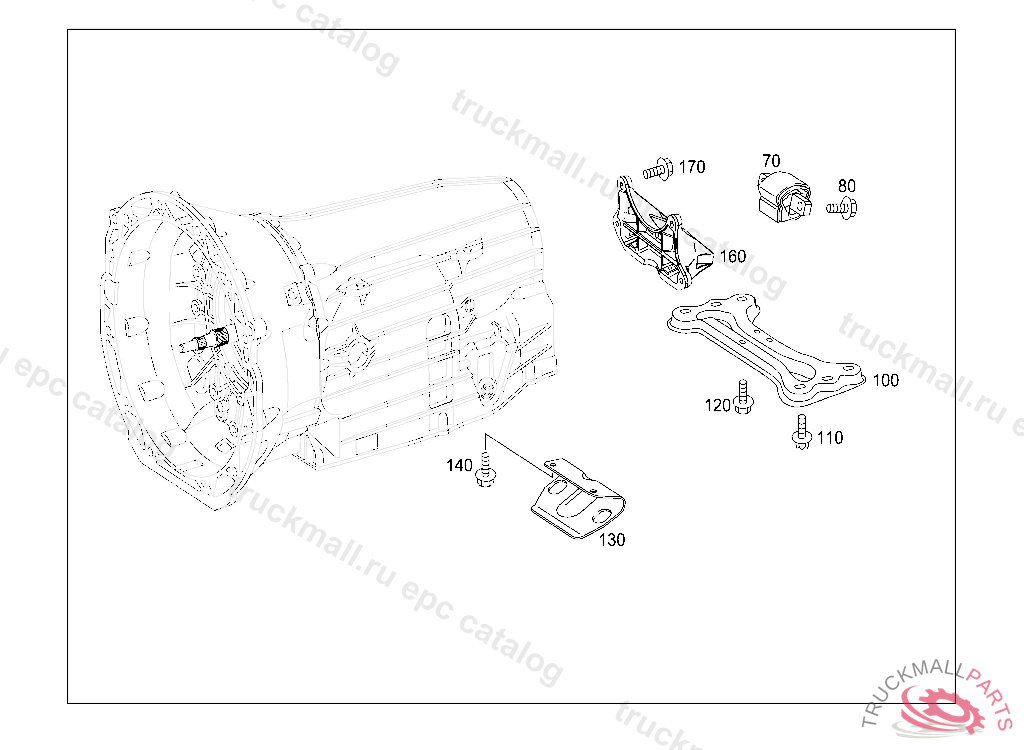

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 2

Поз.
Артикул
Описание
70
A2122400818
RUBBER BUSHING REAR, F 78951620111003
80
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
100
A1722420301
ENGINE MOUNT REAR
110
A0019903703
BOLT ENGINE REAR SUPPORT TO FRAME M10X22
110
A0019907436
BOLT ENGINE REAR SUPPORT TO FRAME, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019903703
120
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
130
A1712420034
SCREENING PLATE TO TRANSMISSION END, TO ENGINE SUPPORT REAR
140
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
160
A2052420340
BRACKET AT TRANSMISSION
160
A2112420340
BRACKET AT TRANSMISSION
170
A0049903412
BOLT BRACKET TO TRANSMISSION M6X30
