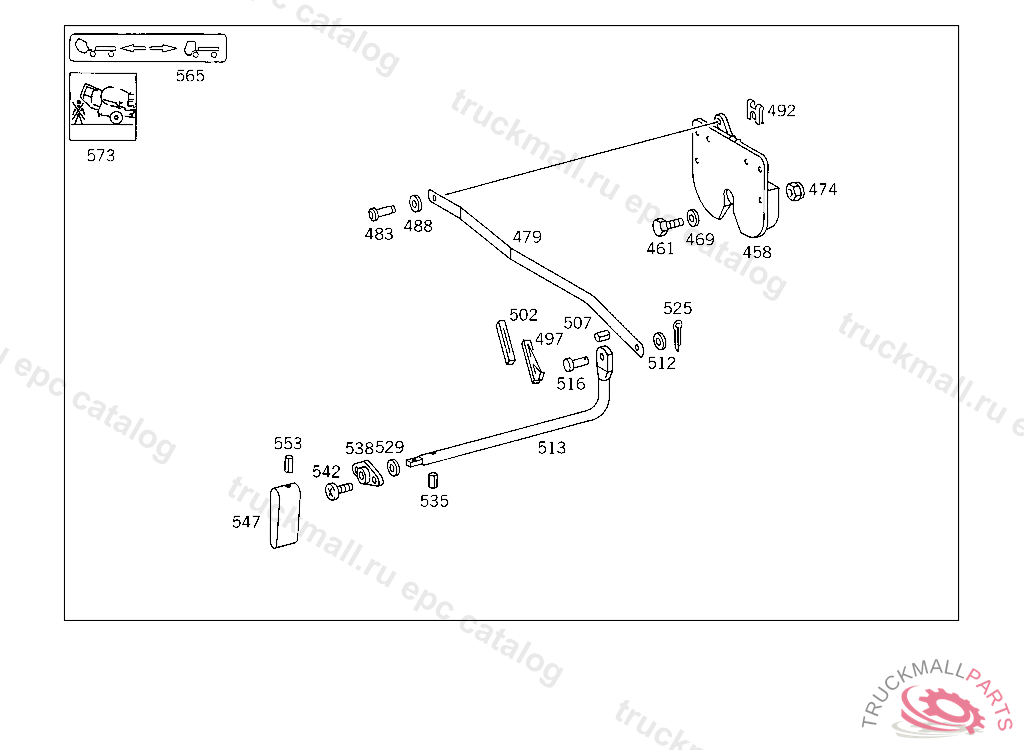

Поз.
Артикул
Описание
458
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
458
FASTENER , Replaced By: A0008902389
458
FASTENER , Replaced By: A0008902389
461
SCREW END PIECE TO EXHAUST PIPE M 10X25
461
SCREW CENTRAL LOCK TO CAB M 10X16
469
WASHER RADIATOR TO RUBBER MOUNTING
469
WASHER , Replaced By: N000125010532
474
NUT , Replaced By: N910113010000
474
NUT STRAP TO BRACKET
479
ROD CAB LOCKING MECHANISM, TO BE ADAPTED DURING ASSEMBLY
483
PIN PULL TO FASTENER
488
WASHER BRACKET TO CROSS MEMBER
492
LOCK , Replaced By: N912002008003
492
LOCK PULL TO FASTENER
497
BRACKET ROD THRU CAB
502
SEAL ROD THRU CAB
507
CLAMPING SLEEVE ROD TO BRACKET
512
WASHER BRACKET TO CROSS MEMBER
513
LEVER CAB LOCKING MECHANISM,5 287191
516
PIN LEVER TO ROD
525
COTTER PIN PULL ROD TO LEVER
529
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
529
WASHER , Replaced By: N000125015019
535
CLAMPING SLEEVE , Replaced By: N001481005039
535
CLAMPING SLEEVE LEVER MOUNTING
538
BUSHING LEVER TO CAB
542
SCREW BUSHING AND LEVER TO CAB
547
HANDLE CAB LOCKING MECHANISM
553
CLAMPING SLEEVE , Replaced By: N001481005039
553
CLAMPING SLEEVE LEVER MOUNTING
565
GUMMED LABEL CAB LOCKING MECHANISM
573
GUIDE SIGN DANGER AREA IN FRONT OF TILTED CAB
999
RIVET BUSHING AND LEVER TO CAB
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
BUSHING TILTING LEVER
999
PIN LEVER
