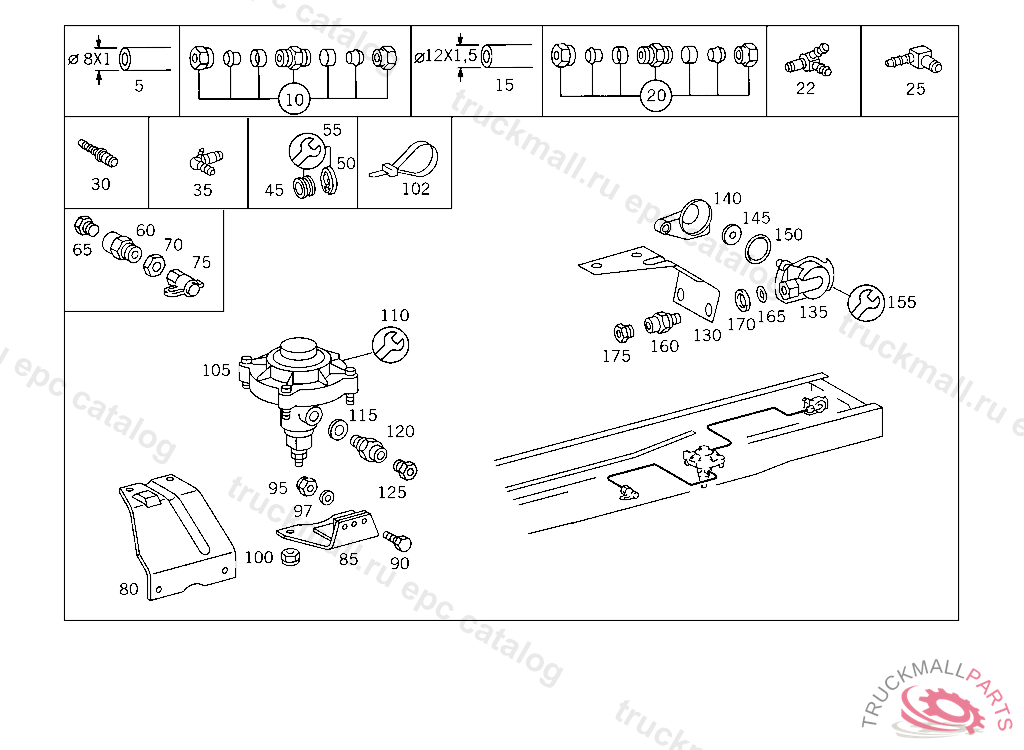

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
FITTING , Replaced By: A0029905971
10
FITTING (PARTS KIT),LINE RUPTURE
15
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
15
HOSE , Replaced By: A0009872827
20
FITTING , Replaced By: A0029906171
20
FITTING (PARTS KIT),LINE RUPTURE
22
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
25
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
25
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
30
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
35
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
45
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
50
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
55
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
60
ADAPTER FITTING LINE CONNECTION TO ENGINE
60
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
65
SCREW. UNION SCREW LINE CONNECTION
70
NUT CHECK VALVE TO AIR RESERVOIR
75
TEST CONNECTION
75
TEST CONNECTION BULKHEAD FITTING
75
TEST CONNECTION BULKHEAD FITTING,CONNECTION: "10",SCHAEFER
75
TEST CONNECTION , Replaced By: A0004312931
80
BRACKET TRAILER CONTROL VALVE TO APPARATUS SUPPORT
85
BRACKET
85
BRACKET TRAILER CONTROL VALVE,5 298636
85
BRACKET TRAILER CONTROL VALVE
85
BRACKET TRAILER CONTROL VALVE TO BRACKET
85
BRACKET TRAILER CONTROL VALVE
90
SCREW BRACKET TO SIDE MEMBER
90
SCREW BRACKET TO SIDE MEMBER
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
90
SCREW SHOCK ABSORBER TO CONSOLE
90
SCREW BRACKET TO SIDE MEMBER
90
SCREW , Replaced By: N304017008042
90
SCREW , Replaced By: N304017010002
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
95
NUT , Replaced By: N913004008001
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
97
WASHER , Replaced By: N000125010532
97
WASHER RADIATOR TO RUBBER MOUNTING
100
NUT STRAP TO BRACKET
100
NUT , Replaced By: N910113010000
102
LOOM TIE LINE MOUNTING 280 MM
105
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
105
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
110
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
110
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
115
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
120
FITTING LINE CONNECTION
125
SCREW. UNION SCREW LINE CONNECTION
130
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
130
BRACKET , Replaced By: A3464290940
135
BRAKE LINE COUPLING AT REAR CROSS MENBER
135
BRAKE LINE COUPLING AT REAR CROSS MENBER
135
BRAKE LINE COUPLING AT REAR CROSS MENBER
140
COVERWABCO
145
VALVE CONEBOSCH
150
SEAL RINGTO 000 429 75 30
155
REPAIR KITKNORR
160
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
160
FITTING BRAKE LINE COUPLING TO REAR CROSS MEMBER
165
O-RING CHECK VALVE TO AIR RESERVOIR
170
THRUST RING CHECK VALVE TO AIR RESERVOIR
170
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
175
SCREW. UNION SCREW LINE CONNECTION
999
REPAIR KITWABCO
