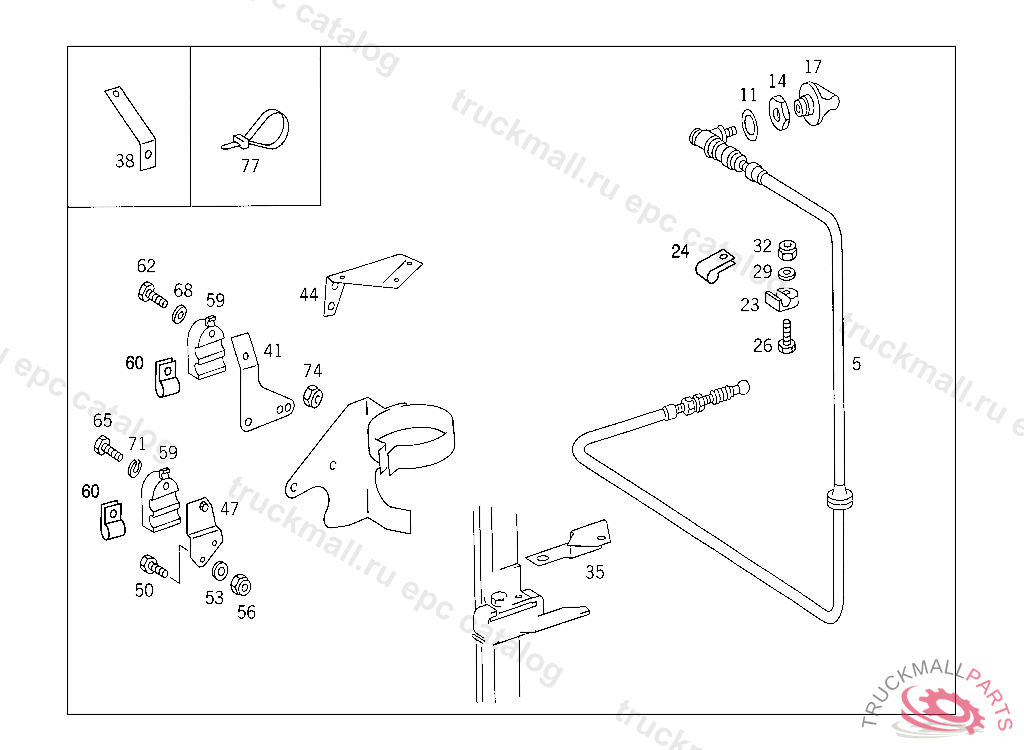

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
5
WIRE CABLE MANUAL CONTROL
11
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
14
NUT WIRE CABLE TO INSTRUMENT PANEL
17
KNOB IDLING ADJUSTMENT
23
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
24
CLAMP ,K 147121, Replaced By: N000000000319
24
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
26
SCREW , Replaced By: A0029903712
26
SCREW , Replaced By: N000000001149
26
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
NUT , Replaced By: N913004006001
32
NUT PUMP TO BRACKET
35
BRACKET WIRE CABLE TO RADIATOR MOUNTING CONSOLE
38
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
41
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
44
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
47
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
50
SCREW , Replaced By: N304017006020
50
SCREW LICENSE PLATE TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
WASHER COMPRESSED AIR LINE TO BRACKET
56
NUT , Replaced By: N913004006001
56
NUT PUMP TO BRACKET
59
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
60
CLAMP ,K 147121, Replaced By: N000000000319
60
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
60
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
62
SCREW CAB FLOOR COVERING M 6X25
65
SCREW , Replaced By: A0029903712
65
SCREW , Replaced By: N000000001149
65
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
65
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
68
WASHER COMPRESSED AIR LINE TO BRACKET
71
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
74
NUT , Replaced By: N913004006001
74
NUT PUMP TO BRACKET
74
NUT PUMP TO BRACKET
77
LOOM TIE LINE MOUNTING
77
LOOM TIE LINE MOUNTING 280 MM
