Поз.
Артикул
Описание
5

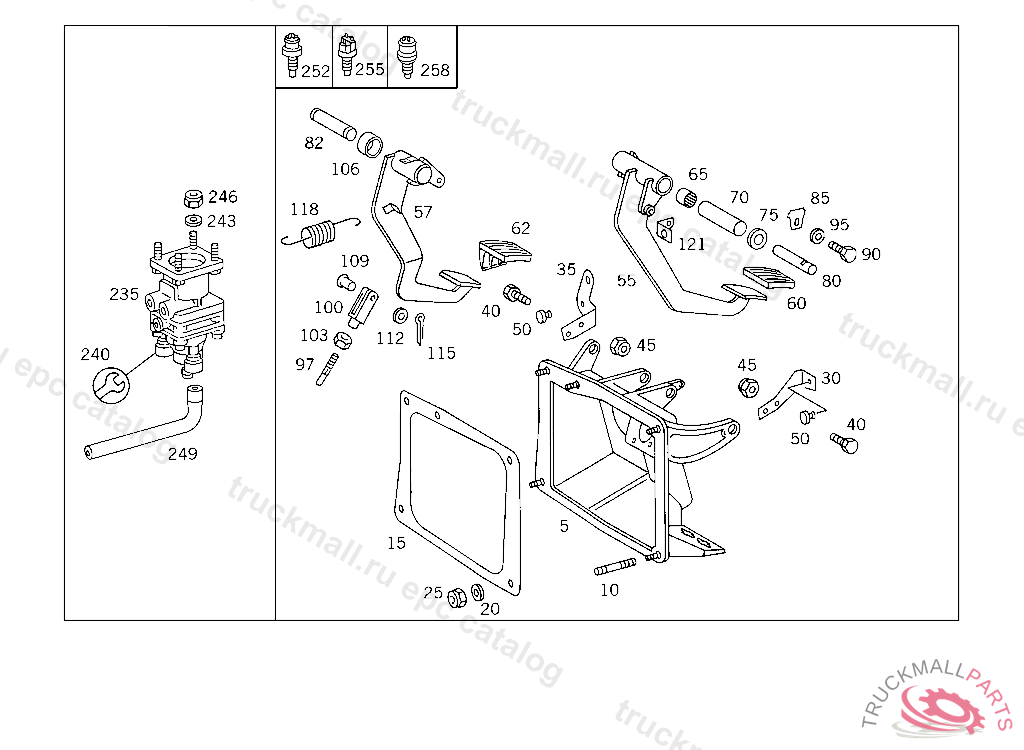

BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
10
STUD
15
GASKET BEARING BRACKET TO FIRE WALL
20
WASHER EXHAUST MUFFLER TO STRAP
20
WASHER , Replaced By: N000125008443
25
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
25
NUT , Replaced By: N913004008001
30
STOP CLUTCH PEDAL,5 957975
35
STOP BRAKE PEDAL
40
SCREW COVER PLATE TO BRACKET
45
NUT PUMP TO BRACKET
45
NUT , Replaced By: N913004006001
50
STOP CLUTCH PEDAL AND BRAKE PEDAL
55
PEDAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 957975, Replaced By: A6572900516
57
PEDAL BRAKE
60
PAD CLUTCH PEDAL
62
PAD BRAKE PEDAL
65
NEEDLE BEARING CLUTCH PEDAL
65
NEEDLE BEARING CLUTCH PEDAL
70
SPACER TUBE CLUTCH PEDAL
75
WASHER CLUTCH PEDAL TO BEARING BRACKET
80
PIN CLUTCH PEDAL TO BEARING BRACKET
82
PIN BRAKE PEDAL TO BEARING BRACKET
85
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
90
SCREW PUMP TO BRACKET
90
SCREW , Replaced By: N304017006016
95
WASHER COMPRESSED AIR LINE TO BRACKET
95
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
97
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
97
ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732920032, +001N071752008003
100
YOKE OPERATING ROD,K 202311
103
NUT
103
NUT , Replaced By: N304035008001
106
BUSHING BRAKE PEDAL
106
BUSHING , Replaced By: A1242920050
109
PIN ROD TO BRAKE PEDAL
112
WASHER BRACKET TO CROSS MEMBER
115
COTTER PIN LEVER TO ROD
115
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
118
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
121
ANGLE AT CLUTCH PEDAL UNIT
235
BRAKE VALVE (SERVICE BRAKE VALVE) GRAU
235
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
235
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
235
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
235
BRAKE VALVE"KNORR"
235
BRAKE VALVE"BOSCH", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
235
BRAKE VALVE"WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
240
REPAIR KIT SERVICE BRAKE VALVE BOSCH
240
REPAIR KIT SERVICE BRAKE VALVE WABCO
240
REPAIR KIT , Replaced By: A0004308506
240
REPAIR KIT"WABCO"
240
REPAIR KIT , Replaced By: A0004308406
243
WASHER EXHAUST MUFFLER TO STRAP
243
WASHER , Replaced By: N000125008443
246
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
246
NUT , Replaced By: N913004008001
249
HOSE BRAKE VALVE,CONNECTION: "30"
252
SWITCH STOP LIGHT
255
SWITCH STOP LIGHT EMR
258
SWITCH CLUTCH ACTUATION
999
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET
999
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
999
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
999
BRACKET BRACKET TO FAN SHROUD BRACKET
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
PAD , Replaced By: N040621014200
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
