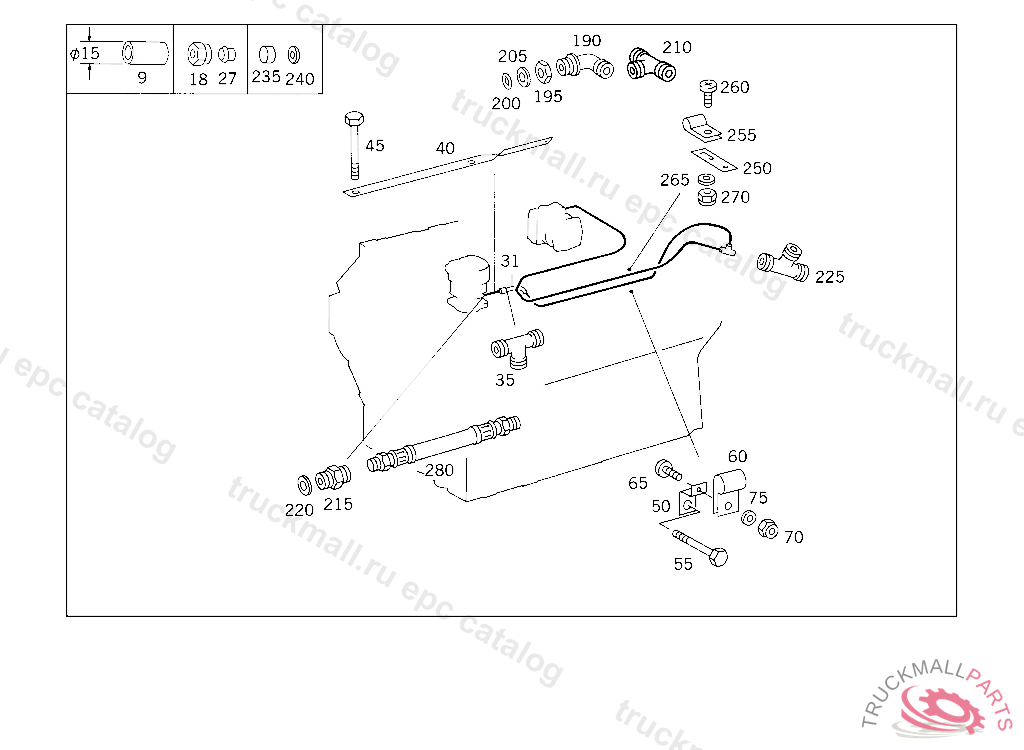

Поз.
Артикул
Описание
9
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
18
UNION NUT LINE CONNECTION
18
UNION NUT BUTT SCREW CONNECTION
18
UNION NUT BUTT SCREW CONNECTION
18
UNION NUT LINE CONNECTION
27
GLAND LINE CONNECTION
31
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
35
T-FITTING LINE CONNECTIONS
40
BRACKET
45
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
50
BRACKET
55
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
55
SCREW , Replaced By: N000961016065
60
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
60
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
60
CLAMP DELIVERY AND SUCTION LINES TO STEERING
60
CLAMP , Replaced By: A6739950001
65
SCREW CLAMP MOUNTING M 6X16
65
SCREW CLAMP MOUNTING M 6X16
65
SCREW CLAMP MOUNTING M 6X16
65
SCREW , Replaced By: N000000001146
70
NUT PUMP TO BRACKET
70
NUT PUMP TO BRACKET
70
NUT PUMP TO BRACKET
70
NUT , Replaced By: N913004006001
75
WASHER COMPRESSED AIR LINE TO BRACKET
75
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
190
ELBOW FITTING , Replaced By: A0039901671
190
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
190
ELBOW FITTING , Replaced By: A0039901671
190
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
190
ELBOW FITTING , Replaced By: A0039901671
190
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
190
ELBOW FITTING , Replaced By: A0039901671
190
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
195
NUT CHECK VALVE TO AIR RESERVOIR
195
NUT SUCTION LINE TO OIL PUMP
195
NUT SUCTION LINE TO OIL PUMP
195
NUT SUCTION LINE TO OIL PUMP
200
SEAL RING LINE CONNECTION
200
SEALING CORD SUCTION LINE TO OIL PUMP
200
SEAL RING LINE CONNECTION
200
SEAL RING LINE CONNECTION
205
THRUST RING CHECK VALVE TO AIR RESERVOIR
205
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
205
THRUST RING SUCTION LINE TO OIL PUMP
205
THRUST RING SUCTION LINE TO OIL PUMP
210
T-FITTING LINE CONNECTION
210
T-FITTING LINE CONNECTION
210
T-FITTING LINE CONNECTION TO AIR COMPRESSOR
215
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
215
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
215
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
215
DOUBLE FITTING LINE CONNECTION TO AIR COMPRESSOR
220
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
225
T-FITTING BETWEEN THE LINES
235
THRUST RING BUTT SCREW CONNECTION
240
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
240
SEAL RING , Replaced By: N007603012121
250
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
250
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
250
BRACKET , Replaced By: A3604293140
255
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
255
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
255
CLAMP DELIVERY AND SUCTION LINES TO STEERING
255
CLAMP , Replaced By: A6739950001
260
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
265
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
270
NUT PUMP TO BRACKET
270
NUT , Replaced By: N913004006001
280
BRAKE HOSE COMPRESSED AIR LINE TO COMPRESSED AIR LINE
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 223600
999
BRACKET ,K 223600
