Mercedes A3634750220 - ОПОРА

2648,2650,3548,3550,52482653,3553,5053 659.196

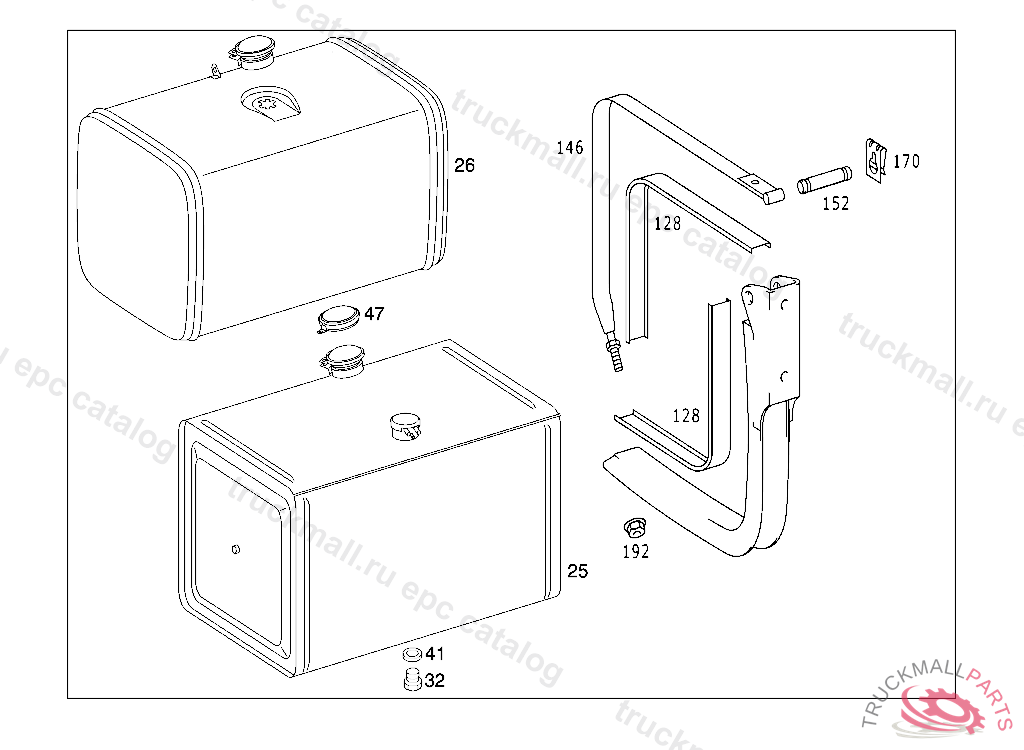

47 FUEL SYSTEM - 001 300-LITER FUEL TANK

Поз.
Артикул
Описание
25
A6244700301
FUEL TANK STEEL VERSION 300 L
26
A9414701101
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY
26
A9414700201
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9414701101
26
A0834700301
FUEL TANK , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9414700201
32
N007604014110
SCREW PLUG FUEL TANK
41
N007603014402
SEALING RING. SEAL RING FUEL TANK
41
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
47
A6154700005
FILLER CAP NON-KEY LOCKING
128
A9414751620
PAD STRAP 61 MM
128
A9414750220
PAD , Replaced By: A9414751720
128
A9414750120
PAD , Replaced By: A9414751620
128
A6254750620
PAD TANK TO CONSOLES
128
A6254750520
PAD FUEL TANK TO CONSOLE
128
A3634750120
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
128
A3634750320
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
128
A9414751720
PAD BRAKE ANCHOR 53 MM
128
A3634750220
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
146
A9414700140
STRAP FUEL TANK TO CONSOLE
152
A9444750074
PIN STRAP TO SUPPORT
152
A9414750074
PIN , Replaced By: A9444750074
170
A0109881878
CLIP STRAP TO SUPPORT
192
A0009906750
NUT STRAP TO SUPPORT
