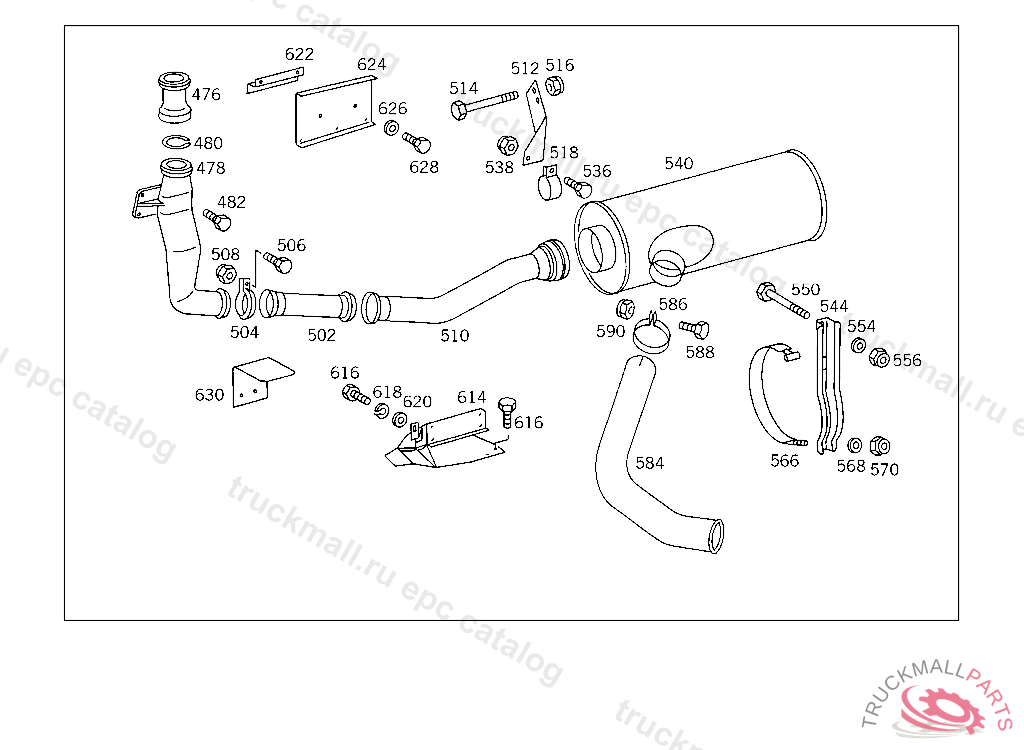

Поз.
Артикул
Описание
476
CONNECTOR
478
CONNECTOR
480
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
482
SCREW CONNECTING PIPE
502
FLEXIBLE METAL TUBE FRONT LEFT
504
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
506
SCREW , Replaced By: N304017008018
506
SCREW , Replaced By: N304017008040
506
SCREW BRACKET TO SIDE MEMBER
506
SCREW SUPPORT TO FENDER
508
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
508
NUT , Replaced By: N913004008001
510
EXHAUST PIPE
512
BRACKET EXHAUST PIPE TO CROSS MEMBER
514
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
516
NUT BRACKET TO SIDE MEMBER
516
NUT , Replaced By: N910113014001
518
CLAMP , Replaced By: N071555100501
518
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
536
SCREW , Replaced By: N304017010002
536
SCREW BRACKET TO SIDE MEMBER
538
NUT , Replaced By: N910113010000
538
NUT STRAP TO BRACKET
540
EXHAUST MUFFLER
544
BRACKET EXHAUST MUFFLER SUSPENSION
550
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
550
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
550
SCREW CONSOLE TO SIDE MEMBER
550
SCREW , Replaced By: N308676014020
554
WASHER , Replaced By: N000125015019
554
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
556
NUT BRACKET TO SIDE MEMBER
556
NUT , Replaced By: N910113014001
566
STRAP , Replaced By: A6554900942
566
STRAP PARTICLE FILTER
568
SPHERICAL WASHER STRAP TO BRACKET
570
NUT STRAP TO BRACKET
570
NUT , Replaced By: N910113010000
584
REAR EXHAUST PIPE REAR
586
CLAMP , Replaced By: N071555120502
588
SCREW , Replaced By: N304017010002
588
SCREW BRACKET TO SIDE MEMBER
590
NUT , Replaced By: N910113010000
590
NUT STRAP TO BRACKET
614
PROTECTIVE PLATE (HEAT SHIELD)
616
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
618
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
620
WASHER EXHAUST MUFFLER TO STRAP
620
WASHER , Replaced By: N000125008443
622
CLAMP HEAT SHIELD
624
PROTECTIVE PLATE (HEAT SHIELD)
626
WASHER HEAT SHIELD TO BRACKET
628
SCREW , Replaced By: N304017006016
628
SCREW PUMP TO BRACKET
630
PROTECTIVE PLATE ENGINE LEFT REAR MOUNTING
999
BULB TACHOMETER
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
UNION NUT
999
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
999
CLAMP HOSE TO FLANGE AND TO VALVE
999
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
999
CLAMP HOSE TO FITTING AND TO OIL TANK
999
CLAMP , Replaced By: N000000000667
999
ELECTRIC CABLE FROM TACHOGRAPH TO METERING GEAR SENDER UNIT,K 164867
999
CONSOLE
999
BRACKET OIL TANK
999
CONSOLE CAB,REAR LEFT AND RIGHT
999
BASE
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER
999
SCREW BRACKET TO BELL HOUSING
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008028
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW BRACKET TO CAB MOUNTING CONSOLE
999
SCREW LEAF SPRING TO STRUT, USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS
999
SCREW , Replaced By: N000961014064
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW BRACKET TO SIDE MEMBER
999
GLAND , Replaced By: A0019901667
999
CONNECTION FITTING , Replaced By: A0049971772
999
SCREW , Replaced By: A0029903712
999
CLAMP , Replaced By: N071555120502
999
CLAMP EXHAUST PIPE TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
NUT SUPPORT TO SIDE MEMBER
999
BUSHING COMPRESSOR TO SUPPORT,5 484924
999
BASE CONSOLE TO SIDE MEMBER, NOT USED
999
BRACKET RIGHT FENDER
999
BRACKET LEFT FENDER
999
BRACKET AT CAB BEARING BRACKET
999
CONSOLE , Replaced By: A3873170001
999
BRACKET
999
CONSOLE , Replaced By: A3873170001
999
CONSOLE CAB SUSPENSION,FRONT
999
BRACKET (ROLLER CARRIER)
999
BOW CAB SUSPENSION,FRONT, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
ELECTRIC CABLE , Replaced By: A6795400127
999
ELECTRIC CABLE , Replaced By: A6455400236
999
RUBBER MOUNTING REAR
999
TYPE DESIGNATION PLASTIC "1733"
999
BRACKET MANUAL PUMP BRACKET TO FRAME
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET FRONT EXHAUST PIPE,RIGHT
999
BRACKET FRONT EXHAUST PIPE,LEFT
999
BRACKET OIL TANK
999
BRACKET DELIVERY LINE TO ENGINE
999
BRACKET OIL LINE TO ENGINE
999
BRACKET
999
BRACKET , Replaced By: A6254662343
999
LINE , Replaced By: A0005516256
999
LINE FROM RETURN LINE TO OIL TANK
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
BRACKET OIL TANK
999
HOSE FROM OIL TANK TO SUCTION LINE
999
HOSE FROM RETURN LINE TO OIL TANK
999
HOSE , Replaced By: A6254660381
999
BRACKET , Replaced By: A6254668640
999
BRACKET HOSE TO OIL TANK AND TO SUCTION LINE
999
LINE , Replaced By: A0005516156
999
LINE , Replaced By: A0005516156
999
LINE , Replaced By: A0005516156
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER TO CONSOLE
999
BRACKET EXHAUST MUFFLER,REAR
999
BRACKET EXHAUST MUFFLER,REAR
999
STRAP EXHAUST MUFFLER AND STRAP TO BRACKET
999
GREASE NIPPLE RELEASE COLLAR LUBRICATION
999
CAP RELEASE BEARING LUBRICATION
999
MOUNTING CAB,LEFT,5 412153
999
MOUNTING CAB,LEFT,5 412153
999
MOUNTING , Replaced By: A6208903403
999
MOUNTING , Replaced By: A6208903503, +001A6558902903
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
BRACKET CONSOLE TO FENDER BRACKET
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
FAN SHROUD RADIATOR
999
LINE HEATING AND BREATHING
999
BRACKET AT APPARATUS SUPPORT
999
CONSOLE EXHAUST MUFFLER,FRONT
999
BRACKET AT SUPPORT
999
CONSOLE REAR EXHAUST MUFFLER 132 MM
999
STRAP EXHAUST MUFFLER TO BRACKET
999
FLEXIBLE METAL TUBE CONNECTOR
999
BEARING
999
PIN RELEASE LEVER
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
BOOT SHIFTING ROD
999
SHIFTING ROD REAR,4 8557044 921176
999
HANDLE (SHIFT LEVER HANDLE)
999
WASHER LEVER TO RELEASE SHAFT,5 285575
999
HOUSING
999
COVER RELEASE SHAFT,TOP
999
BRACKET , NOT USED
999
GASKET , Replaced By: A6555280180
999
BRACKET SHIFT LEVER UPPER PART,K040603
999
BRACKET SHIFT LEVER LOWER PART,K040603
999
CONSOLE CAB
999
CONSOLE PEDESTAL
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
STRAP AIR CLEANER
999
BRACKET FENDER AND SHOCK ABSORBER,RIGHT
999
SUPPORT , Replaced By: A6565200033
999
BRACKET LEFT FENDER
999
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
999
CONSOLE CAB SUSPENSION
999
HOSE , NOT USED
999
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
999
HOSE RELEASE COLLAR LUBRICATION 220 MM
999
BRACKET , Replaced By: A3072950840
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
999
SHIFT LEVER
999
BRACKET BOOT
999
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
999
COVER ENGINE COVERING, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
TYPE DESIGNATION"2433"
999
BOOT AIR CLEANER TO CAB
999
SPACER TUBE BRACKET TO CONSOLE
999
ROD OVER-CENTER ACTING SPRING
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
U-BOLT FRONT SPRINGS TO FRONT AXLE 212 MM,5 0251885 184732
999
SPRING RELEASE BEARING TO RELEASE LEVER
999
SPRING RETAINER SPRING TO PUSH ROD
999
LEVER CLUTCH ACTUATION,4 601610
999
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
999
SPRING RETAINER SPRING TO PUSH ROD
999
SPRING (DEAD CENTER SPRING) 35 MM
