Mercedes A3589900714 - Болт

2648,2650,3548,3550,52482653,3553,5053 659.196

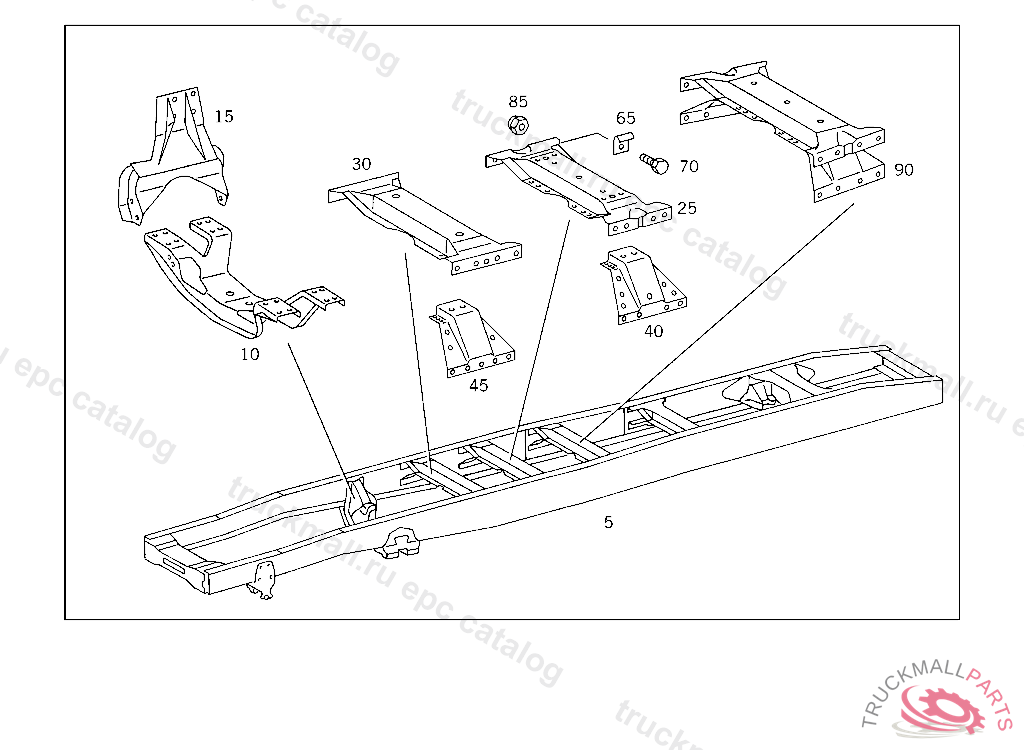

31 FRAME - 120 FRAME ASSEMBLY, SCREW CONNECTION PARTS

Поз.
Артикул
Описание
5
A0813103802
FRAME , FRAME: TO BE ORDERED AS PER DETAILED DESCRIPTION QUOTING ALSO THE IDENT-NO.
5
A0803104103
FRAME , FRAME: TO BE ORDERED AS PER DETAILED DESCRIPTION QUOTING ALSO THE IDENT-NO.
5
A0803103902
FRAME , FRAME: TO BE ORDERED AS PER DETAILED DESCRIPTION QUOTING ALSO THE IDENT-NO.
5
A0803105587
FRAME , FRAME: TO BE ORDERED AS PER DETAILED DESCRIPTION QUOTING ALSO THE IDENT-NO.
10
A6993101737
CROSS MEMBER TRANSMISSION
15
A6253121461
STRUT RIGHT TO 625 312 04 10, TO BE ADAPTED DURING ASSEMBLY
15
A6993103253
STRUT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6253121461
15
A6993103353
STRUT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6253121361
15
A6253121361
STRUT LEFT
25
A3893120125
CROSS MEMBERNO.3A
30
A6563121025
CROSS MEMBERNO.3
30
A6243120025
CROSS MEMBERNO.3A
40
A3873121961
STRUT LEFT AND RIGHT
45
A6243120261
STRUT LEFT AND RIGHT
65
A6203121584
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
70
A9429901304
SCREW APPARATUS SUPPORT TO FRAME
70
A3589900714
SCREWM 14X15X27X44
70
A3589900214
SCREWM 14X15X21X38
70
N000961014063
SCREW , Replaced By: A9429901304
85
N913004014005
NUT , Replaced By: N910113014000
85
N910113014000
NUT STEERING SUPPORT TO FRAME
90
A6253100036
CROSS MEMBER BRACKET TO FRAME,4 909153
90
A6563101336
CROSS MEMBERNO.3
