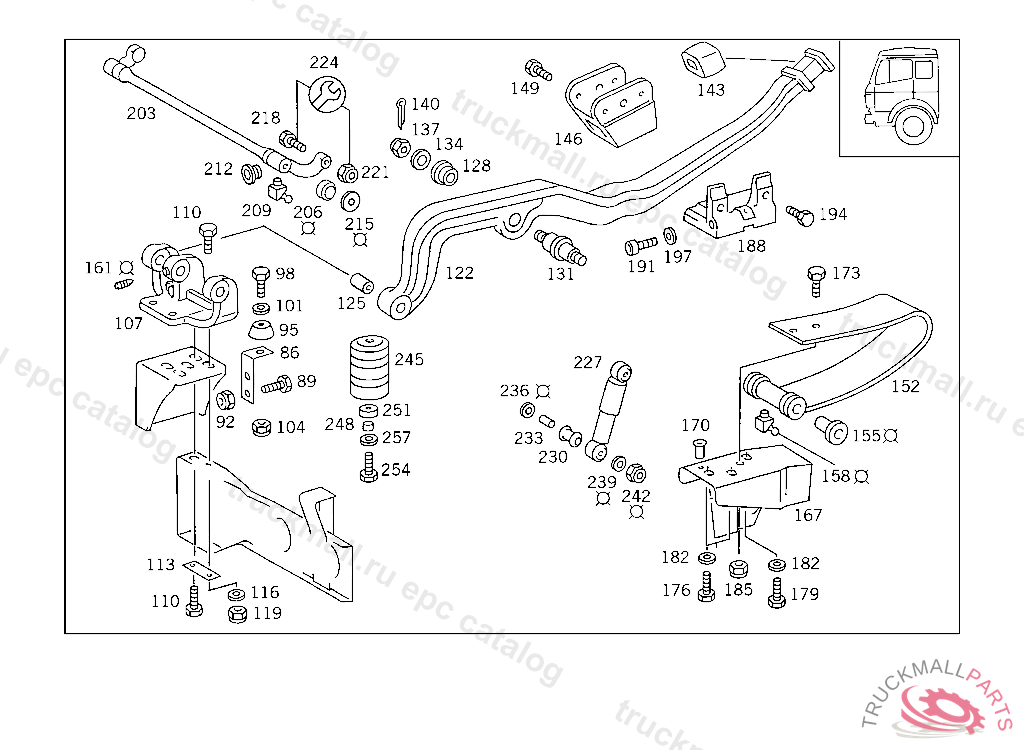

Поз.
Артикул
Описание
86
BRACKET RIGHT RUBBER BUFFER
86
BRACKET RIGHT RUBBER BUFFER
89
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
89
SCREW , Replaced By: N308676012026
92
NUT SUPPORT TO SIDE MEMBER
95
MOUNTING (RUBBER BUFFER)
98
SCREW , Replaced By: N304017008034
98
SCREW BRACKET TO CROSS CONNECTION STRUT
101
WASHER , Replaced By: N009021008213
101
WASHER BRACKET TO LEFT SIDE MEMBER
101
WASHER BRACKET TO CAB REAR PANEL
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
NUT , Replaced By: N913004008001
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
MOUNTING CAB,LEFT
107
MOUNTING CAB, RIGHT
110
SCREW MOUNTING TO CONSOLE M 14X55
110
SCREW MOUNTING TO CONSOLE M 14X35
110
SCREW , Replaced By: N308676014003
110
SCREW , Replaced By: N308676014008
110
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
113
SHIM MOUNTING TO CONSOLE
116
WASHER SPARE WHEEL CARRIER
119
NUT , Replaced By: N910113014000
119
NUT STEERING SUPPORT TO FRAME
122
LEVER (TILTING LEVER),CAB
125
BUSHING TILTING LEVER
125
BUSHING TILTING LEVER
131
PIN LEVER
134
WASHER HYDRAULIC CYLINDER TO CAB
137
NUT , Replaced By: N000979016008
137
NUT LEVER
140
COTTER PINROCKINGER TYP 260 G140
143
BUFFER TILTING LEVER
146
MOUNTING CAB TILTING LEVER
149
SCREW , Replaced By: N308676012012
149
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
152
SPRING CAB SUSPENSION,FRONT
155
BUSHING SPRING
158
GREASE NIPPLE FOR SPRING
161
HEADLESS SETSCREW FOR SPRING
167
MOUNTING SPRING AND STABILIZER,RIGHT
167
MOUNTING SPRING AND STABILIZER,LEFT
170
PIN
173
SCREW BRACKET TO CROSS CONNECTION STRUT
173
SCREW , Replaced By: N304017008034
176
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
179
SCREW MOUNTING TO CAB
182
WASHER SPARE WHEEL CARRIER
185
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
185
NUT , Replaced By: N913004008001
185
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
188
CONSOLE CAB SUSPENSION,FRONT RIGHT
188
CONSOLE CAB SUSPENSION,FRONT LEFT
191
SCREW LEFT AND RIGHT CONSOLES TO CAB
194
SCREW LEFT AND RIGHT CONSOLES TO CAB
194
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
194
SCREW , Replaced By: N308676012015
194
SCREW , Replaced By: N308676014020
197
WASHER LEFT AND RIGHT CONSOLES TO CAB
203
STABILIZER CAB SUSPENSION,FRONT, USED WITH MERCEDES-BENZ MEDIUM-LENGTH/LONG/LARGE-CAPACITY CABS
206
JOINT BEARING
206
JOINT BEARING
209
GREASE NIPPLE FOR SPRING
212
SCREW PLUG STABILIZER
215
WASHER STABILIZER TO BEARING
218
SCREW STABILIZER TO BEARING
221
NUT , Replaced By: N910113014001
221
NUT BRACKET TO SIDE MEMBER
224
REPAIR KIT CAB FRONT SUSPENSION STABILIZER
227
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
230
RUBBER MOUNTING
233
BUSHING
236
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
239
WASHER
242
NUT SUPPORT TO SIDE MEMBER
245
BUFFER (HOLLOW RUBBER SPRING),CAB
248
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
248
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
251
FLANGE HOLLOW RUBBER SPRING
254
SCREW HOLLOW RUBBER SPRING TO CAB,5 956658
254
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
254
SCREW , Replaced By: N304017010049
257
WASHER HOLLOW RUBBER SPRING
257
WASHER HOLLOW RUBBER SPRING,5 956657
