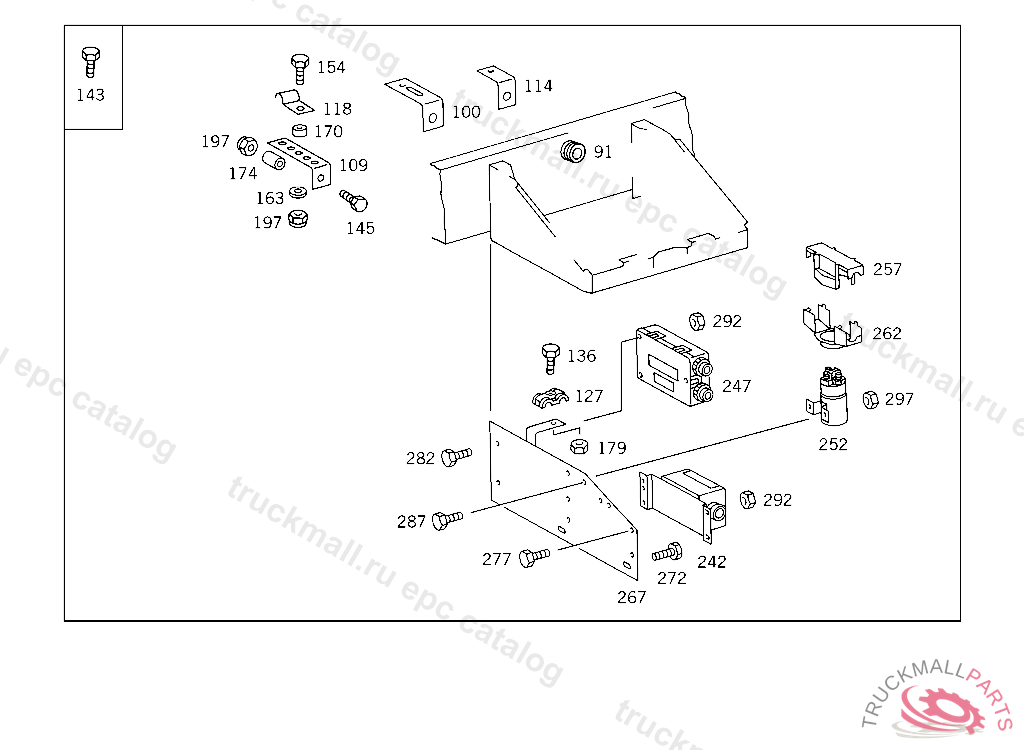

Поз.
Артикул
Описание
91
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
100
BRACKET SUPPORT TO FRAME
109
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
109
BRACKET OIL LINE MOUNTING
114
BRACKET CABLE HARNESS MOUNTING
118
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
127
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
127
CLAMP , Replaced By: A0005462675
136
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X90
136
SCREW VERTICAL TAIL PIPE BEHIND CAB
143
SCREW EXHAUST PIPE TO BRACKET
143
SCREW STRUT TO FRAME, LEFT
145
SCREW ELECTRIC CABLE TO BRACKET
145
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X75
145
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X90
145
SCREW , Replaced By: N304017006026
145
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X40
145
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X50
145
SCREW , Replaced By: N304017006026
145
SCREW APPARATUS PLATE M 6X85
154
SCREW , Replaced By: N000000000048
154
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X80
154
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X85
154
SCREW EXHAUST PIPE TO BRACKET
154
HEXAGON HEAD BOLT CONTROL UNIT TO BRACKET M6X65
163
WASHER LINE MOUNTING 18 MM / 11.5 MM
163
WASHER COMPRESSED AIR LINE TO BRACKET
163
WASHER
163
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
163
WASHER BRACKET TO LEFT SIDE MEMBER
170
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
174
SPACER TUBE BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
179
NUT BRACKET TO SIDE MEMBER
197
NUT AT FILTER BRACKET
197
NUT BALL SOCKET TO ROD
197
NUT SPRING-LOADED PUSH ROD
197
NUT PUMP TO BRACKET
197
NUT , Replaced By: N913004006001
242
CURRENT LIMITER ,K 173439
247
ELECTRONICS , Replaced By: A0235457432
247
ELECTRONICS , Replaced By: A0245453932
247
ELECTRONICS , Replaced By: A0315456232
247
CONTROL UNIT BATTERY MASTER SWITCH,K 173439
252
RELAY BATTERY MASTER SWITCH,K 173439
252
RELAY , Replaced By: A0045452005
257
CAP FOR COVER OF CONTACTS ON BATTERY CARRIER
262
CAP FOR COVER OF CONTACTS ON BATTERY CARRIER
267
BRACKET CURRENT LIMITER
272
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
272
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
272
SCREW , Replaced By: N304017008016
277
SCREW , Replaced By: N910105006023
277
SCREW COVER PLATE TO BRACKET
277
SCREW LEVER TO ENGINE CONTROL SHAFT
277
SCREW AT FILTER BRACKET
282
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X50
282
SCREW DISTRIBUTOR TO CAB
282
SCREW CYLINDER TO BRACKET
287
SCREW , Replaced By: A0009909604
287
SCREW , Replaced By: N304017005002
287
SCREW LEVER TO SHAFT
287
SCREW RELAY TO BRACKET
292
NUT BALL SOCKET TO ROD
292
NUT L.H. THREAD
297
NUT BOOT
297
NUT IN CASE OF SUBSEQUENT INSTALLATION
297
NUT , Replaced By: N304032005005
999
NUT EMERGENCY "OFF" SWITCH ON CAB REAR PANEL
999
PLUG
999
BRACKET CURRENT LIMITER,ZAR 1012/03N01,Y31203,05.01.2004
999
WASHER , Replaced By: N000433005304
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER BOOT TO CAB FLOOR
