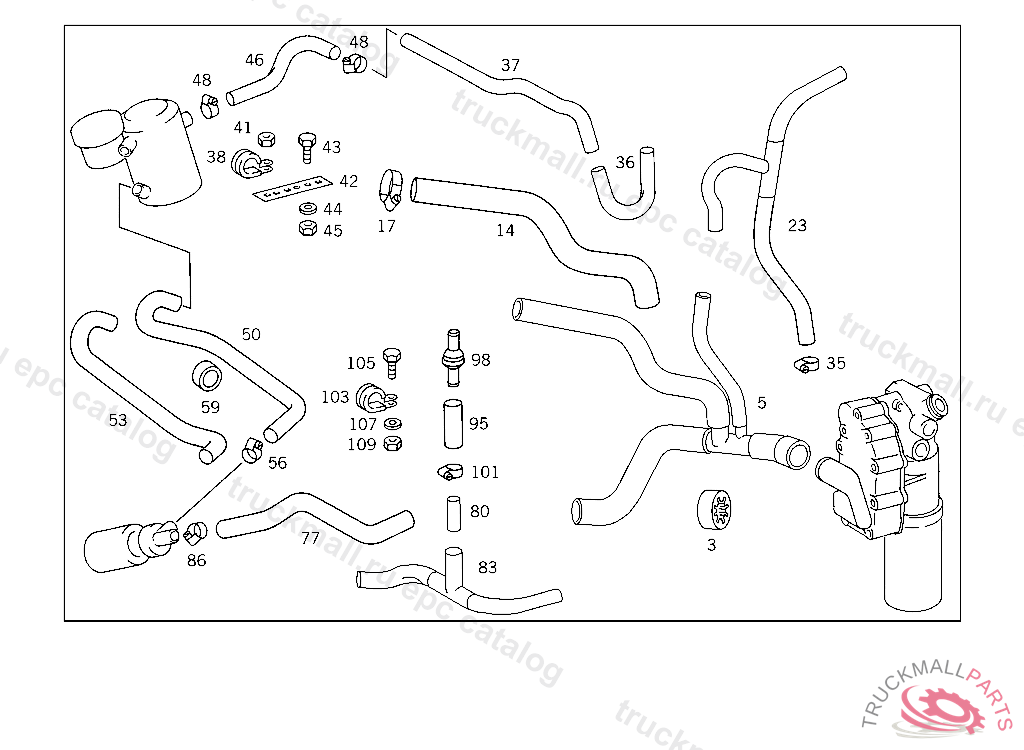

Поз.
Артикул
Описание
3
RUBBER RING
5
HOSE FROM WATER PUMP TO RADIATOR
5
HOSE FROM CONNECTING PIPE TO EXPANSION TANK, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 951016 N 000000 P 000000
5
HOSE , Replaced By: A6675992175
5
INTERMEDIATE PIECE , Replaced By: A6685002175
5
HOSE , Replaced By: A6685002175
5
HOSE , Replaced By: A6685002175
5
HOSE FROM RADIATOR TO WATER PUMP, N 000001 P 100867
14
HOSE FROM CONNECTION POINT TO EXPANSION TANK
17
CLAMP EXPANSION TANK & COOLING WATER LINE, FROM IDENT-NO. 827712, ALSO INSTALLED IN ENGINE 935766
17
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
17
CLAMP25-40X13 MM
23
HOSE HEATING RETURN
23
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012682
23
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012682
23
INTERMEDIATE PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012682
35
CLAMP , Replaced By: N000000000667
35
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
36
HOSE FROM HEATING PIPE TO HEATER, RETURN
36
HOSE (HEATING LINE) FROM ENGINE TO HEATER,FEED, 962133 N 000001 P 000001
37
PIPE , Replaced By: A0004291501
37
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
38
CLAMP BRAKE HOSE BRACKET
41
NUT COVERING TO CAB FIRE WALL
42
BRACKET HEATING FEED, N 000001 P 110190
42
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
42
BRACKET , Replaced By: A3604293140
43
SCREW COVER PLATE TO BRACKET
43
SCREW PUMP TO BRACKET
44
WASHER BOOT TO CAB FLOOR
44
WASHER SWITCH TO FIRE WALL
44
WASHER , Replaced By: N000433005304
45
NUT HEATING PIPE TO BRACKET
45
NUT TACHOGRAPH TO BRACKET
46
HOSE FROM PIPE TO HEATER UNIT
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
48
CLAMP , Replaced By: N000000000667
50
HOSE FROM HEATER UNIT TO WATER PUMP
53
HOSE FROM HEATER UNIT TO WATER PUMP
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
CLAMP , Replaced By: N000000000667
59
RUBBER RING
77
HOSE FROM ENGINE TO PUMP
80
PIPE , Replaced By: A0004291501
80
PIPE , Replaced By: A0004291501
80
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
83
HOSE FROM ENGINE TO PUMP
83
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012782
83
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012782
83
INTERMEDIATE PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6685012782
86
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
86
CLAMP , Replaced By: N000000000667
95
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
95
HOSE , Replaced By: N900271018038
95
HOSE , Replaced By: N900271018038
98
VALVE , Replaced By: A0008352872
98
VALVE CHECK VALVE
101
CLAMP , Replaced By: N000000000667
101
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
103
CLAMP FEED AND RETURN
105
SCREW COVER PLATE TO BRACKET
107
WASHER , Replaced By: N000433005304
107
WASHER BOOT TO CAB FLOOR
109
NUT IN CASE OF SUBSEQUENT INSTALLATION
109
NUT , Replaced By: N304032005005
999
HOSE FROM PIPE TO HEATER UNIT
