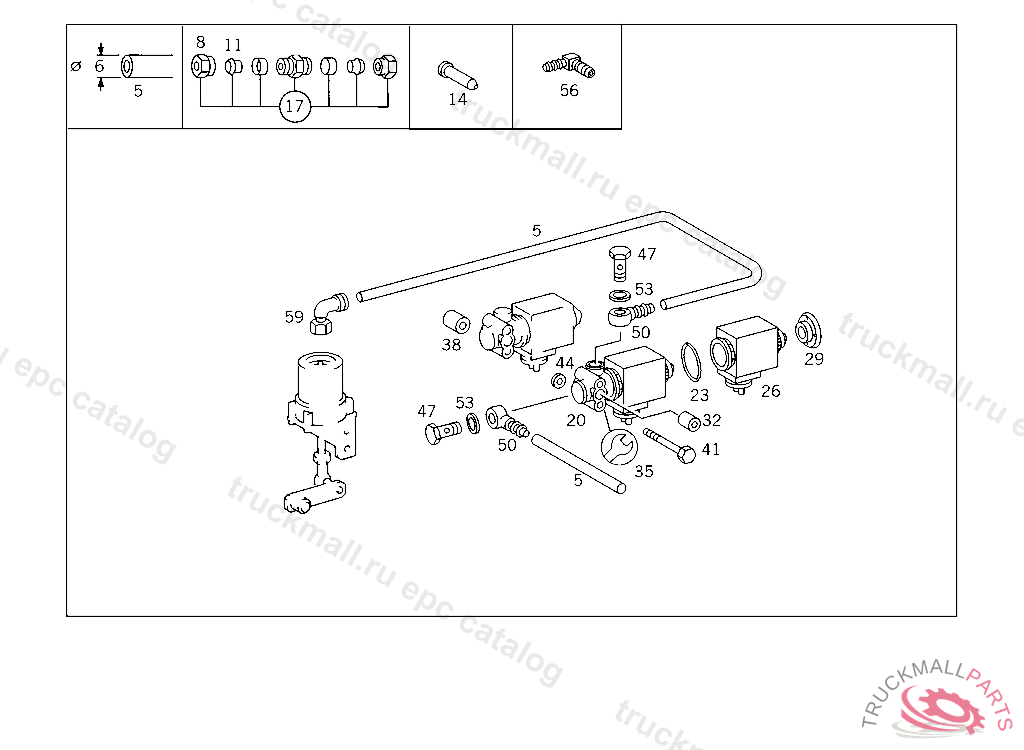

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
HOSE (3/2-WAY SOLENOID VALVE) "3"
8
UNION NUT
11
SEAL CONE
11
GLAND , Replaced By: A0019901667
14
BUSHING COPRESSED AIR LINE TO SHIFTING CYLINDER
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
20
VALVE , Replaced By: A0049975736
20
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
SEAL RINGWABCO
26
VALVE PART
26
VALVETO 003 997 11 36/12 36
29
SCHUTZKAPPE. PROTECTIVE CAP ,5 760168K 154651
32
SEAL RING VALVE TO VALVE
35
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
38
SPACER TUBE VALVE TO VALVE, 826628 N 000001 P 000001
41
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
41
SCREW , Replaced By: N304014008021
44
SPACER WASHER VALVE TO VALVE
47
HOLLOW SCREW HEATING CONNECTION
50
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
53
SEAL RING LINE CONNECTION
56
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
59
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
PIN VALVE TO SIDE MEMBER
999
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
999
THROTTLE VACUUM LINE
