Поз.
Артикул
Описание

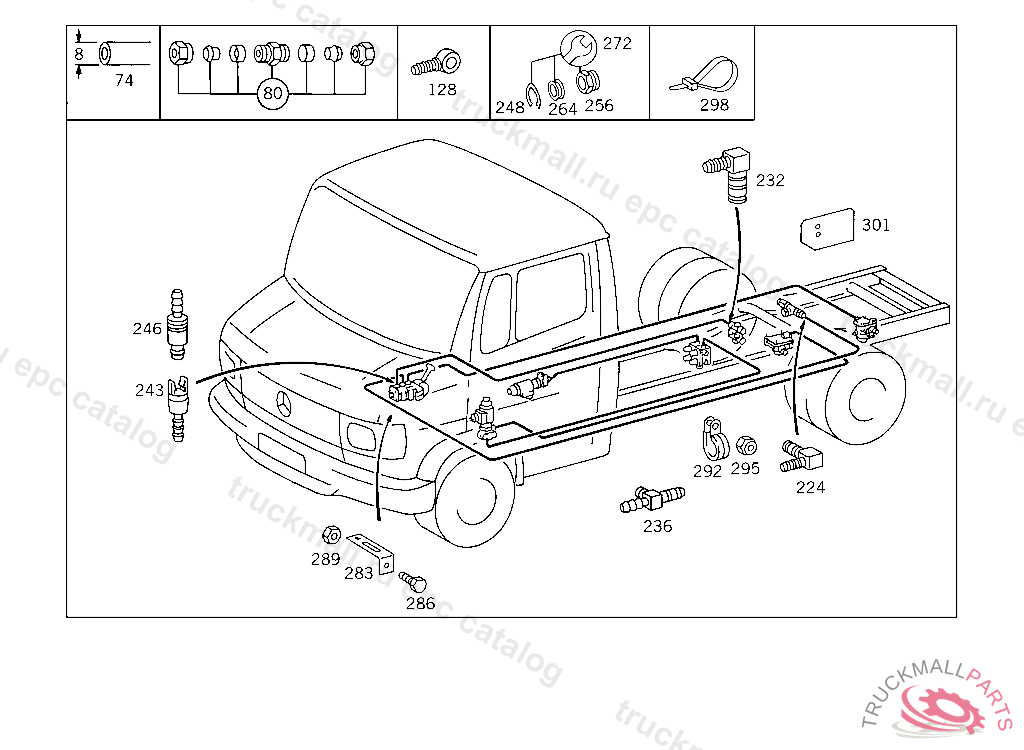

74
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
74
PLASTIC PIPE AERATION, ORDER BY THE METER
80
FITTING (PARTS KIT),LINE RUPTURE
128
BANJO UNION HEATING CONNECTION,K 169122
128
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
128
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
128
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
128
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
128
BANJO UNION , Replaced By: A0009909288
128
BANJO UNION FROM TANK TO PUMP,303383
128
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
224
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
224
ELBOW FITTING , Replaced By: A0049905371
232
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
236
T-FITTING HOSE WIDTH, 9 MM,TO M 22
243
COUPLING COMPRESSED AIR PIPING,YB227219
243
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
246
CONNECTOR , Replaced By: A0029905478
246
PLUG COMPRESSED AIR PIPING,YB227219
248
LOCK , Replaced By: A0009945448
248
LOCK LINE CONNECTION
256
SCREW. UNION SCREW , Replaced By: A0009973734
256
SCREW. UNION SCREW LINE CONNECTION
264
LOCK RING LINE CONNECTION
264
SEAL RING , Replaced By: A0009940747
272
REPAIR KIT , Replaced By: A0309971748
272
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
283
BRACKET LINE MOUNTING
286
SCREW SENSOR TO TRANSMISSION CASE
286
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
289
NUT
289
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
292
CLAMP LINE MOUNTING
292
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
295
NUT HEATING PIPE TO BRACKET
298
LOOM TIE187 MM
298
LOOM TIE , Replaced By: A0049976390
298
LOOM TIE LINE MOUNTING 280 MM
301
ANGLE PROPELLER SHAFT BEARING
