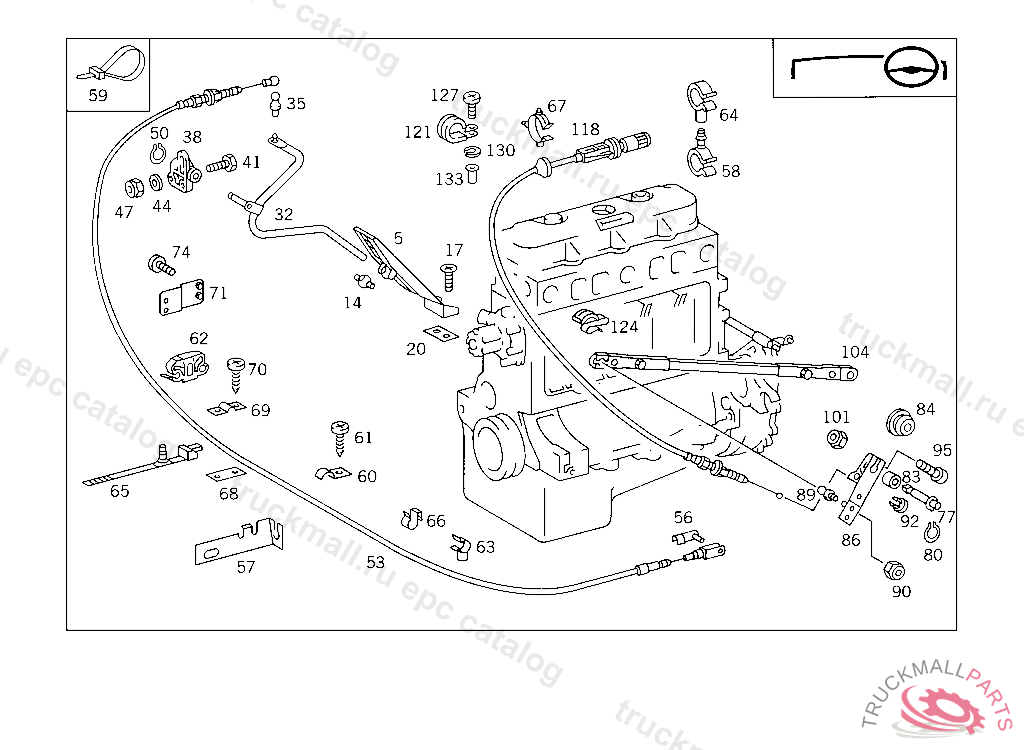

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL ,B 859430
14
JOINT ,B 859430
17
SCREW BRACKET TO TAIL LAMP BRACKET
17
SCREW
20
SHIM PEDAL TO CAB FLOOR
32
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED 791472 N 000000 P 000000, Replaced By: A6673000625, +001A6673010184, +002N000963006031
32
LEVER (PEDAL LEVER),B 859430
32
LEVER (PEDAL LEVER),B 859431B 892892
32
LEVER (PEDAL LEVER)
35
BALL PIVOT ,556500
35
BALL STUD. BALL PIVOT ROD TO LEVER
38
BEARING PEDAL LEVER
38
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
41
SCREW LICENSE PLATE TO BRACKET
44
WASHER SWITCH TO FIRE WALL
47
NUT HEATING PIPE TO BRACKET
50
LOCK RINGTO 000 553 37 01,000 553 39 01,
53
WIRE CABLE FROM PEDAL LEVER TO CONTROL LEVER,037272
53
WIRE CABLE FROM PEDAL LEVER TO CONTROL LEVER, N 000001 P 033406
53
WIRE CABLE , N 000000 P 033405, Replaced By: A6673000730, +001A0009942148, +002A0009951765, +001A1239950265, +001A6679950065
56
PIN WIRE CABLE TO LEVER
57
BEARING WIRE CABLE TO RADIATOR,037272
58
CLAMP. EXTENDABLE SPACER BREATHER LINE
58
CLAMP , Replaced By: A0009956665
58
BRACKET OIL LINES
59
LOOM TIE LINE MOUNTING 280 MM
60
CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
60
CLAMP , Replaced By: A1279950020
61
SHEET METAL SCREW , Replaced By: N000000002062
61
SCREW
62
CLAMP6/14-15 MM
63
CLAMP ELECTRIC CABLE TO BRAKE HOSE
63
CLAMP. EXTENDABLE SPACER BREATHER LINE
63
BRACKET OIL LINES
64
BRACKET LINE MOUNTING 11 MM
64
CLAMP LINE MOUNTING
65
LOOM TIE CONTROL CABLE ON CYLINDER, N 010572 P 261237
66
LOCK WIRE CABLE TO AIR DUCT, N 000001 P 033406
67
CLAMP WIRE CABLE TO COOLING WATER HOSE, N 000001 P 033406
68
SHIM ,B 892892
69
CLAMP
70
SHEET METAL SCREW BRACKET TO FLOOR PLATE
70
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
70
SHEET METAL SCREW , Replaced By: N007981004233
71
BRACKET WIRE CABLE, 898163 N 000000 P 000000
74
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
77
SHAFT CONTROL LEVER
80
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
83
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
84
EXPANSION PLUG WHEELHOUSES, REAR FENDERS
86
LEVER ,B 892892
89
BALL STUD. BALL PIVOT ROD TO LEVER
89
BALL PIVOT
90
NUT TWO-WAY VALVE TO BRACKET
92
BUSHING CONTROL LEVER,B 892892
95
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
101
NUT HEATING PIPE TO BRACKET
104
ROD ,037271
118
WIRE CABLE IDLING ADJUSTER,037272
118
WIRE CABLE IDLING ADJUSTER, 962132 N 000000 P 000000
118
WIRE CABLE IDLING ADJUSTER, 962132 N 000000 P 000000
121
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
121
CLAMP , Replaced By: N916016008200
121
CLAMP ,K 147121, Replaced By: N000000000319
124
CLIP CABLE HARNESS TO ROOF RAIL
127
SCREW CLAMP TO BRACKET
127
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
130
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
133
RIVET NUT. RIVETED NUT GRIP RAIL MOUNTING
999
WASHER WIRE CABLE TO FIRE WALL
