Поз.
Артикул
Описание

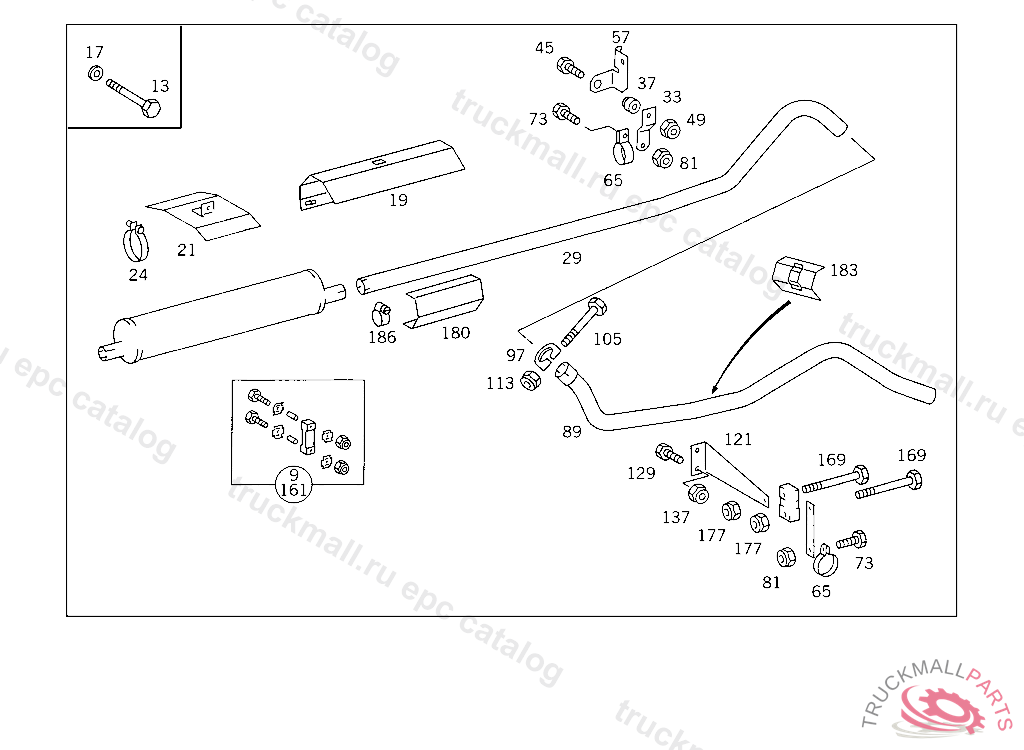

9
SUSPENSION EXHAUST MUFFLER TO BRACKET
13
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
13
SCREW , Replaced By: N304014008001
17
WASHER , Replaced By: A3129901940
17
WASHER
19
PROTECTIVE PLATE EXHAUST MUFFLER
21
PROTECTIVE PLATE EXHAUST MUFFLER
24
CLAMP AT MUFFLER
24
CLAMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A4059950001
24
CLAMP SCREENING PLATE TO MUFFLER
29
REAR EXHAUST PIPE REAR LEFT
29
REAR EXHAUST PIPE , Replaced By: A6684923504
29
REAR EXHAUST PIPE FRONT PART, TO BE ADAPTED DURING ASSEMBLY
29
REAR EXHAUST PIPE REAR LEFT
33
BRACKET REAR EXHAUST PIPE FRONT PART TO BRACKET ON SHOCK ABSORBER CROSS MEMBER
37
DAMPING PAD REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,352291
45
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
49
NUT STRAP TO BRACKET
57
BRACKET REAR EXHAUST PIPE FRONT PART TO BRACKET ON SHOCK ABSORBER CROSS MEMBER, 813315 N 000001 P 000001
57
BRACKET , Replaced By: A6684926541
65
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
73
SCREW CONNECTOR TO REAR SHIFTING ROD
81
NUT CROSS MEMBER TO SIDE MEMBERS
89
REAR EXHAUST PIPE (TAIL PIPE)
97
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
105
SCREWM X 110
113
HEXAGON NUT SCREENING PLATE,5 163561
113
NUT , Replaced By: A1201420072
121
BRACKET REAR EXHAUST PIPE TO FRAME
129
SCREW BRACKET TO CONSOLE
137
NUT CROSS MEMBER TO SIDE MEMBERS
161
SUSPENSION EXHAUST MUFFLER TO BRACKET
161
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
161
SPACER TUBE FRONT EXHAUST PIPE,B 884219
161
DAMPING PAD , Replaced By: A6674900037
169
SCREW AT SHIFT LEVER M 8 X 45,P 234011
177
NUT STRAP TO BRACKET
180
PROTECTIVE PLATE AT EXHAUST PIPE
183
PROTECTIVE PLATE AT EXHAUST PIPE
186
CLAMP HOSE TO RETARDER 60-80X13 MM
186
CLAMP (DRY FILTER)
999
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER, FROM IDENT NO. 352291 ALSO INSTALLED ON 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. EXCEPT FOR 352759,353163,353868,354161.
999
BRACKET REAR EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE
