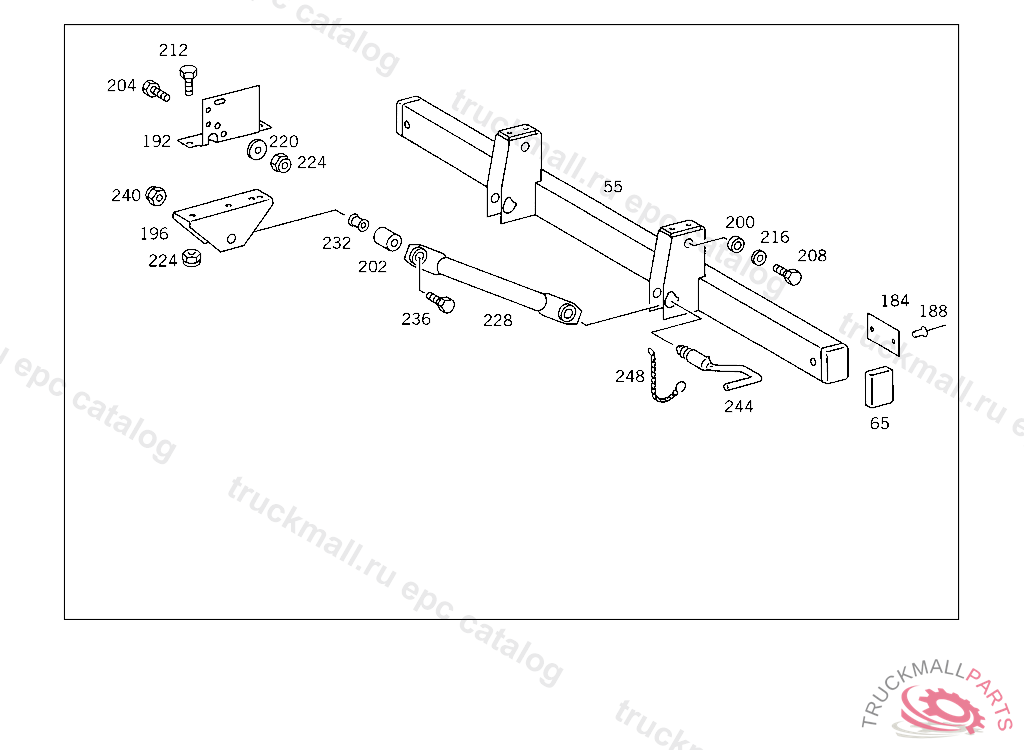

Поз.
Артикул
Описание
55
BUMPER UNDERRUN PROTECTION
65
CAP
184
REFLECTOR
184
REFLECTOR
184
REFLECTOR , Replaced By: A0005444405
188
RIVET REFLECTOR TO BUMPER,K 062690
192
ANGLE AT LEFT SIDE MEMBER
192
ANGLE AT RIGHT SIDE MEMBER
196
BRACKET AT LEFT SIDE MEMBER
196
BRACKET AT RIGHT SIDE MEMBER
200
HUB UNDERRUN PROTECTION TO BRACKET
202
SPACER TUBE SHOCK ABSORBER TO RAIL
204
SCREW STRUT TO CROSS MEMBER M 10X25
208
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
208
SCREW CONNECTOR TO REAR SHIFTING ROD
212
HEXAGON HEAD BOLT BRACKET TO BRACKET
216
WASHER RADIATOR TO RUBBER MOUNTING
220
WASHER RADIATOR TO RUBBER MOUNTING
220
WASHER BRACKET TO CROSS MEMBER, UP TO CHASSIS A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
220
TOOTHED WASHER
224
NUT CROSS MEMBER TO SIDE MEMBERS
224
NUT STRAP TO BRACKET
228
STAY UNDERRUN PROTECTION AND BRACKET TO FRAME
232
BEARING SHACKLE TO FRAME
236
SCREW STRUT TO SUPPORT
240
NUT INTERMEDIATE PIECE TO SUPPORT
244
COUPLING PIN STRUT TO UNDERRUN PROTECTION
248
FASTENER COUPLING PIN
248
FASTENER TO SECURE PIN
