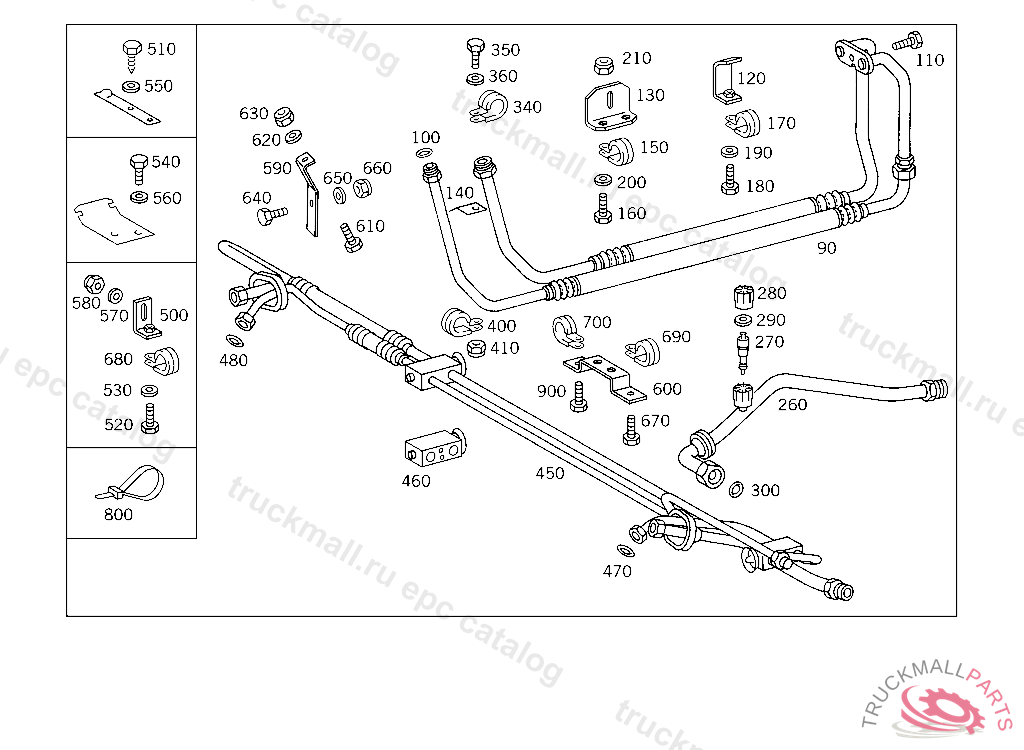

Поз.
Артикул
Описание
90
LINE COMPRESSOR
90
LINE COMPRESSOR, N 000001 P 003214
100
SEAL RING HOSE TO CONDENSER 14 MM
100
SEAL RING , Replaced By: A1409970845
110
SCREW CABLE HARNESS MOUNTING
120
BRACKET REFRIGERANT LINE
130
BRACKET , Replaced By: A6745240410
130
MOUNTING ANGLE , Replaced By: A6745240610
130
MOUNTING ANGLE ANTINOISE CAPSULE
140
BRACKET REFRIGERANT LINE
150
CLAMP HOSE TO SUPPORT,5 385342
160
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
170
CLAMP HOSE TO BRACKET 25/20,5 206397
180
SCREW COVER PLATE TO COVER PLATE M 6 X 12
190
WASHER SWITCH TO FIRE WALL
200
WASHER EXHAUST MUFFLER TO STRAP
210
NUT STRAP TO BRACKET
260
LINE BETWEEN THE LINES
260
LINE BETWEEN THE LINES
270
VALVE INSERT , NOT USED
280
CAP , Replaced By: A2019880635
280
CAP (PARTS KIT),CAP
290
SEAL RING , Replaced By: A1238320033
300
SEAL RING , Replaced By: A1249970345
300
SEAL RING , Replaced By: A1409970945
300
O-RING HOSE TO EXPANSION VALVE 17X2
340
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
350
SCREW COVER PLATE TO COVER PLATE M 6 X 12
360
WASHER SWITCH TO FIRE WALL
400
CLAMP HOSE TO FLANGE AND TO VALVE
410
NUT HEATING PIPE TO BRACKET
450
LINE (GROUP OF PIPES)
450
LINE AIR BAFFLE
460
VALVE (EXPANSION VALVE)
470
SEAL RING HOSE TO RESERVOIR 10.6 MM
480
SEAL RING HOSE TO CONDENSER 14 MM
480
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
480
SEAL RING FROM LIQUID TANK TO T-FITTING
480
O-RING HOSE TO EXPANSION VALVE 17X2
480
SEAL RING , Replaced By: A1249970345
480
SEAL RING , Replaced By: A1409970645
500
BRACKET LINE MOUNTING
510
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
510
SHEET METAL SCREW ALARM UNIT TO STRUT
520
SCREW COVER PLATE TO COVER PLATE M 6 X 12
530
WASHER COMPRESSED AIR LINE TO BRACKET
530
WASHER , Replaced By: N009021006208
540
SCREW LICENSE PLATE TO BRACKET
550
WASHER , Replaced By: N000433005304
550
WASHER BOOT TO CAB FLOOR
560
WASHER SWITCH TO FIRE WALL
570
WASHER SWITCH TO FIRE WALL
580
NUT HEATING PIPE TO BRACKET
590
BRACKET REFRIGERANT LINE
600
BRACKET REFRIGERANT LINE
610
SCREW CABLE HARNESS MOUNTING
620
WASHER EXHAUST MUFFLER TO STRAP
630
NUT STRAP TO BRACKET
640
SCREW COVER PLATE TO COVER PLATE M 6 X 12
650
WASHER SWITCH TO FIRE WALL
660
NUT HEATING PIPE TO BRACKET
670
SCREW CABLE HARNESS MOUNTING
680
CLAMP BRAKE HOSE BRACKET
690
CLAMP STAY TO BRACKET
700
CLAMP HOSE TO BRACKET 25/20,5 206397
700
CLAMP LINE MOUNTING
800
LOOM TIE LINE MOUNTING
900
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
LINE COMPRESSOR, N 000000 P 126135
999
HOSE PIPE LINE TO CONDENSER, N 000000 P 126135
999
BRACKET CAB FLOOR
999
BRACKET REFRIGERANT LINE
