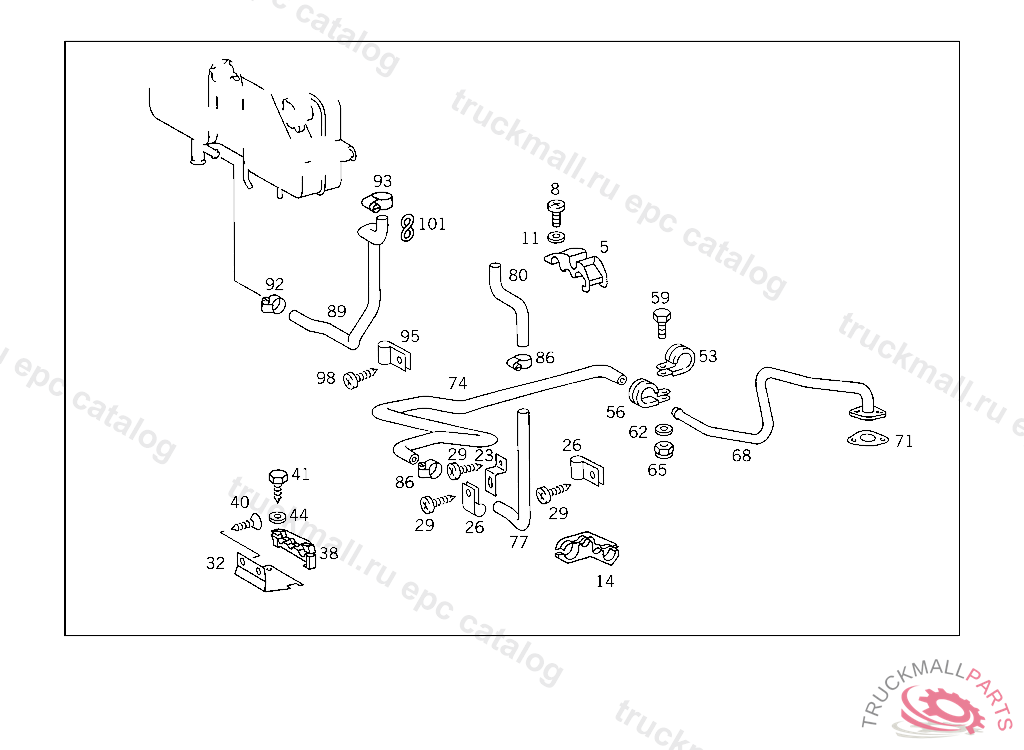

Поз.
Артикул
Описание
5
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 509582
5
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 509581
8
SCREW OIL FILLER NECK TO BRACKET,5 458408
11
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
14
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET
23
BRACKET COOLING WATER LINE TO FIRE WALL
26
CLAMP FEED LINE TO THERMOSTAT
29
SHEET METAL SCREW BRACKET TO CAB
32
BRACKET HOSE TO FIRE WALL
38
BRACKET HOSE TO FIRE WALL
40
SHEET METAL SCREW BRACKET TO CAB,5 906887
41
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
44
WASHER COVER PLATE TO COVER PLATE
53
CLAMP , Replaced By: N000000001045
53
CLAMP , Replaced By: N916016010211
53
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
53
CLAMP CABLE HARNESS MOUNTING
56
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
56
CLAMP BRAKE HOSE BRACKET
59
SCREW , Replaced By: N304017008034
59
SCREW OIL LINE TO CRANKCASE
59
SCREW BRACKET TO CROSS CONNECTION STRUT
62
WASHER , Replaced By: N000125008443
62
WASHER EXHAUST MUFFLER TO STRAP
62
WASHER COMPRESSED AIR LINE TO BRACKET
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
NUT , Replaced By: N913004006001
65
NUT PUMP TO BRACKET
65
NUT , Replaced By: N913004008001
68
PIPE SOCKET (HEATING LINE),FROM ENGINE TO HEATER
71
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
74
HOSE (HEATING LINE),FROM ENGINE TO HEATER
77
PIPE (HEATING LINE),FROM ENGINE TO HEATER
80
HOSE (HEATING LINE),FROM ENGINE TO HEATER
86
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
86
CLAMP , Replaced By: N000000000667
86
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
86
CLAMP HOSE TO FITTING AND TO OIL TANK
89
HOSE (HEATING LINE) FROM EXPANSION TANK TO HEATER
92
CLAMP , Replaced By: N000000000667
92
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
93
CLAMP HOSE TO FITTING AND TO OIL TANK
93
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
95
CLAMP HOSE TO FIRE WALL
98
SHEET METAL SCREW HOSE TO FIRE WALL
101
SEAL RING BRAKE HOSE
999
SHIM COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 306211
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6735010620
