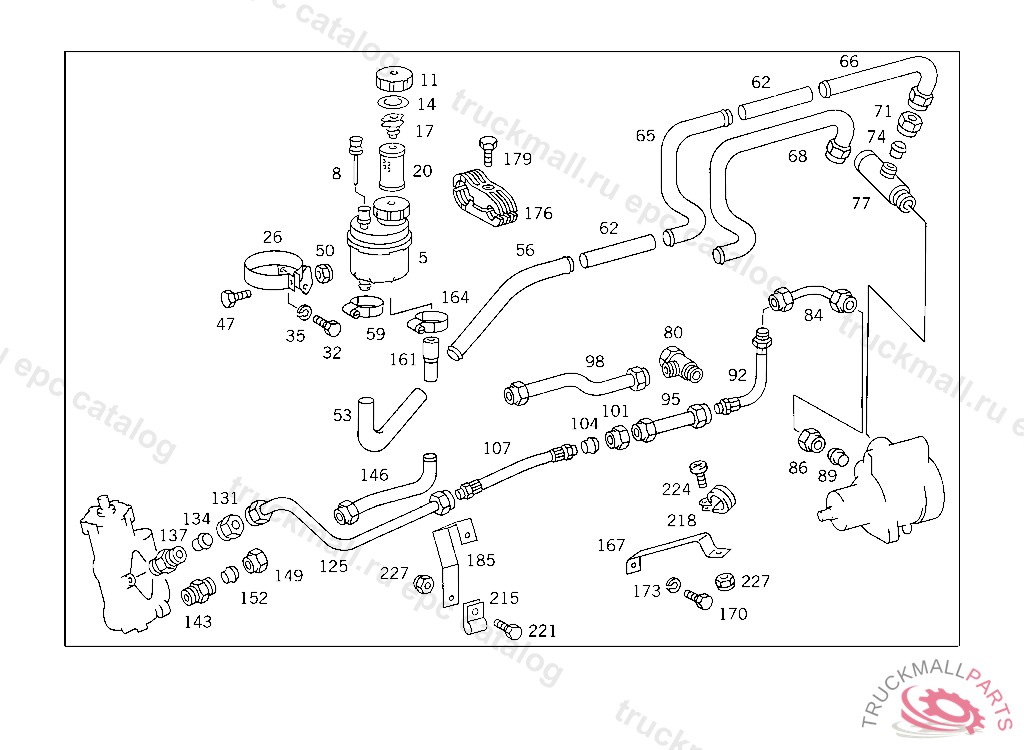

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
26
BRACKET OIL TANK,5 094745
26
BRACKET OIL TANK,5 094744
32
SCREW CENTRAL LOCK TO CAB M 10X16
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
47
SCREW OIL TANK TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
53
HOSE ,K 055044
56
LINE , Replaced By: A0004291601
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
56
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
59
CLAMP , Replaced By: N000000000667
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
HOSE , Replaced By: A3859971582
62
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
65
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163365
66
LINE , Replaced By: A6734600488
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
68
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
68
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
71
UNION NUT LINE CONNECTION, Replaced By: N000000006243
71
NUT LINE CONNECTION
74
SEAL CONE LINE CONNECTION
74
GLAND , Replaced By: A0019901267
77
FITTING SUCTION LINE TO OIL PUMP
77
ELBOW FITTING SUCTION LINE TO OIL PUMP
80
FITTING DELIVERY LINE TO PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
84
PIPE (DELIVERY LINE),FROM PUMP TO STEERING,5 542691
86
UNION NUT LINE CONNECTION
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
SEAL CONE LINE CONNECTION
89
GLAND , Replaced By: A0019901967
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
95
LINE , Replaced By: A6734600188
95
LINE FROM HIGH PRESSURE HOSE TO HIGH PRESSURE HOSE,5 163365
98
LINE12 MM, ORDER BY THE METER4 691315
98
LINE , Replaced By: A0005516156
98
TUBE FROM HIGH PRESSURE HOSE TO STEERING
98
LINE , Replaced By: A0004291001
101
UNION NUT LINE CONNECTION
101
UNION NUT LINE CONNECTION, Replaced By: N000000006239
104
GLAND , Replaced By: A0019901967
104
SEAL CONE LINE CONNECTION
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138294
125
LINE , Replaced By: A6734600288
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
131
NUT. UNION NUT LINE CONNECTION
134
CUTTING RING. GLAND LINE CONNECTION
137
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
143
SCREW-IN FITTING DELIVERY LINE TO PUMP
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 138293
146
LINE , Replaced By: A6734600388
146
LINE , Replaced By: A0004291001
146
LINE12 MM, ORDER BY THE METER4 691315
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
149
UNION NUT LINE CONNECTION
152
GLAND , Replaced By: A0019901967
152
SEAL CONE LINE CONNECTION
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
167
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6734660940
167
BRACKET DELIVERY AND SUCTION LINES
170
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
170
SCREW , Replaced By: N304017010028
173
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
176
BRACKET DELIVERY AND SUCTION LINES
179
SCREW DISTRIBUTOR TO CAB
185
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
CLAMP LINE MOUNTING
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
218
CLAMP , Replaced By: N916016010211
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME
218
CLAMP CABLE HARNESS MOUNTING
218
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
218
CLAMP , Replaced By: N000000001045
221
SCREW COVER PLATE TO BRACKET
224
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
227
NUT PUMP TO BRACKET
227
NUT , Replaced By: N913004006001
999
NUT SUCTION LINE TO OIL PUMP
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 051606
999
LINE (DELIVERY LINE) FROM FITTING TO STEERING
999
BRACKET LINE MOUNTING,5 220227
999
PROTECTIVE CAP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
THRUST RING SUCTION LINE TO OIL PUMP
