Поз.
Артикул
Описание

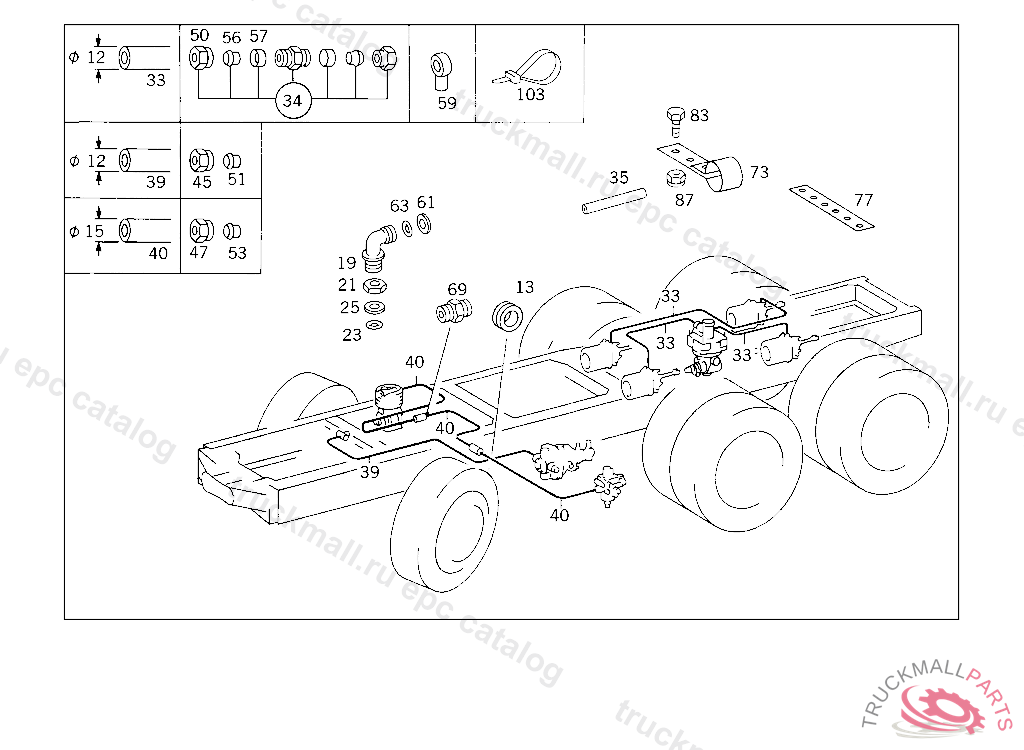

13
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
13
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
19
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
21
NUT SUCTION LINE TO OIL PUMP
23
SEAL RING LINE CONNECTION
25
THRUST RING SUCTION LINE TO OIL PUMP
33
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
33
HOSE , Replaced By: A0009872827
34
FITTING (PARTS KIT),LINE RUPTURE
35
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
39
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
40
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
40
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
40
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
40
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
45
UNION NUT LINE CONNECTION
45
UNION NUT LINE CONNECTION, Replaced By: N000000006239
47
UNION NUT BUTT SCREW CONNECTION
47
UNION NUT LINE CONNECTION
50
UNION NUT LINE CONNECTION
51
SEAL CONE LINE CONNECTION
51
GLAND , Replaced By: A0019901967
53
GLAND LINE CONNECTION
56
GLAND LINE CONNECTION
56
THRUST RING SUCTION LINE TO OIL PUMP
57
SLEEVE LINE CONNECTION
57
SLEEVE LINE CONNECTION
59
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
61
THRUST RING BUTT SCREW CONNECTION
63
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
63
SEAL RING , Replaced By: N007603012121
69
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
73
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
77
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
83
SCREW PIPE CLAMP
83
SCREW , Replaced By: N304017008021
87
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
87
NUT , Replaced By: N913004008001
103
LOOM TIE LINE MOUNTING 280 MM
103
LOOM TIE LINE MOUNTING
999
REPAIR KITKNORR 010 420 73 18
999
REPAIR KIT , Replaced By: A0024209524, +002A0024209424
999
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
999
DIAPHRAGM , Replaced By: A0004314128
999
DIAPHRAGM , Replaced By: A0004314128
999
DIAPHRAGMBOSCH, Replaced By: A0004314028
999
RESERVOIR , Replaced By: A0014327501
999
ELBOW FITTING , Replaced By: A0019904371
999
VALVE , Replaced By: A0044293144
999
REPAIR KIT , Replaced By: A0044201724, +002A0044201324
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
VALVE , Replaced By: A0044293144
999
VALVE , Replaced By: A0044293244
999
REPAIR KIT , Replaced By: A0024301560
999
VALVE , Replaced By: A0044293244
999
VALVE , Replaced By: A0044293144
999
FITTING , Replaced By: A0029905971
999
FITTING , Replaced By: A0029906171
999
SEAL RING , Replaced By: A0179979048
999
BRACKET , Replaced By: A6514310240
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
STRAP , Replaced By: A6214900242
999
BRACKET , Replaced By: A6164290140
999
BRACKET , Replaced By: A3604293140
999
STRAP , Replaced By: A6204300040
999
T-FITTING ,5 936365, Replaced By: A0029902570
999
FITTING , Replaced By: A0029979572
999
FITTING , Replaced By: A0029971172
