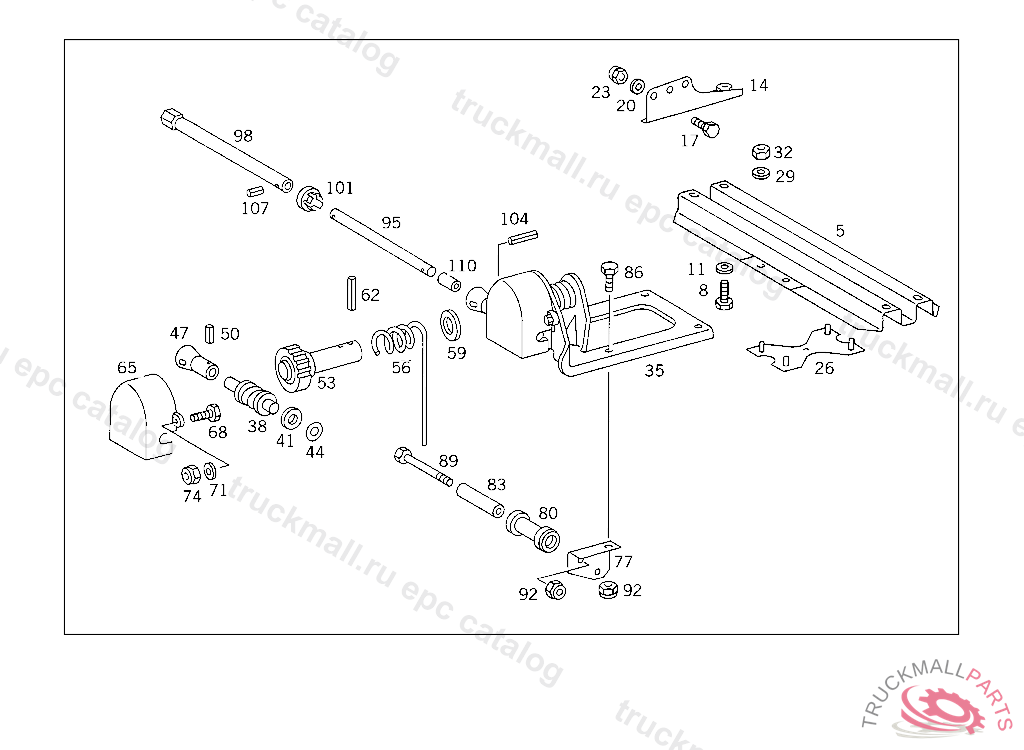

Поз.
Артикул
Описание
5
BRACKET
8
SCREW SUPPORT TO SPARE WHEEL CARRIER,5 207473
8
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
11
WASHER BRACKET TO FRAME
14
BRACKET SPARE WHEEL MOUNTING,RIGHT
14
BRACKET SPARE WHEEL MOUNTING,LEFT
17
SCREW BRACKET TO SIDE MEMBER
20
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
23
NUT BRACKET TO SIDE MEMBER
26
STAY ,5 365761
29
WASHER BRACKET TO FRAME
32
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
35
SPARE WHEEL HOIST
35
SPARE WHEEL HOIST , Replaced By: A6734001339
38
WORM
47
BUSHING ,K 156667
50
CLAMPING SLEEVE CRANK TO BUSHING
53
STOP GEAR ,5 127460
56
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
56
WIRE CABLE
59
WASHER WORM AND SHAFT TO BRACKET
62
CLAMPING PIN BRACKET TO SUPPORT
65
COVERING PROTECTION PLATE TO BRACKET
68
SCREW COVER PLATE TO BRACKET
71
WASHER COMPRESSED AIR LINE TO BRACKET
74
NUT PUMP TO BRACKET
77
ANGLE LEFT
77
ANGLE RIGHT
80
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
83
TUBE SPARE WHEEL HOIST TO CROSS MEMBER
86
SCREW END PIECE TO EXHAUST PIPE M 10X25
86
SCREW END PIECE TO EXHAUST PIPE M 10X25
89
SCREW SPARE WHEEL HOIST TO CROSS MEMBER M 10X120
92
NUT STRAP TO BRACKET
95
PIPE
98
SHAFT
101
BUSHING CRANK
104
CLAMPING SLEEVE TUBE AND SHAFT TO JOINT SLEEVE
107
CLAMPING SLEEVE TUBE AND SHAFT TO JOINT SLEEVE 6X22
