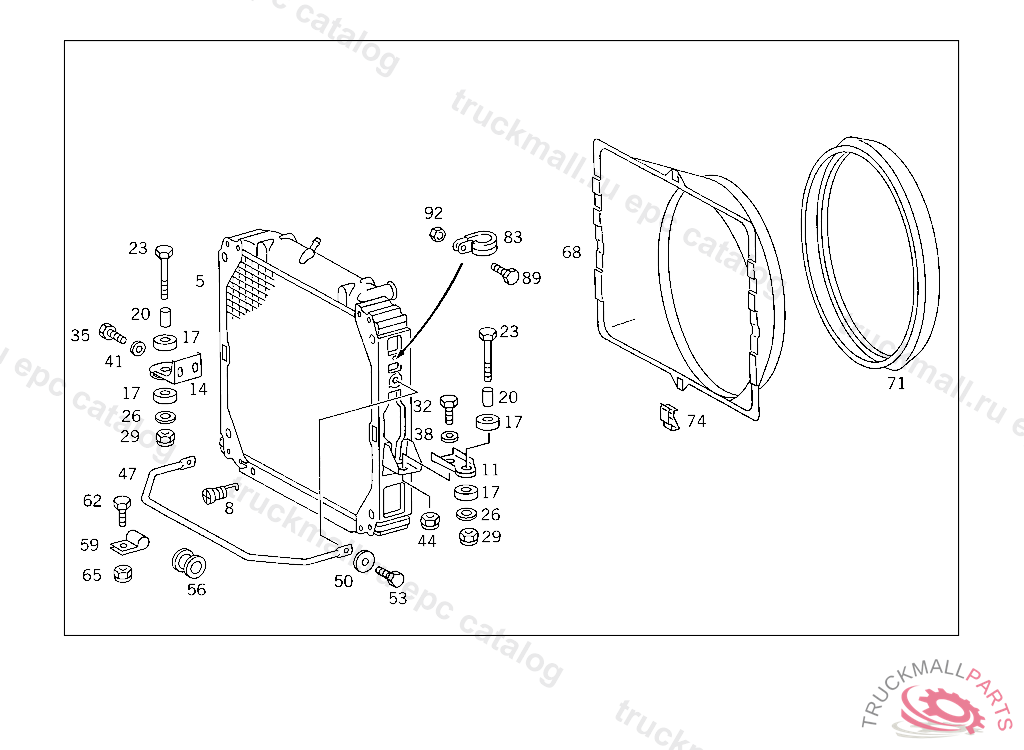

Поз.
Артикул
Описание
5
RADIATOR WATER
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT STRAP TO BRACKET
29
NUT , Replaced By: N910113010000
32
SCREW , Replaced By: N308676012038
32
SCREW BRACKET TO TRANSMISSION
35
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
35
SCREW RIGHT SUPPORT TO RADIATOR,K 142907
38
WASHER COVER PLATE TO FRAME
41
WASHER RADIATOR TO RUBBER MOUNTING
41
WASHER , Replaced By: N000125010532
44
NUT SUPPORT TO SIDE MEMBER
47
CLAMP RADIATOR
50
WASHER BRACKET TO CAB REAR PANEL
50
WASHER , Replaced By: N009021008213
50
WASHER BRACKET TO LEFT SIDE MEMBER
53
SCREW CLAMP TO RADIADOR
56
RUBBER MOUNTING BRACKET TO CROSS MEMBER
59
CLAMP BRACKET TO CROSS MEMBER
62
SCREW PIPE CLAMP
62
SCREW , Replaced By: N304017008021
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
NUT , Replaced By: N913004008001
65
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
AIR BAFFLE , Replaced By: A6775050330
68
AIR BAFFLE
71
BOOT FAN SHROUD TO FAN RING
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
83
CLAMP OIL DIPSTICK TO RADIATOR
89
SCREW PIPE CLAMP
89
SCREW , Replaced By: N304017008021
