Поз.
Артикул
Описание

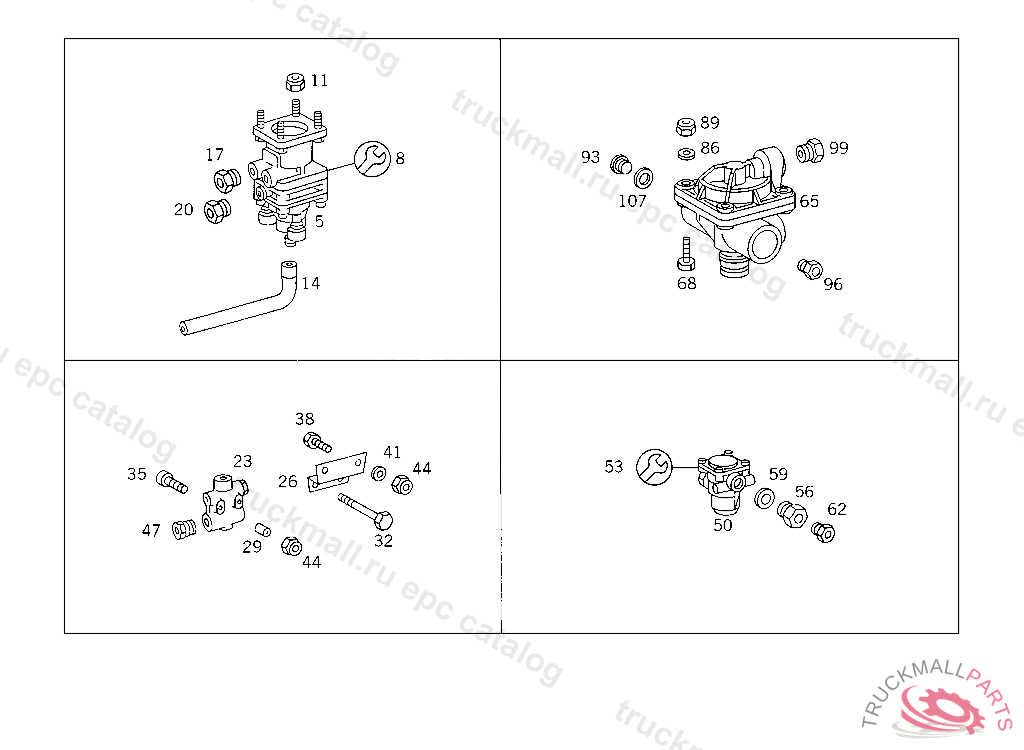

5
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVEKNORR
5
BRAKE VALVEWABCO
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH
8
REPAIR KITWABCO
8
REPAIR KIT , Replaced By: A0004308306
11
NUT , Replaced By: N913004008001
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
SCREW. UNION SCREW LINE CONNECTION
23
DISTRIBUTOR LESS CHECK VALVE
29
GUIDE BUSHING TWO-WAY VALVE TO FRAME
35
SCREW DISTRIBUTOR TO FRAME SIDE MEMBER
44
NUT , Replaced By: N913004008001
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
SCREW. UNION SCREW LINE CONNECTION
65
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
65
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
68
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
68
SCREW , Replaced By: N304017008040
68
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
68
SCREW BRACKET TO SIDE MEMBER
86
WASHER EXHAUST MUFFLER TO STRAP
86
WASHER , Replaced By: N000125008443
89
NUT , Replaced By: N913004008001
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
93
SCREW PLUG , Replaced By: N000908022011
93
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
96
SCREW. UNION SCREW LINE CONNECTION
99
SCREW. UNION SCREW LINE CONNECTION
99
SCREW. UNION SCREW , Replaced By: A0009973734
107
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
