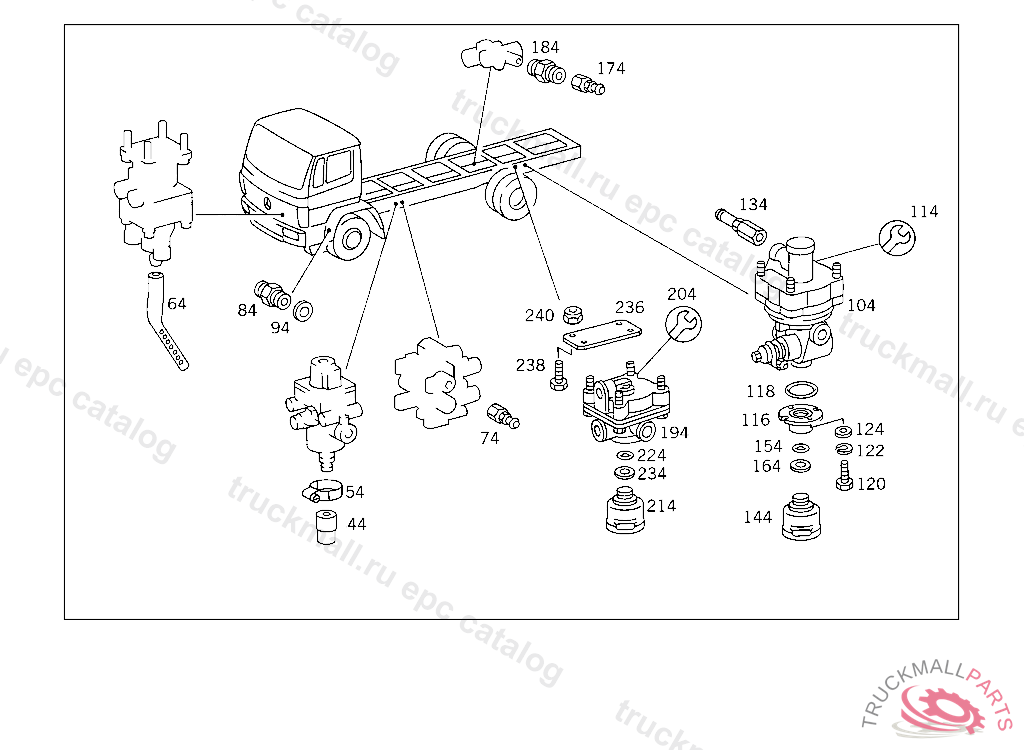

Поз.
Артикул
Описание
44
MUFFLER PRESSURE REGULATOR BREATHING
54
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
54
CLAMP25-40X13 MM
64
BREATHER PIPE BRAKE VALVE BLEEDING
74
TEST CONNECTION
74
TEST CONNECTION
84
FITTING , Replaced By: A0029975872
84
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
84
FITTING CONNECTION TO STOP LIGHT SWITCH
94
SEAL RING LINE CONNECTION
104
BRAKE PRESSURE REGULATOR AUTOMATIC
114
REPAIR KIT BRAKE POWER REGULATOR WABCO
116
ADAPTER FITTING BRAKE POWER REGULATOR
118
SEALING CORD BRAKE POWER REGULATOR
120
SCREW COVER PLATE TO BRACKET
122
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
124
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
134
TEST CONNECTION
134
TEST CONNECTION
144
MUFFLER , Replaced By: A0004302370
144
MUFFLER TRAILER CONTROL VALVE
144
MUFFLER TRAILER CONTROL VALVE
144
MUFFLER VALVE BLEEDING
144
MUFFLER VALVE BLEEDING
144
MUFFLER VALVE BLEEDING
144
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
144
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
144
MUFFLER , Replaced By: A0004302470
154
O-RING CHECK VALVE TO AIR RESERVOIR
164
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
164
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
164
THRUST RING CHECK VALVE TO AIR RESERVOIR
174
TEST CONNECTION
184
FITTING CONNECTION TO STOP LIGHT SWITCH
184
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
184
FITTING , Replaced By: A0029975872
194
VALVE FRONT AXLES I AND II "WABCO"
194
VALVE FRONT AXLES I AND II "WABCO"
204
REPAIR KIT RELAY VALVE WABCO
214
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
214
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
214
MUFFLER TRAILER CONTROL VALVE
214
MUFFLER TRAILER CONTROL VALVE
214
MUFFLER , Replaced By: A0004302370
214
MUFFLER VALVE BLEEDING
214
MUFFLER VALVE BLEEDING
214
MUFFLER VALVE BLEEDING
214
MUFFLER VALVE BLEEDING
214
MUFFLER , Replaced By: A0004302470
224
O-RING CHECK VALVE TO AIR RESERVOIR
234
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
236
BRACKET BRACKET TO CONSOLE
238
SCREW , Replaced By: N304017008021
238
SCREW PIPE CLAMP
240
NUT , Replaced By: N913004008001
999
VALVE (RELAY VALVE) GRAU
999
VALVE (RELAY VALVE) BOSCH
999
VALVE (RELAY VALVE) KNORR
999
HOSE BRAKE VALVE,CONNECTION: "30"
