1317 676.339

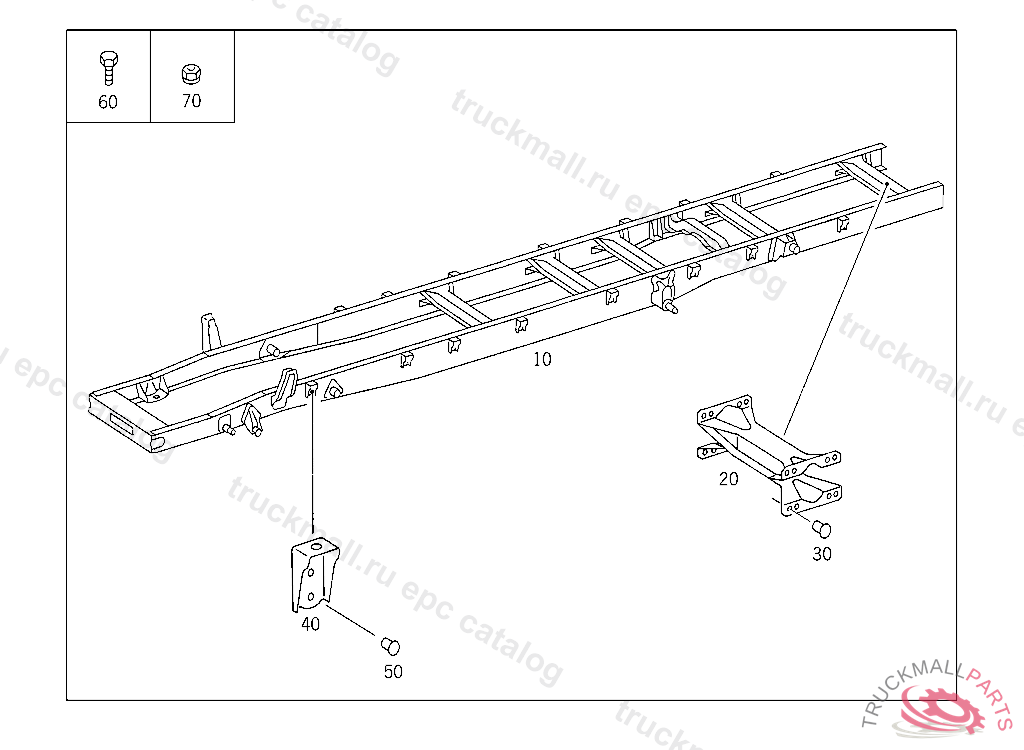

31 FRAME - 300 CAB SUSPENSION,REAR IL. 2

Поз.
Артикул
Описание
10
A6763104302
FRAME
10
A6763105602
FRAME
10
A6763105902
FRAME
10
A6733108101
FRAME
10
A6763106802
FRAME
10
A6763108402
FRAME
10
A6763108202
FRAME
10
A6763107902
FRAME
10
A6763106402
FRAME
10
A6733108001
FRAME
10
A6743102003
FRAME
10
A6763106302
FRAME
10
A6743102503
FRAME
10
A6763105302
FRAME
10
A6763104702
FRAME
10
A6743101903
FRAME
10
A6763107502
FRAME
10
A6763104602
FRAME
10
A6763105702
FRAME
10
A6733109001
FRAME
10
A6763109002
FRAME
10
A6763104202
FRAME
10
A6763105502
FRAME
10
A6763105002
FRAME
10
A6763107302
FRAME
10
A6733108901
FRAME
10
A6763105102
FRAME
10
A6763106002
FRAME
10
A6763105202
FRAME
10
A6743102803
FRAME
10
A6763107802
FRAME
10
A6763109102
FRAME
10
A6763108002
FRAME
10
A6743102303
FRAME
10
A6763105802
FRAME
10
A6763106202
FRAME
10
A6743101703
FRAME , STATE IDENT NO. WHEN ORDERING
10
A6763104502
FRAME
10
A6743102403
FRAME
10
A6733109101
FRAME
10
A6763106502
FRAME
10
A6763107202
FRAME
10
A6743102703
FRAME
10
A6763108302
FRAME
10
A6763104402
FRAME
10
A6763106902
FRAME
10
A6763106602
FRAME
10
A6743102603
FRAME
10
A6733108301
FRAME
10
A6763105402
FRAME
10
A6763107102
FRAME
10
A6733108401
FRAME
10
A6763104002
FRAME
10
A6763103902
FRAME
10
A6763106102
FRAME
10
A6763108802
FRAME
10
A6763107402
FRAME
10
A6763104902
FRAME
10
A6763106702
FRAME
10
A6763104802
FRAME
20
A6753100137
CROSS MEMBER SPARE WHEEL CARRIER, TO BE ADAPTED DURING ASSEMBLY
30
N910005010084
RIVET CONSOLE TO SIDE MEMBER 10X26 MM
30
N910005010085
RIVET10X28 MM, TO BE ADAPTED DURING ASSEMBLY
30
N910005014049
RIVET SUPPORT TO SIDE MEMBER 14X30
30
N910005014048
RIVET14X28 MM
30
N910005010086
RIVET CROSS MEMBER TO SIDE MEMBERS 10X30 MM, TO BE ADAPTED DURING ASSEMBLY
40
A6733171101
CONSOLE BODY MOUNTING
50
N910005010084
RIVET CONSOLE TO SIDE MEMBER 10X26 MM
60
N308676014020
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
60
N000961014050
SCREW , Replaced By: N308676014020
70
N913004014002
NUT , Replaced By: N910113014001
70
N910113014001
NUT BRACKET TO SIDE MEMBER
999
A6733108501
FRAME
999
A6733108601
FRAME
999
A6743101803
FRAME
999
A6743102103
FRAME
999
A6743102203
FRAME
999
A6763104102
FRAME
999
A6763108101
FRAME
